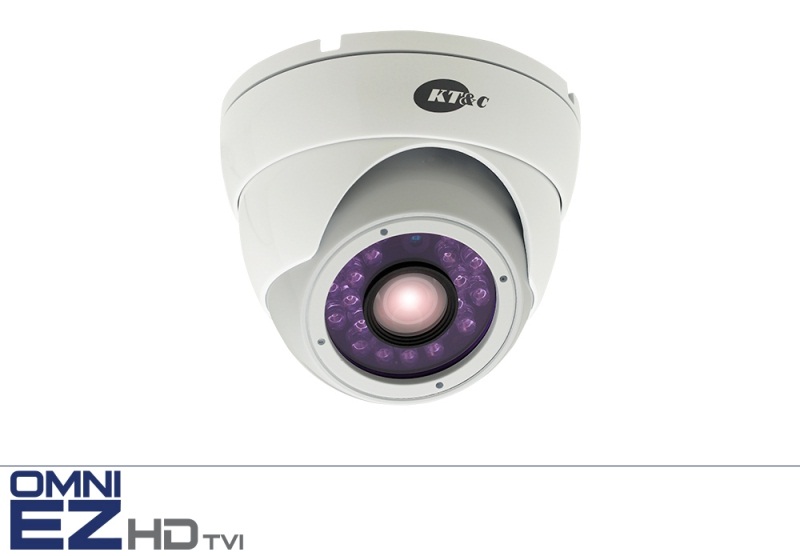

1080p HD-TVI Outdoor Turret with IR
- Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
- Field select 1080p/720p 30/25
- HD-TVI HD BNC output, plus full time CVBS analog BNC output for alternative connection/monitoring and ease of service
- Operation over ‘almost any’ wire - Over 1000 feet on standard RG59 coax; longer distances on RG6 - Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).
- 1/2.8” progressive scan CMOS sensor
- 3.6mm megapixel lens to capture the desired field of view
- Wide Dynamic Range to handle challenging bright or unbalanced lighting conditions
- Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)
- True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 20 IR LEDs
- Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
- Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting
- Simple and easy to use OSD setup menu - Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment) - Wide Dynamic Range for bright or unbalanced scene lighting conditions - Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC) - Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space - Privacy masking for 8 configurable zones - Lens shading compensation for even exposure out to the lens periphery - Defog improves image contrast in the presence of haze or smoke that obscures image details
- IP66 weather resistant, vandal resistant metal housing
- Choice of black or white housing color to blend or contrast with the décor
- Operating temperature range of 14°F~122°F
- 12VDC operation with low current draw
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Camera packaging contents:
- Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
- Field select 1080p/720p 30/25
- HD-TVI HD BNC output, plus full time CVBS analog BNC output for alternative connection/monitoring and ease of service
- Operation over ‘almost any’ wire - Over 1000 feet on standard RG59 coax; longer distances on RG6 - Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).
- 1/2.8” progressive scan CMOS sensor
- 3.6mm megapixel lens to capture the desired field of view
- Wide Dynamic Range to handle challenging bright or unbalanced lighting conditions
- Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)
- True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 20 IR LEDs
- Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
- Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting
- Simple and easy to use OSD setup menu - Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment) - Wide Dynamic Range for bright or unbalanced scene lighting conditions - Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC) - Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space - Privacy masking for 8 configurable zones - Lens shading compensation for even exposure out to the lens periphery - Defog improves image contrast in the presence of haze or smoke that obscures image details
- IP66 weather resistant, vandal resistant metal housing
- Choice of black or white housing color to blend or contrast with the décor
- Operating temperature range of 14°F~122°F
- 12VDC operation with low current draw
| Imaging Device | 1/2.8" Progressive Scan CMOS |
| Video Format | Main Output: 1080p/720p HD-TVI 30/25FPS (OSD selectable) Secondary Output: Full time CVBS (OSD selectable NTSC/PAL) aux video |
| Picture Elements | 1984 (H) x 1105 (V) |
| Effective Picture Elements | 1920 (H) x 1080 (V) |
| Horizontal Resolution | More than 1080 HTVL (1080p mode) |
| Sensitivity | 0 lux IR on |
| Day/Night Type | True Day/Night with ICR motorized filter control |
| Lens Type | Megapixel Fixed Focal Length f=3.6mm board type |
| IR LED | 20 LED, 850nm |
| IR Range | 66’ / 20m † |
| Smart IR Exposure Adjust | Adjustable Off/low/mid/high |
| Video Output Connector Type | TVI and CVBS: BNC 75Ω |
| Sync. Mode | Internal |
| OSD Menu | Multiple functions using UTC Control |
| OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, French |
| UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
| DWDR/BLC/HSBLC | OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color. |
| Auto Gain Control | OFF; 2~42dB |
| Electronic Shutter | Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
| White Balance | Auto / Push Lock / Manual |
| Color Correction | Gamma 0.45~.65, adjustable |
| Day & Night | Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control |
| Digital Slow Sutter [DSS] | DSS low light boost Off/Auto 2X~16X* |
| 3D-DNR | Off/Low/Mid/High |
| Digital Zoom | 1X~8X |
| Defog | Off/Low/Mid/High |
| Mirror | Off / H-flip, V-flip, rotate |
| Motion Detection | Off/On for programmable zone with sensitivity adjust (pixel change detection) |
| Privacy Mask | Off/On with full programmability for 8 selectable zones |
| Lens Shading Compensation) | Off/Low/Mid/High |
| DPC (Defective Pixel Correction) | Off/On |
| Other OSD Functions | Camera Title with position, Font Color; Image Sharpness |
| Power Source | 12VDC |
| Power Consumption | 12VDC:390mA |
| Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
| Environmental | IP66 weather resistant |
| Mechanical | Metal ball and base, with base removable for easy mounting |
| Positioning | 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~70° Rotate: 0~360° |
| Dimensions | Ø5.14” × 3.67” [Ø93 × 63mm] |
| Weight | .73 lbs./332g |
| Certifications | CE / FCC / RoHS |
