4 Indoor HD-SDI Box Security Camera HD-SDI DVR System HDSDI-CD120N-4CH-KIT

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is 4 Indoor HD-SDI Box Security Camera HD-SDI DVR System HDSDI-CD120N-4CH-KIT. The camera is featured by 1080p, 2.2 Megapixel. 1/3" Panasonic CMOS. S/N Ratio of More than 50dB. Intelligent Motion Detection. Privacy Mask Function.  The V7104 is a business class digital video recorder offering enterprise class features, which puts in into a class of its own. The V7104 utilizes H.264 hardware compression, which is the same as our popular Bronze, Gold, and Platinum DVRs. The unit has HDMI and VGA monitor outputs, which can be used simultaneously. Where the V7104 DVR differs from standard analog camera DVRs is that it uses the HD-SDI technology. Coupled with HD-SDI cameras running on coaxial cable, it can deliver crisp high-definition video up to a full 1080p resolution, but without any of the latency that you see with high definition IP cameras. With HD-SDI, you get the best of both worlds; the high-definition image quality people want from IP cameras coupled with the smooth frame rate you've come to expect from analog cameras. The DVR is featured by H.264 Compression (Main Profile). 4 HD-SDI Video Input (720p or 1080p). HD Real time (Max. 30 per Channel) Recording & playback. HDMI & VGA Output Full HD (Max. 1,920 x 1,080p). Multi Channel Display & Menu Control in Spot Monitor. Picture Quality: Utmost graphic, respectively comparing its picture size. Mobile View on 3G Device : iPhone / Blackberry / Android / MS Windows Mobile. Dual Stream : Optimize network transfer speed. POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS. User Friendly GUI : Flexible, Easy and Convenient. Advanced CMS Software : Convenient and Versatile Software. S.M.A.R.T : Self Monitoring Analysis and Reporting Technology. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

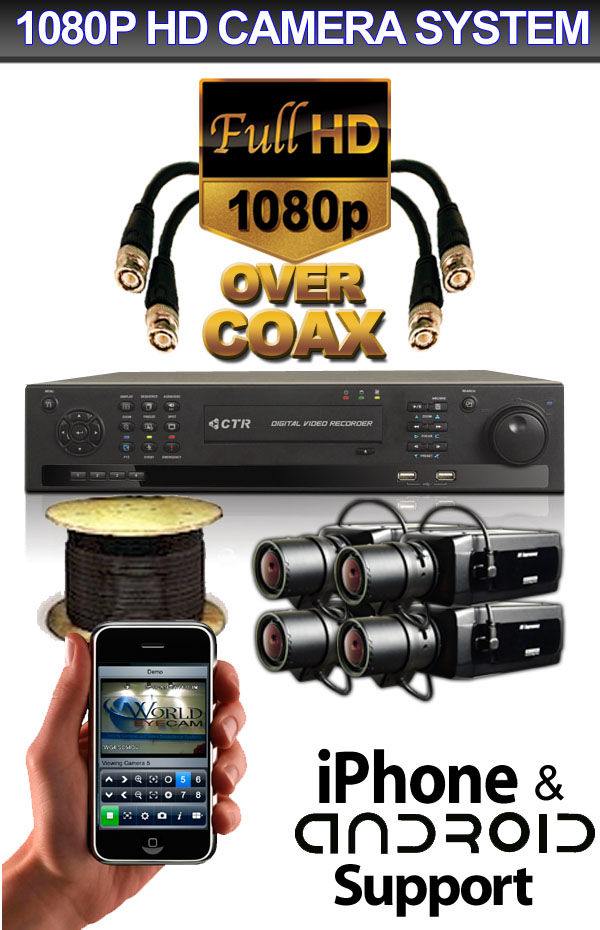

This 4 Channel HDSDI kit includes everything you need to hook up the system and start viewing smooth 1080p video through any HDMI-compatible display. Included in the kit:

• (1) HDSDI - WECV7104 - 4ch HD-SDI, 60ips @720p, 30ips @1080p, Up to 3 HDDs+1, 1 Audio, Rack Mountable DVR
• (4) HDSDI-CD120N Box Cameras
• (1) 4 Channel 12VDC 5000 mA with 2.1 mm plugs Power Adapter
• (4) 100' Video/Power Cables & Cable Connectors (Choice of Sizes)

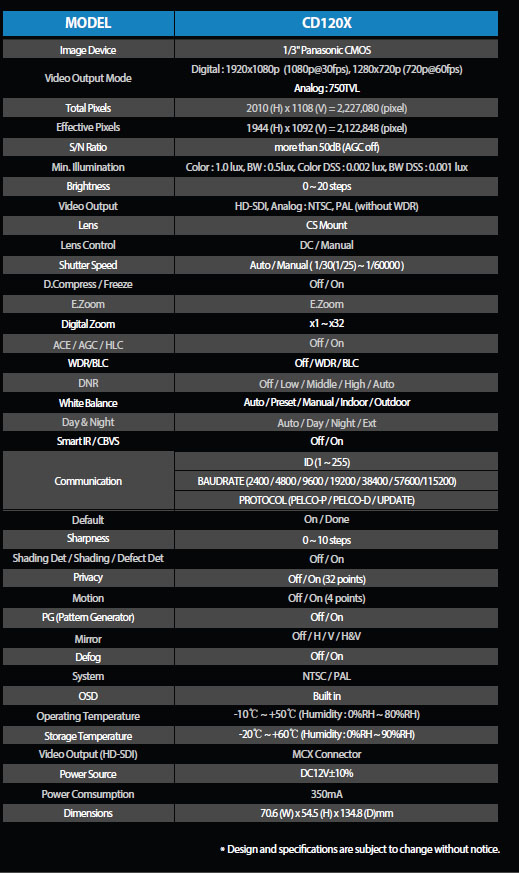

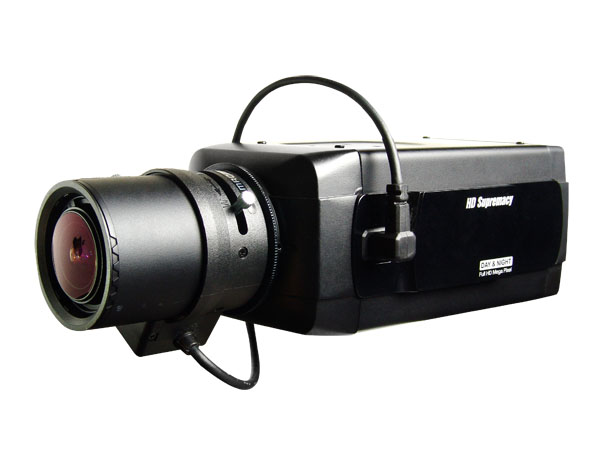

About the camera:

Key Features:

• 1080p, 2.2 Megapixel
• 1/3" Panasonic CMOS
• S/N Ratio of More than 50dB
• Intelligent Motion Detection
• Privacy Mask Function

About the DVR:

FEATURES:

• H.264Compression (Main Profile)
• 4 HD-SDI Video Input (720p or 1080p)
• HD Realtime (Max. 30 per Channel) Recording & playback
• HDMI & VGA Output Full HD (Max. 1,920 x 1,080p)
• Multi Channel Display & Menu Control in Spot Monitor
• Picture Quality : Utmost graphic, respectively comparing its picture size
• Mobile View on 3G Device : iPhone / Blackberry / Android / MS Windows Mobile
• Dual Stream : Optimize network transfer speed
• POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS
• User Friendly GUI : Flexible, Easy and Convenient
• Advanced CMS Software : Convenient and Versatile Software
• S.M.A.R.T : Self Monitoring Analysis and Reporting Technology

The V7104 is a business class digital video recorder offering enterprise class features, which puts in into a class of its own. The V7104 utilizes H.264 hardware compression, which is the same as our popular Bronze, Gold, and Platinum DVRs. The unit has HDMI and VGA monitor outputs, which can be used simultaneously.

Where the V7104 DVR differs from standard analog camera DVRs is that it uses the HD-SDI technology. Coupled with HD-SDI cameras running on coaxial cable, it can deliver crisp high-definition video up to a full 1080p resolution, but without any of the latency that you see with high definition IP cameras. With HD-SDI, you get the best of both worlds; the high-definition image quality people want from IP cameras coupled with the smooth frame rate you've come to expect from analog cameras.

	DDNS & DHCP Support DDNS comes into play when you are unable to acquire a static IP address from your ISP. However, it is still difficult for ordinary users to understand. With a simple configuration on DVR Setup, even beginners are able to get DVR domain name automatically from CTRing's DDNS Server. The virtual dynamic domain name is used for network access. Also, we support DHCP for users to connect local network without any difficulties
	Archiving Video data recorded on the database is transferred and stored on the allocated space of the HDD, USB and CD/DVD-RW as required. This enables storage capacity to be used more efficiently than accumulating data on the database. Archived data can be played back seamlessly, just as normal data would, without stopping the network system. The images can be store as both snapshot and video clips. (JPEG, EXE Format)
	External Storage e-SATA and I-SCSI interface for external storage can be utilized for longer and larger scale data caused by high-quality for recording image.
	Keyboard Controller Multiple Keyboards can be connected to the same DVR, supporting multiple Operator Control Stations. This is the starting point at building several DVR's into a single system and offering control from remote location. The controller is capable of controlling speed dome camera, DVR and monitor.
	CMS/Web Client Support CMS is central monitoring station that monitors multiple sites of video, audio and alarm by signaling over networks. It also provides convenient and versatile search, playback and system check for health status. CTRING's DVR doesn't require to have additional web client software installed to view video remotely. Offsite viewing is just as easy as surfing web site.
	Software Upgrade Via Network The CTRING Software Upgrade Utility is an interactive GUI interface that enables you to upgrade software via network.
	E-Mail Notification The DVR can send email and alert sounds with attached image or video clip on event. When someone walks into the cameras frame of view, email notification & alarm activates the DVR that in turn sends an email to programmed address. This feature alerts you via email and alert sounds that something is going on, instead of finding out when you come home or open up your business.
	POS/ATM(Patent Pending) Losses related to POS transactions can be a main cause of the shrinkage for the most part. The POS/ATM surveillance system uses video text overlay technology to provide visual contextual awareness that helps reduce shrinkage and protect asset against business losses. While working in conjunction with Data Capture, the DVR system helps you with tools to remotely monitor cashier area, associate POS transaction data with text and record videos for retroactive analysis, and even output alarms for emergency events.
	NTP (Network Time Protocol) NTP stands for Network Time Protocol and is a universal standard for time synchronization of computers or other devices on a network. CTRING's DVR is NTP-compatible and acts as a time server for any NTP-enabled client.
	WCS (Watermark Check System) All images are watermarked, to prevent editing on another image editing software. The WCS software will check whether the image is originally captured from the system or not. If the captured image has been altered or modified in any way, the software indicates that the image has been damaged and it will no longer be used as legitimate evidence.
	E-Map The e-Map functions allow you mapping by using your local map. You can locate any camera from any remote server to your map by dragging and dropping from the list.
	Audio Recording Digitally record and playback both audio and video at the same time. Data is stored on HDD and can be easily transferred to CD/DVD-RW.
	User Friendly The most important factor for any system is ease of use. CTRING's intuitive interface technology with clear, menu-driven options is quick to learn and easy to use. You even have a selection of control devices to choose from, including a mouse or CCTV keyboard.
	Mobile Viewer (Windows Mobile 6.1 or Higher) Users may able to monitor their site no matter where they are by using their smartphone, users are able to access the DVR remotely.

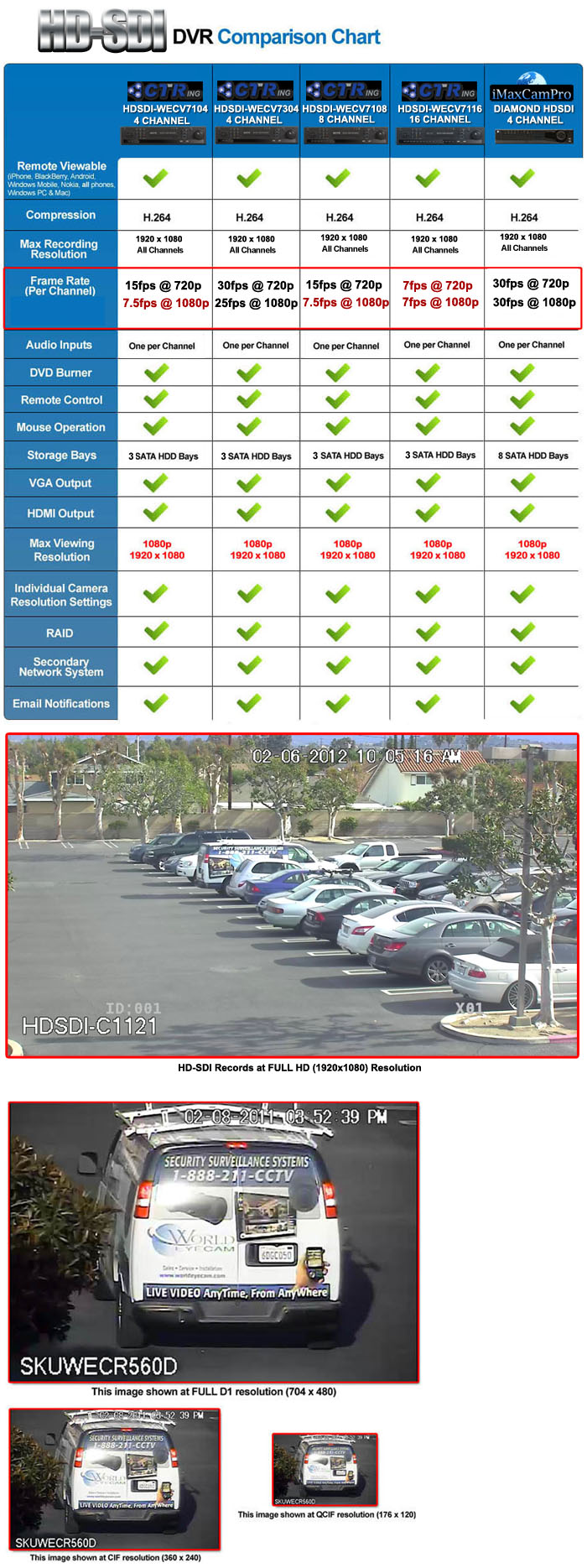

HD-SDI SAMPLES
Click Images For a Full Resolution (1920x1080) Direct Capture From Each Camera
