16 HD-SDI Bullet IR Night Vision Security Cameras HD-SDI DVR System HDSDI-CS422V-16CH-KIT

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is 16 HD 1080p IR Dome HD-SDI DVR Kit for Business Commercial Grade. This 16 Channel HDSDI kit includes everything you need to hook up the system and start viewing smooth 1080p video through any HDMI-compatible display. Included in the kit (1) HDSDI - WECV7116 - 16ch HD-SDI, 60ips @720p, 30ips @1080p, Up to 4 HDDs+1, 1 Audio, Rack Mountable DVR. (16) HDSDI-C1422 Indoor/Outdoor D/N Bullet Cameras. (1) 16 Camera 12VDC fully-regulated, distributed, power supply UL approved. 100' Video/Power Cables & Cable Connectors (Choice of Sizes). The Camera is featured by move & leave lens zoom and focus adjustment method. 1/3 Inch progressive Sensor, 2.1 Megapixel. Resolution : More than 1000 TVL (H). 40pcs of IR LEDs (so no dark corners at night). Dual voltage : 12V DC and 24V AC (1.5A power supply is recommended ). 3-12mm wide vari-focal lens built-in. All the functions can be controlled by RS-485 and COAXIAL communication (option). The V7108 is a business class digital video recorder offering enterprise class features, which puts in into a class of its own. The V7104 utilizes H.264 hardware compression, which is the same as our popular Bronze, Gold, and Platinum DVRs. The unit has HDMI and VGA monitor outputs, which can be used simultaneously. Where the V7108 DVR differs from standard analog camera DVRs is that it uses the HD-SDI technology. Coupled with HD-SDI cameras running on coaxial cable, it can deliver crisp high-definition video up to a full 1080p resolution, but without any of the latency that you see with high definition IP cameras. With HD-SDI, you get the best of both worlds; the high-definition image quality people want from IP cameras coupled with the smooth frame rate you've come to expect from analog cameras. The DVR is featured by H.264 Compression (Main Profile). 16 HD-SDI Video Input (720p or 1080p). HD Real time (Max. 30 per Channel) Recording & playback. HDMI & VGA Output Full HD (Max. 1,920 x 1,080p). Multi Channel Display & Menu Control in Spot Monitor. Mobile View on 3G Device : iPhone / Blackberry / Android / MS Windows Mobile. Dual Stream : Optimize network transfer speed. POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS. User Friendly GUI : Flexible, Easy and Convenient. Advanced CMS Software: Convenient and Versatile Software. S.M.A.R.T : Self Monitoring Analysis and Reporting Technology.  Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

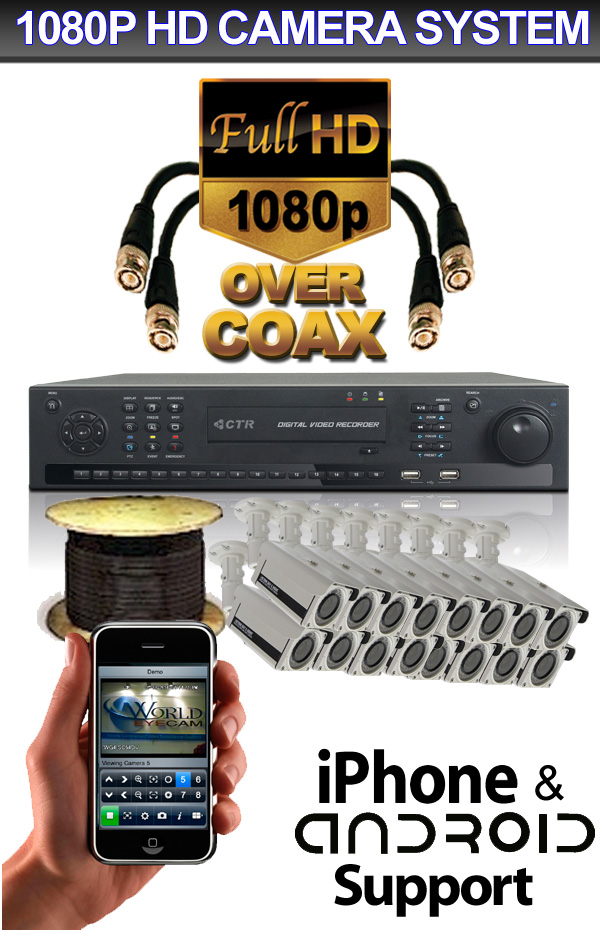

This 16 Channel HDSDI kit includes everything you need to hook up the system and start viewing smooth 1080p video through any HDMI-compatible display. Included in the kit:

• (1) HDSDI - WECV7116 - 16ch HD-SDI, 60ips @720p, 30ips @1080p, Up to 4 HDDs+1, 1 Audio, Rack Mountable DVR
• (16) HDSDI-C1422 Indoor/Outdoor D/N Bullet Cameras
• (1) 16 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
• (16) 100' Video/Power Cables & Cable Connectors (Choice of Sizes)

About the camera:

FEATURES:

• "Move & leave" lens zoom and focus adjustment method.
• 1/3 Inch progressive Sensor, 2.1 Megapixel
• Resolution : More than 1000 TVL (H)
• 40pcs of IR LEDs (so no dark corners at night)
• Dual voltage : 12V DC and 24V AC (1.5A power supply is recommended )
• 3-12mm wide vari-focal lens built-in
• All the functions can be controlled by RS-485 and COAXIAL communication (option)

About the DVR:

FEATURES:

• H.264Compression (Main Profile)
• 16 HD-SDI Video Input (720p or 1080p)
• HD Realtime (Max. 30 per Channel) Recording & playback
• HDMI & VGA Output Full HD (Max. 1,920 x 1,080p)
• Multi Channel Display & Menu Control in Spot Monitor
• Mobile View on 3G Device : iPhone / Blackberry / Android / MS Windows Mobile
• Dual Stream : Optimize network transfer speed
• POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS
• User Friendly GUI : Flexible, Easy and Convenient
• Advanced CMS Software : Convenient and Versatile Software
• S.M.A.R.T : Self Monitoring Analysis and Reporting Technology

The V7108 is a business class digital video recorder offering enterprise class features, which puts in into a class of its own. The V7104 utilizes H.264 hardware compression, which is the same as our popular Bronze, Gold, and Platinum DVRs. The unit has HDMI and VGA monitor outputs, which can be used simultaneously.

Where the V7108 DVR differs from standard analog camera DVRs is that it uses the HD-SDI technology. Coupled with HD-SDI cameras running on coaxial cable, it can deliver crisp high-definition video up to a full 1080p resolution, but without any of the latency that you see with high definition IP cameras. With HD-SDI, you get the best of both worlds; the high-definition image quality people want from IP cameras coupled with the smooth frame rate you've come to expect from analog cameras.

Click Images For a Full Resolution (1920x1080) Direct Capture From Each Camera
