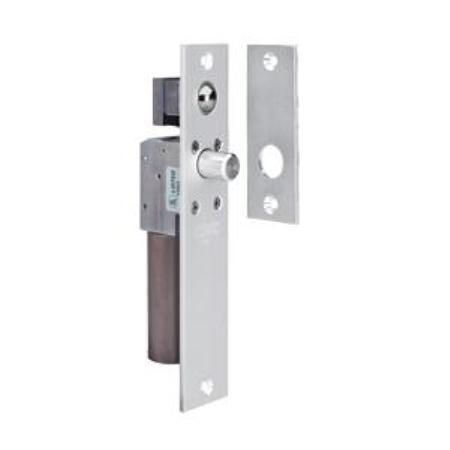

SDC 1091AIV SpaceSaver Aluminum Finish Electric Bolt Lock, Narrow Mortise, 12/24 VDC, Failsafe for 1-3/4" Frame

SDC Security
SKU: 1091AI-V

1091AI-V Spacesaver Bolt Locks, Failsafe 12/24VDC, Clear Anodized Aluminum - The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications. The stainless steel bolt projects at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple cutout, in virtually any standard 1.75" frame, or in most door lock stiles. With the entire lock concealed, esthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical. It has a wooden frame Face Plate of 8"L x 1-1/2"W x 1/8"D (203.2 x 38.1 x 3.175mm), Strike of 4"L x 1-1/2"W x 1/4"D (101.6 x 38.1 x 3.175mm) and a Frame with Inner Dimension Requirements of 8"L x 1-1/2"W x 1-1/2"D (203.2 x 38.1 x 38.1mm). The Bolt material is solid stainless steel with a bolt diameter of 5/8" (15.875mm).The bolt throw is1091A/1091ADLI: 3/4" (19.05mm).

    • 39% less
    Market price:$773.97 save $298.97
  • $475.00

OR

1091AI-V Spacesaver Bolt Locks, Failsafe 12/24VDC, Clear Anodized Aluminum - The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications. The stainless steel bolt projects at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple cutout, in virtually any standard 1.75" frame, or in most door lock stiles. With the entire lock concealed, esthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical. It has a wooden frame Face Plate of 8"L x 1-1/2"W x 1/8"D (203.2 x 38.1 x 3.175mm), Strike of 4"L x 1-1/2"W x 1/4"D (101.6 x 38.1 x 3.175mm) and a Frame with Inner Dimension Requirements of 8"L x 1-1/2"W x 1-1/2"D (203.2 x 38.1 x 38.1mm). The Bolt material is solid stainless steel with a bolt diameter of 5/8" (15.875mm).The bolt throw is1091A/1091ADLI: 3/4" (19.05mm).Two aluminum mounting tabs are provided for easy lock installation. It has dual Voltage Coil of 0.45 Amp @ 24VDC Continuous Duty and 0.9 Amp @ 12VDC Continuous Duty. It’s a Failsafe Deadlocking 12/24VDC with Clear Anodized Aluminum finish and auxiliary locks. It complies with “positive pressure” requirements of standard UL10C and is listed in US & Canada.

    • SKU
      1091AI-V
    • Weight
      50 lbs
  • Manufacturer
    SDC Security

Product questions

No questions yet. Be the first to ask the question!
