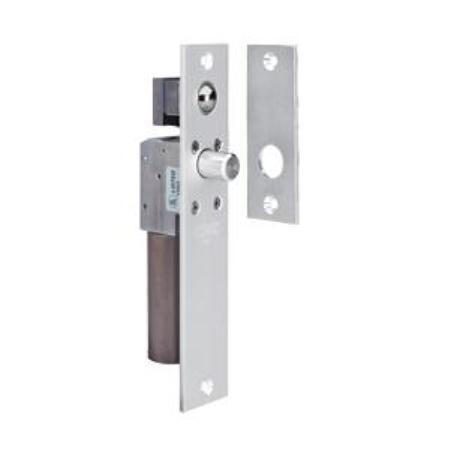

1091AI-WDV Spacesaver Bolt Locks Faceplate for Wood Frames, Failsafe 12/24VDC, Clear Anodized Aluminum

SDC Security
SKU: 1091AI-WDV
1091AI-WDV Spacesaver Bolt Locks Faceplate for Wood Frames, Failsafe 12/24VDC, Clear Anodized Aluminum- The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications. The stainless steel bolt projects at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple cutout, in virtually any standard 1.75" frame, or in most door lock stiles. With the entire lock concealed, esthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical. It has a wooden frame Face Plate of 8"L x 1-1/2"W x 1/8"D (203.2 x 38.1 x 3.175mm), Strike of 4"L x 1-1/2"W x 1/4"D (101.6 x 38.1 x 3.175mm) and a Frame with Inner Dimension Requirements of 8"L x 1-1/2"W x 1-1/2"D (203.2 x 38.1 x 38.1mm). The Bolt material is solid stainless steel with a bolt diameter of 5/8" (15.875mm).The bolt throw is1091A/1091ADLI: 3/4" (19.05mm).
    • 32% less
    Market price:$704.97 save $224.97
  • $480.00

OR
1091AI-WDV Spacesaver Bolt Locks Faceplate for Wood Frames, Failsafe 12/24VDC, Clear Anodized Aluminum- The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications. The stainless steel bolt projects at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple cutout, in virtually any standard 1.75" frame, or in most door lock stiles. With the entire lock concealed, esthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical. It has a wooden frame Face Plate of 8"L x 1-1/2"W x 1/8"D (203.2 x 38.1 x 3.175mm), Strike of 4"L x 1-1/2"W x 1/4"D (101.6 x 38.1 x 3.175mm) and a Frame with Inner Dimension Requirements of 8"L x 1-1/2"W x 1-1/2"D (203.2 x 38.1 x 38.1mm). The Bolt material is solid stainless steel with a bolt diameter of 5/8" (15.875mm).The bolt throw is1091A/1091ADLI: 3/4" (19.05mm).Two aluminum mounting tabs are provided for easy lock installation. It has dual Voltage Coil of 0.45 Amp @ 24VDC Continuous Duty and 0.9 Amp @ 12VDC Continuous Duty. It’s a Failsafe Deadlocking 12/24VDC with Clear Anodized Aluminum finish and auxiliary locks. It complies with “positive pressure” requirements of standard UL10C and is listed in US & Canada. SDC a U.S. manufacturer of premium grade access control hardware specified by security consultants for prominent facilities worldwide. Recipient of 24 SIA Awards and Recognition for innovative products, SDC is also popular among integrators and manufactures for Private Labeling and Custom Product Design Services, from controllers to hardware electrification.PRODUCTS: Latch Retraction Kits, Electronic Locksets, Access Controls, Magnetic Locks, Delayed Egress, Electrified Locksets, Electric Strikes, Exit Device Electric Operations & Alarm, Power Controllers, Egress Devices and more. The products are available online and with a competitive price range and comes with maximum assurance along with world renowned quality certifications
    • SKU
      1091AI-WDV
    • Weight
      5 lbs
  • Manufacturer
    SDC Security
