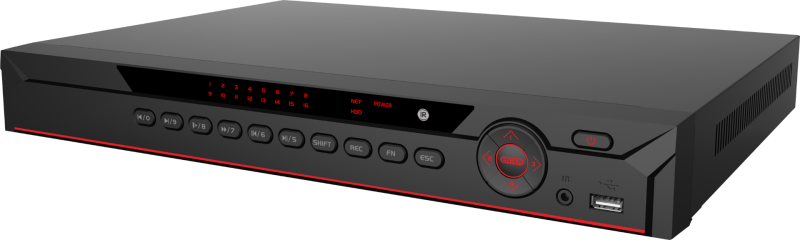

iMaxCamPro WECICP-NVR1U16CH005 | 4K 16CH 1U NVR w/16POE

iMaxCamPro
SKU: WECICP-NVR1U16CH005

16 Channel 1U 16 PoE 4K & H.265 Lite Network Video Recorder, 200Mbps, HDMI/VGA, 4CH Alarm, 2 SATA, IVS, UL Listed

    • 10% less
    Market price:$620.75 save $62.50
  • $558.25

OR

PRODUCT FEATURES

  • Up to 16 channel IP camera input
  • H.265/H.264/MJPEG dual codec decoding
  • Max 200Mbps incoming bandwidth
  • Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view
  • Up to 12Mp resolution live-view&playback
  • 2HDMI/1 VGA simultaneous video output
  • 16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0), 1 eSATA port
  • Support IPC UPnP, 16PoE ports (for -16P model)
  • Support P2P, QR code scan & add
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)
System CompressionQuad Core CPU
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Output1 HDMI, 1 VGA
Video ResolutionHDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
IP Camera Input16CH
Display Split1/4/8/9/16
Recording Resolution8MP, 6MP, 5MP, 3MP, 1080P, 1.3MP, 720P, etc
Recording Rate200Mbps
Bit Rate16~20Mbps
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio In1
Audio Out1
2 Way Audio1 Channel Input, 1 Channel Output, RCA
Alarm In4 Channel
Alarm Out2 Channel
Trigger EventsRecording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Relay OutputN/A
Playback Channels1/4/9/16
Playback SearchTime/Calendar Search, Event (motion)
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Backup ModeUSB Device, network
PerformanceMax 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera)
Stranger ModeDetect strangers' faces(not in device's face database). Similarity threshold can be set manually.
AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database ManagementUp to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries&regions and state can be added to each face picture.
Database ApplicationEach database can be applied to video channels independently.
Network InterfaceRJ-45 port (10/100/1000Mbps)
PoE Ports16 ports (IEEE802.3af/at)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Network Max. Users128 users
MobileiPhone, Android
USB2 ports (1 Rear USB3.0, 1 front USB2.0)
RS485N/A
RS2321 Channel
Internal HDD2 SATA III ports, up to 12TB
e-SATAN/A
Power SupplySingle AC 100~240V, 50/60 Hz
Power ConsumptionAC100V~240V <13.2W(Without HDD)
Operating Conditions-10 ~+55°C / 10~90%RH / 86~106kpa
Dimensions1U, 375mm × 327mm × 53mm
Weight4.4kg(without HDD)
    • SKU
      WECICP-NVR1U16CH005
    • Weight
      15 lbs
  • Manufacturer
    iMaxCamPro
  • Number of Channels
    16ch
  • Recorder Type
    NVR (with POE Ports)
  • Network Cable
    I have my own network cables, 50 Feet CAT6 Cable, 100 Feet CAT6 Cable, 150 Feet CAT6 Cable, 200 Feet CAT6 Cable, 300 Feet CAT6 Cable, Cat 5 Cable 1000 feet spool, CAT6 Network Cable 1000 Feet Non UL, Black
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Hard Drive #2
    I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6 TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
