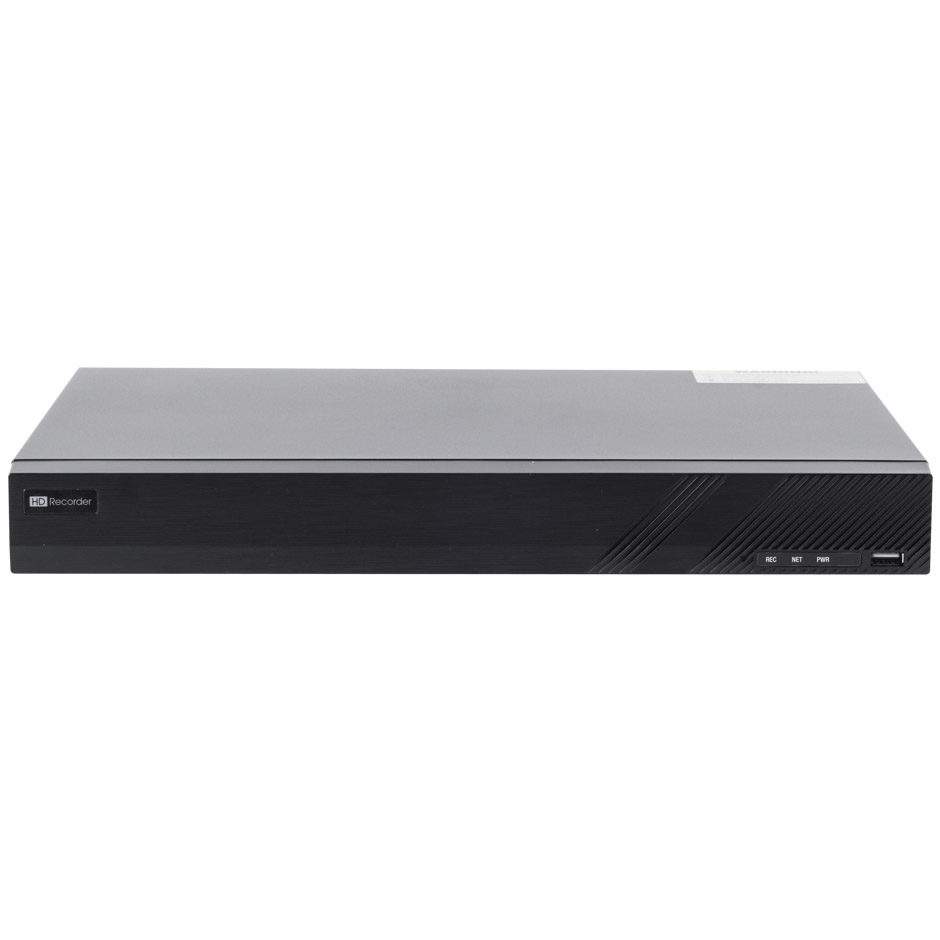

CLEAR XVR216 16-Channel 5MP Universal Video Recorder (AHD,TVI,CVI & CVBS), 2 SATA, Up to 4 IP Cameras

CLEAR
SKU: CLR-XVR216-5MP
  • 16 BNC Video Inputs Supporting AHD, TVI, CVI and CVBS
  • Supports Additional 4 IP Cameras
  • H.264 Video Compression
  • Up to 5MP Recording Resolution for HD Analog and up to 4MP for IP Cameras
  • 1 HDMI, 1 VGA and 1 CVBS BNC Video Output
  • 2 SATA Interfaces for Internal Storage
  • 1 RJ-45 10/100M Ethernet Interface
  • Supports NAT functionality and QRCode scanning for mobile device access
    • 56% less
    Market price:$789.00 save $440.00
  • $349.00

OR
  • 16 BNC Video Inputs Supporting AHD, TVI, CVI and CVBS
  • Supports Additional 4 IP Cameras
  • H.264 Video Compression
  • Up to 5MP Recording Resolution for HD Analog and up to 4MP for IP Cameras
  • 1 HDMI, 1 VGA and 1 CVBS BNC Video Output
  • 2 SATA Interfaces for Internal Storage
  • 1 RJ-45 10/100M Ethernet Interface
  • Supports NAT functionality and QRCode scanning for mobile device access

Technical Specifications

CLR-XVR216-5MP

Video Input Interface

16 BNC Video Inputs

Video Input Signal

AHD, TVI, CVI, CVBS

IP Input Bandwidth

4 IP Camera with 24Mbps Recording Bandwidth

Video Output Interface

1 HDMI: 3840 x 2160; 1920 x 1080; 1280 x 1024

1 VGA: 1920 x 1080; 1280 x 1024

1 CVBS (BNC): Spot Monitor

Audio Input Interface

4 Channel, RCA Audio Inputs

Audio Output Interface

1 Channel, RCA Audio Output

Two-way Audio

1 Channel, RCA Audio Input (Uses Channel 1 Audio Input)

HD Analog Recording  Resolution

5MP, 4MP, 3MP, 1080p, 720p, WD1

HD Analog Recording  Frame Rate

5MP@10fps 4MP / 3MP@15fps 1080p / 720p /WD1@30fps

Bit Rate

768Kbps - 8Mbps

IP Recording Rate

4MP / 3MP / 1080p / 960p / 720p@30fps

Simultaneous Playback

Maximum 16 channels

Simultaneous Playback

Maximum 16 channels

Alarm Inputs

4 Channels

Relay Outputs

1 Channels

Network interface

1 x 10/100M RJ-45 Ethernet Interface

Remote Connections

5 Remote Users Maximum

HDD Interfaces

2 SATA interfaces, maximum 8TB per HDD

Backup Media

External USB or Network Download

USB Interfaces

1 x USB2.0 (Front), 1 x USB3.0 (Rear)

RS-485 Interface

1 Port for Serial PTZ Control

Power Supply

DC12V4A External Power Adapter

Power Consumption

<  15W (Without HDD)

Operating Environment

14° - 122°F, less than 90% Relative Humidity

Dimensions

15” x 10.5” x 2”

Weight (without HDD)

~9lbs




CRL-XVR216-5MP.pdf

    • SKU
      CLR-XVR216-5MP
    • Weight
      5 lbs
  • Manufacturer
    CLEAR
  • Recorder Type
    XVR
  • Hard Drive
    I will install my own hard drive, 1 TB Hard Drive, 2 TB Hard Drive, 3 TB Hard Drive, 4 TB Hard Drive, 6 TB Hard Drive
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Hard Drive #2
    I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup

Product questions

  • Ronnie Campbelll
    Oct 8, 2024, 05:44

    How do I reset?? No rest buttons,
    So I assume I need a jumper to jump across two terminals which ones are they? Thank you.

    Administrator
    Oct 10, 2024, 10:01

    The reset button for the CLEAR XVR216 16-Channel 5MP Universal Video Recorder can be found on the rear panel.
