16MP LightHunter 180° OmniView Network Camera
SKU: IPC8544EA-KM-I1 High quality image with 16MP, 1/1.8" CMOS sensor
• 4800*2688@30fps in the main stream offers 180° panoramic view, and 16:9 ratio can better fit the screen
• Smart IR, up to 50m (164 ft) IR distance
• Built-in fan, allows dissipating heat and eliminating the mist of window
• Ultra 265,H.265, H.264, MJPEG
• 2D/3D DNR (Digital Noise Reduction)
• AC24V, DC24V or PoE(IEEE 802.3at) power supply
• Micro SD, up to 256 GB
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP67 ingress protection
IPC8544EA-KM-I1 | |||||
Camera | |||||
Sensor | 1/1.8" progressive scan, 4.0 megapixel, CMOS | ||||
Min. Illumination | Colour: 0.001lux (F1.6,AGC ON) 0lux with IR | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
WDR | Digital WDR | ||||
S/N | >56dB | ||||
Lens | |||||
Lens | 4×2.8mm lens | ||||
Iris | F1.6 | ||||
Field of View (H) | 180° | ||||
Field of View (V) | 90° | ||||
Field of View (D) | 221.4° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8 | 63.0(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | |
Illuminator | |||||
IR Range | Up to 50m (164ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 4800×2688:Max. 30 fps; Sub Stream: 2688×1520:Max. 30 fps; Third Stream: 1280×720: Max. 30 fps; | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
ROI | Up to 8 areas | ||||
Video stream | Triple streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
HLC | Support | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Events | |||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711U, G.711A | ||||
Two-way Audio | Supported | ||||
Suppression | Supported | ||||
Sampling Rate | 8KHz | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
Client | EZStation EZLive EZView | ||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
Interface | |||||
Audio I/O | Audio cable | ||||
1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
1 output: impedance 600Ω; amplitude 2V [p-p] | |||||
Alarm I/O | 2/1 | ||||
Network | 10M/100M/1000M Base-TX Ethernet | ||||
Certification | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
General | |||||
Power | AC24V±25%/DC24V±25%, PoE(IEEE 802.3at) | ||||
Power consumption: Max 34W | |||||

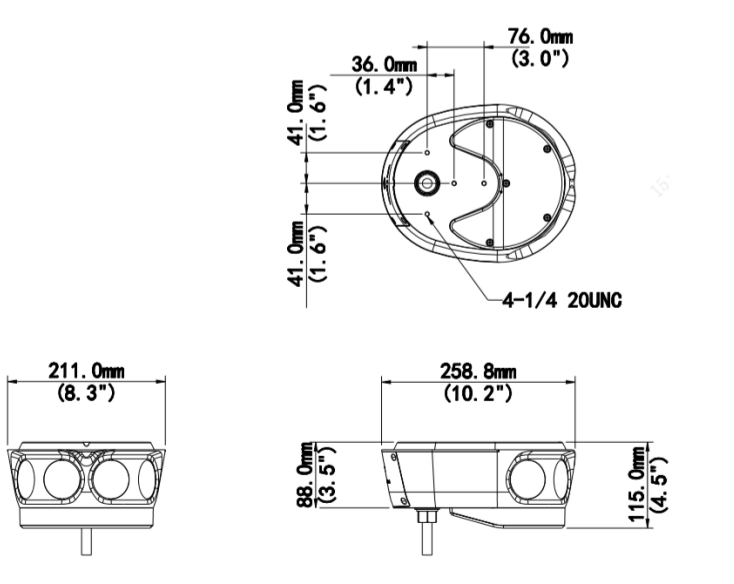

Dimensions (Ø x H) | 258.8mmx211.0mmx115.0mm(10.2”×8.3”×4.5”) | ||||
Weight | 2.271kg(5.01lb) | ||||
Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) | ||||
Storage Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing) | ||||
surge protection | 6KV |
Camera Installation Guide-V1.00
Network Cameras User Manual-V3.00
