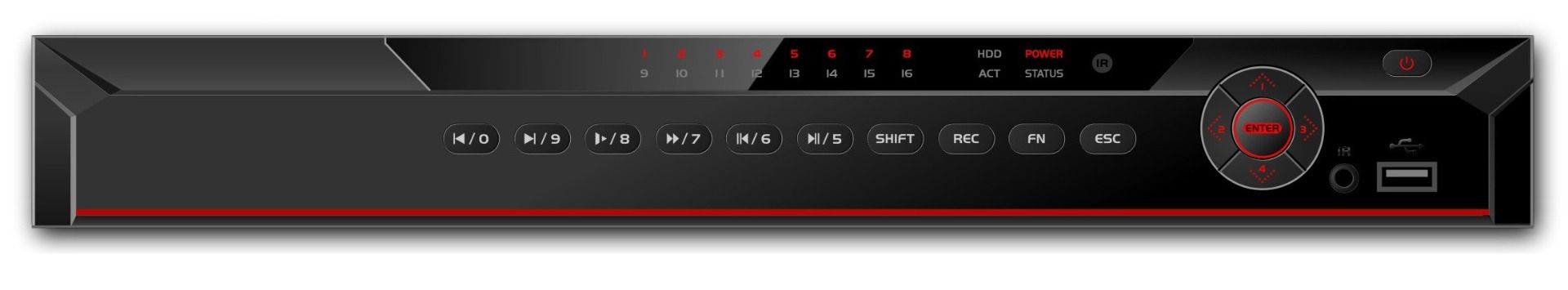

16CH 16PoE 4K&H.265 Network Video Recorder NVR502A-16/16P-4KS2E
SKU: WECNVR502A-16/16P-4KS2EFeatures
- · Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
- · Max 320Mbps Incoming Bandwidth
- · Up to 12MP Resolution for Preview and Playback
- · HDMI/VGA simultaneous video output
- · 1-8 PoE Ports Support 800m ePoE & EoC
System Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
---|---|
Main Processor | Embedded Processor |
Operating System | Embedded Linux |
Video Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
IP Camera Input | 16 Channel |
Display Split | 1/4/9/16 |
Recording Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
Bit Rate | 16Kbps ~ 20Mbps Per Channel |
Recording Mode | Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop |
Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
2 Way Audio | 1 Channel Input, 1 Channel Output, RCA |
Alarm In | 4 Channel |
Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
Alarm Relay Output | 2 Channel |
Playback Channels | 1/4/9/16 |
Playback Search | Time/Calendar Search, Event (motion) |
Playback Function | Play, Pause, FF, FB; Digital zoom |
Backup Mode | USB Device/Network |
Performance | Max 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera) |
Stranger Mode | Detect strangers' faces(not in device's face database). Similarity threshold can be set manually. |
Network Interface | 1 RJ-45 Ports (10/100/1000Mbps) |
PoE Ports | 16 ports (IEEE802.3af/at) 1-8 ports support ePoE & EoC |
Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP. |
Network Max. Users | 128 users |
Mobile | iPhone, Android |
USB | 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 ) |
RS485 | 1 Port, for PTZ control |
RS232 | 1 Port, for PC Communication and Keyboard |
Internal HDD | 2 SATA III Ports, Up to 10 TB capacity for each HDD |
Power Supply | Single, AC100V ~ 240V, 50 ~ 60 Hz |
Power Consumption | NVR: <15.2W (Without HDD) PoE: Max 25.5W for single port 130W total rated power, 80% control for protection |
Operating Conditions | Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
Dimensions | 1U, 375mm x 326.5mm x 53mm ; (14.8" x 12.9" x 2.1") |
Weight | Net Weight 2.7kg (6.0 lb) (without HDD) Gross Weight 4kg (8.8 lb) (without HDD) |
