16 Channel Penta-brid 1080P Digital Video Recorde
Loading...
Loading...

        16 Channel Penta-brid 1080P Digital Video Recorde

        iMaxCamPro
        SKU: WECIXVR502A-16-X

        Features

        • H.265+/H.265 dual-stream video compression
        • Support HDCVI/AHD/TVI/CVBS/IP video inputs
        • Max. 24 channels IP camera inputs, each channel up to 6MP
        • Max. 96Mbps incoming bandwidth
        • Smart Search and Intelligent Video System
          • 17% less
          Market price:$756.00 save $128.00
        • $628.00

        OR

        The 16 Channel Penta-brid 1080P Digital Video Recorder is a high-quality digital video recorder designed for professional surveillance applications. This product is capable of supporting up to 16 channels of video input and can record footage in 1080P resolution, providing crystal-clear images with exceptional detail.

        One of the key features of this digital video recorder is its support for Penta-brid technology, which allows it to work with five different video signal types, including HDCVI, AHD, TVI, CVBS, and IP cameras. This means that it can be easily integrated into a variety of different surveillance systems, providing maximum flexibility for your security needs.

        The 16 Channel Penta-brid 1080P Digital Video Recorder also features advanced H.264+ compression technology, which significantly reduces the amount of hard drive space required to store video footage. This means that you can store more footage for longer periods of time without having to constantly replace your hard drives.

        Other notable features of this digital video recorder include its support for intelligent video analysis, which allows it to detect and alert you to specific events, such as motion detection, video tampering, and tripwire events. It also features a user-friendly interface that is easy to navigate and configure, making it simple to set up and use.

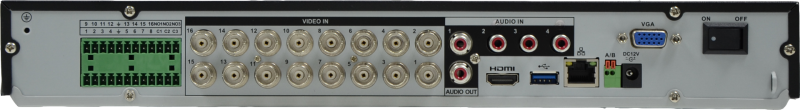

        In terms of physical design, the 16 Channel Penta-brid 1080P Digital Video Recorder is a compact unit that can be easily mounted in a server rack or other secure location. It also features a variety of input and output ports, including HDMI, VGA, and BNC connectors, as well as USB and RS485 interfaces for additional functionality.

        Overall, the 16 Channel Penta-brid 1080P Digital Video Recorder is a versatile and reliable solution for all your surveillance needs. With its advanced features and flexible compatibility, it is an excellent choice for both small and large-scale security systems.





        Features

        • H.265+/H.265 dual-stream video compression
        • Support HDCVI/AHD/TVI/CVBS/IP video inputs
        • Max. 24 channels IP camera inputs, each channel up to 6MP
        • Max. 96Mbps incoming bandwidth
        • Smart Search and Intelligent Video System

        System CompressionH.265+/H.265/H.264+/H.264
        Main ProcessorEmbedded Processor
        Operating SystemEmbedded Linux
        Video Interface1 HDMI, 1 VGA
        Video Resolution1920×1080, 1280×1024, 1280×720
        Multi-Screen DisplayWhen IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled : 1/4/8/9/16/25
        HDCVI Camera Input5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
        IP Camera Input16+8 Channel, each channel up to 6MP
        OSDYes
        Recording Resolution4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
        Recording Frame Rate

        Main stream: the 1st & 2nd channels 5M-N(1~10fps), other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)
        Sub stream: D1/CIF(1~15fps)

        Bit Rate32Kbps ~ 6144Kbps Per Channel
        Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
        Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
        Playback Channels1/4/9/16
        Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
        Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
        Backup ModeUSB Device/Network
        Audio In4
        Audio Out1
        2 Way AudioReuse audio in/out, RCA
        Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
        Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
        Alarm In16
        Alarm Relay Output3
        Network Interface1 RJ-45 Port (1000M)
        Network Function

        HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)

        Network Max. Users128
        InteroperabilityONVIF 16.12, CGI Conformant
        MobileiPhone, Android
        RS4851 Port, for PTZ Control
        USB1 USB 2.0 1 USB 3.0
        RS232N/A
        RS422N/A
        Power SupplyDC12V/4A
        Power Consumption<10W (Without HDD)
        Internal HDD2 SATA Port, up to 10TB capacity
        e-SATAN/A
        Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
        Storage Conditions-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
        Dimensions1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
        WeightNet weight 1.7kg (3.7lb) (without HDD); Gross weight 3.0kg (6.7lb)
