16 Channel Penta-brid 4K 1U Digital Video Recorder

iMaxCamPro
SKU: XVR702A-16-4KL-I

16CH DVR(Max. 32CH, Up to 16CH BNC, Up to 32CH IP), 5in1;4K@7FPS; Up to 32 ch IP; HDMI/VGA;2HDD, 2ch Perimeter Protection, and 16ch SMD Plus

Features

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 16/32 channels of IPC access, each channel up to
  • 8MP input; Max 64/128Mbps Incoming Bandwidth
  • IoT & POS functionalities
  • Perimeter Protection and SMD Plus
    • 43% less
    Market price:$1107.00 save $479.00
  • $628.00

OR

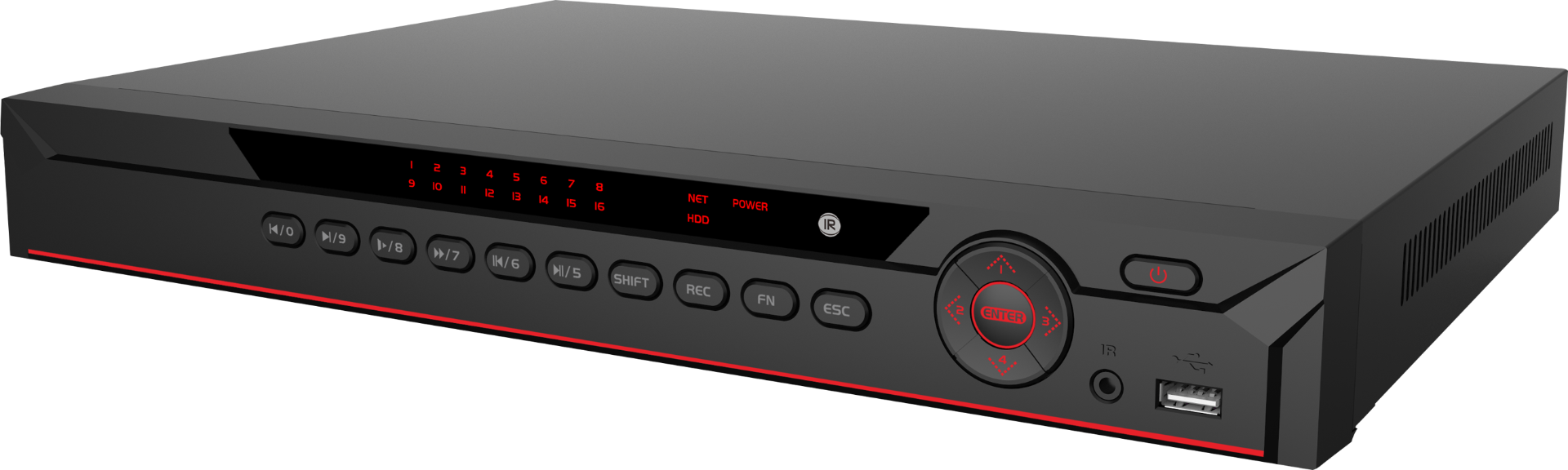

The 16-Channel Penta-brid 4K 1U Digital Video Recorder is a top-of-the-line surveillance device that supports up to 16 video input channels and can record footage in stunning 4K resolution. This product is designed for professional use in businesses, organizations, and other settings that require high-quality surveillance footage.

One of the key features of this digital video recorder is its support for Penta-brid technology, which allows it to work with five different video signal types, including HDCVI, AHD, TVI, CVBS, and IP cameras. This versatility means that it can be easily integrated into a variety of different surveillance systems, providing maximum flexibility for your security needs.

The 16 Channel Penta-brid 4K 1U Digital Video Recorder also features advanced H.265+ compression technology, which reduces the amount of hard drive space required to store video footage without compromising on image quality. This means that you can store more footage for longer periods of time, which is especially important for businesses and organizations that need to keep detailed records of their surveillance footage.

Other notable features of this digital video recorder include its support for intelligent video analysis, which allows it to detect and alert you to specific events, such as motion detection, video tampering, and tripwire events. It also features a user-friendly interface that is easy to navigate and configure, making it simple to set up and use.

In terms of physical design, the 16 Channel Penta-brid 4K 1U Digital Video Recorder is a compact unit that can be easily mounted in a server rack or other secure location. It also features a variety of input and output ports, including HDMI, VGA, and BNC connectors, as well as USB and RS485 interfaces for additional functionality.

The 16 Channel Penta-brid 4K 1U Digital Video Recorder is a high-end surveillance device that delivers exceptional performance and flexibility. Its advanced features and compatibility make it an excellent choice for businesses, organizations, and other settings requiring reliable, high-quality surveillance footage.



Features

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 16/32 channels of IPC access, each channel up to
  • 8MP input; Max 64/128Mbps Incoming Bandwidth
  • IoT & POS functionalities
  • Perimeter Protection and SMD Plus
More Information
System CompressionH.265+/H.265/H.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface16 Channel, BNC
Video Resolution4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF
HDCVI Camera Input4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input16+16 Channel, each channel up to 8MP
OSDYes
Recording Resolution4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF
Recording Frame Rate

Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF/QCIF (1~25/30fps) Sub steram:960H(1~15fps); D1/CIF/QCIF(1~25/30fps)

Bit Rate32Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Playback Channels1/4/9/16
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In4
Audio Out1
2 Way Audiosupport
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm In16
Alarm Relay Output3
Network Interface1 RJ-45 Port (1000M)
Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)

Network Max. Users128 users
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB Ports (1 USB 2.0 , 1 USB 3.0)
Power SupplyDC12V/5A
Power Consumption<15W (Without HDD)
Internal HDD2 SATA Ports, up to 10TB capacity for each disk
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Dimensions1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
WeightNet Weight 1.8kg (3.70 lb) (without HDD) Gross Weight 3.2kg (7.05lb)
    • SKU
      XVR702A-16-4KL-I
    • Weight
      7.05 lbs
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    16 Channels
  • Recorder Type
    DVR
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
