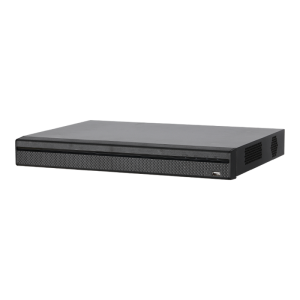

16 Channel Penta-brid 5MP Mini 1U Digital Video Recorder
Features
- H.265+/H.265 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max. 24 channels IP camera inputs, each channel up to 6MP
- Max. 96Mbps incoming bandwidth
- Smart Search and Intelligent Video System
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The 16 Channel Penta-brid 5MP Mini 1U Digital Video Recorder is a high-performance video recording device designed for professional surveillance applications. This digital video recorder (DVR) is capable of supporting up to 16 cameras and provides high-quality video recording in 5MP resolution.
This Penta-brid DVR is compatible with five different technologies: HDCVI, AHD, TVI, CVBS, and IP, making it easy to integrate with a wide range of cameras. It also features advanced compression technology that reduces the storage requirements for video footage, allowing users to store more video data without having to expand their storage capacity.
The DVR has a compact 1U form factor that is designed to fit into small spaces, making it an ideal choice for small businesses, retail stores, and homes. It is equipped with a variety of features such as smart search, video analytics, and motion detection, which allow users to easily find and review important events.
This 16 Channel Penta-brid 5MP Mini 1U Digital Video Recorder can be accessed remotely through a web browser or a mobile app, providing users with convenient access to their video footage from anywhere at any time. It is also easy to install and configure, thanks to its intuitive user interface.
In addition, this DVR supports multiple recording modes, including continuous, scheduled, motion detection, and alarm recording, allowing users to customize their recording settings to suit their specific surveillance needs. It also supports a variety of alarm input and output options, enabling users to configure alarms and notifications based on specific events.
Features
- H.265+/H.265 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max. 24 channels IP camera inputs, each channel up to 6MP
- Max. 96Mbps incoming bandwidth
- Smart Search and Intelligent Video System
| System Compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Interface | 1 HDMI, 1 VGA |
| Video Resolution | HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled : 1/4/8/9/16/25 |
| HDCVI Camera Input | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| IP Camera Input | 16+8 Channel, each channel up to 6MP |
| OSD | Yes |
| Recording Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Recording Frame Rate | Main stream: the 1st & 2nd channels 5M-N(1~10fps), other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/ |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Playback Channels | 1/4/9/16 |
| Playback Search | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Audio In | 1 |
| Audio Out | 1 |
| 2 Way Audio | Reuse audio in/out, RCA |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis |
| Alarm In | N/A |
| Alarm Relay Output | N/A |
| Network Interface | 1 RJ-45 Port (1000M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Network Max. Users | 128 |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Mobile | iPhone, Android |
| RS485 | 1 Port, for PTZ Control |
| USB | 1 USB 2.0 , 1 USB 3.0 |
| RS232 | N/A |
| RS422 | N/A |
| Power Supply | DC12V/2A |
| Power Consumption | <15W (Without HDD) |
| Internal HDD | 1 SATA Port, up to 10TB capacity |
| e-SATA | N/A |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Dimensions | Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
| Weight | Net Weight (without HDD) 1.3kg (2.9 lb) Gross Weight 2kg (4.4 lb) |
