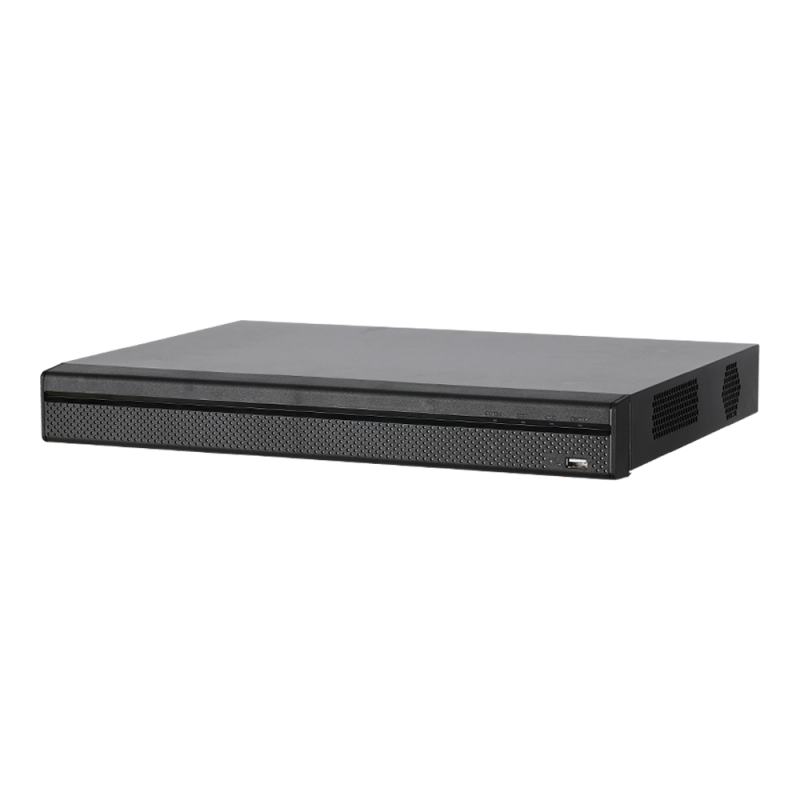

iMaxCamPro XVR502A-16 | 16 Channel Penta-brid 1080P-Lite 1U Digital Video Recorder

iMaxCamPro
SKU: WECIXVR502A-16

Features

  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 24 channels IP camera inputs, each channel up to 5MP
  • Max. 96Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
  • $768.00

OR

The iMaxCamPro XVR502A-16 is a 16 Channel Penta-brid 1080P-Lite 1U Digital Video Recorder that is designed to provide reliable and high-quality surveillance footage for businesses, organizations, and other professional settings. This digital video recorder can support up to 16 channels of video input and can record footage in 1080P-Lite resolution.

One of the key features of the iMaxCamPro XVR502A-16 is its support for Penta-brid technology, which allows it to work with five different video signal types, including HDCVI, AHD, TVI, CVBS, and IP cameras. This means that it can be easily integrated into a variety of different surveillance systems, providing maximum flexibility for your security needs.

The iMaxCamPro XVR502A-16 also features advanced H.264+ compression technology, which reduces the amount of hard drive space required to store video footage without compromising on image quality. This means that you can store more footage for longer periods of time, which is especially important for businesses and organizations that need to keep detailed records of their surveillance footage.

Other notable features of this digital video recorder include its support for intelligent video analysis, which allows it to detect and alert you to specific events, such as motion detection, video tampering, and tripwire events. It also features a user-friendly interface that is easy to navigate and configure, making it simple to set up and use.

In terms of physical design, the iMaxCamPro XVR502A-16 is a 1U unit that can be easily mounted in a server rack or other secure location. It also features a variety of input and output ports, including HDMI, VGA, and BNC connectors, as well as USB and RS485 interfaces for additional functionality.

Overall, the iMaxCamPro XVR502A-16 is a reliable and versatile surveillance device that delivers exceptional performance and flexibility. Its advanced features and compatibility make it an excellent choice for businesses, organizations, and other settings that require high-quality surveillance footage at an affordable price point.



Features

  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 24 channels IP camera inputs, each channel up to 5MP
  • Max. 96Mbps incoming bandwidth
  • Smart Search and Intelligent Video System

System CompressionH.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface1 HDMI, 1 VGA
Video Resolution1920x1080, 1280x1024, 1280x720
Multi-Screen Display1/4/8/9/16/25
HDCVI Camera Input16 Channel
IP Camera Input16+8 Channel, each channel up to 5MP
OSDYes
Recording Resolution1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Recording Frame Rate

Mainstream: 1080P(1~15fps), 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Substream: D1/CIF/QCIF (1~15fps)

Bit Rate1Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Playback Channels1/4/9/16
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In4
Audio Out1
2 Way AudioReuse audio in/out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm In16
Alarm Relay Output3
Network Interface1 RJ-45 Port (1000M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users128
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB Ports (1 USB 2.0, 1 USB 3.0)
RS232N/A
RS422N/A
Power SupplyDC12V/4A
Power Consumption<15W (Without HDD)
Internal HDD1 SATA Port, up to 6TB capacity
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH
Dimensions1U, 375mm×285mm×55mm (14.7" x 11.2" x 2.2")
WeightNet Weight 2.35kg (5.2 lb) (without HDD) Gross Weight 3.2kg (7.05lb)
    • SKU
      WECIXVR502A-16
    • Weight
      5.2 lbs
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
  • Hard Drive #2
    I will install my own hard drive, 500GB HDD, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
