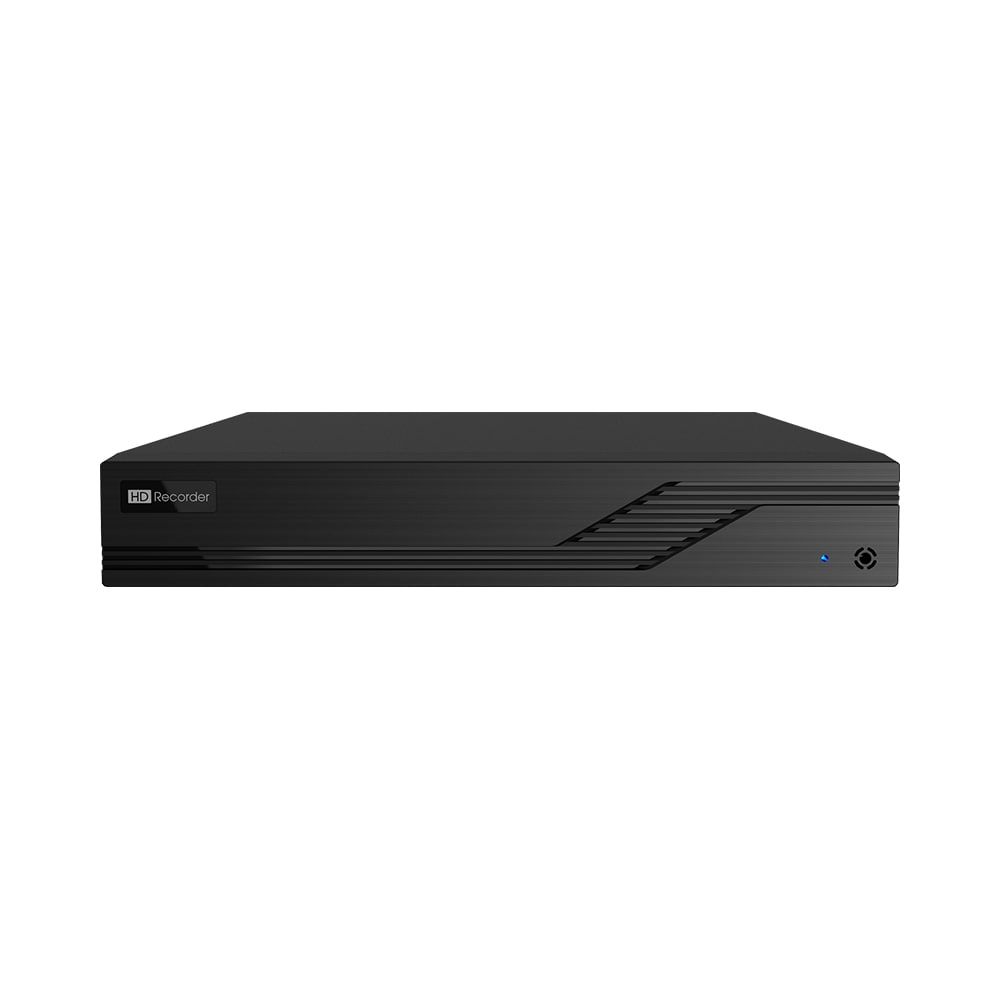

CLEAR 8016H5-BN | 16CH Hybrid 4 in 1 DVR

CLEAR
SKU: CLR-8016H5-BN

16 Channel Digital Video Recorder (DVR), Max. 24CH:Up to 16CH BNC( Coaxial/ Analog Security Cameras,)/16CH Networking / Internet Protocol Security Camera (IPC),5MP Lite@10FPS,4MP Lite@15FPS,High-Definition Multimedia Interface cable (HDMI) /Video Graphics Array connector (VGA) /CVBS(or Spot),Audio,1SATA.



Features

  • 16 CH TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input
  • 16 CH DVRs support 2 / 4 / 8 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input
  • Adopt standard H.265 high profile compression format to get high-quality video at the much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timed / motion / AI recording Playback : 16 CH simultaneously playback
  • Search: time slice, time, event, tag search
  • Express and flexible backup via USB, network, and so on
  • Pentaplex: preview, record, playback, backup, and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with the mobile device
  • Authorization management, log review, and device status review
  • Support 1080P output, true high-resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smartphones with iOS and Andriod OS
More Information
System CompressionH.264/H.265
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Max. Video Channels24CH(Upto 16CH BNC/16CH IP)
Video InputBNC × 16
IP Camera Input8CH
IPC ResolutionUp to 5MP
IPC Frame RateUp to 5MP@30fps

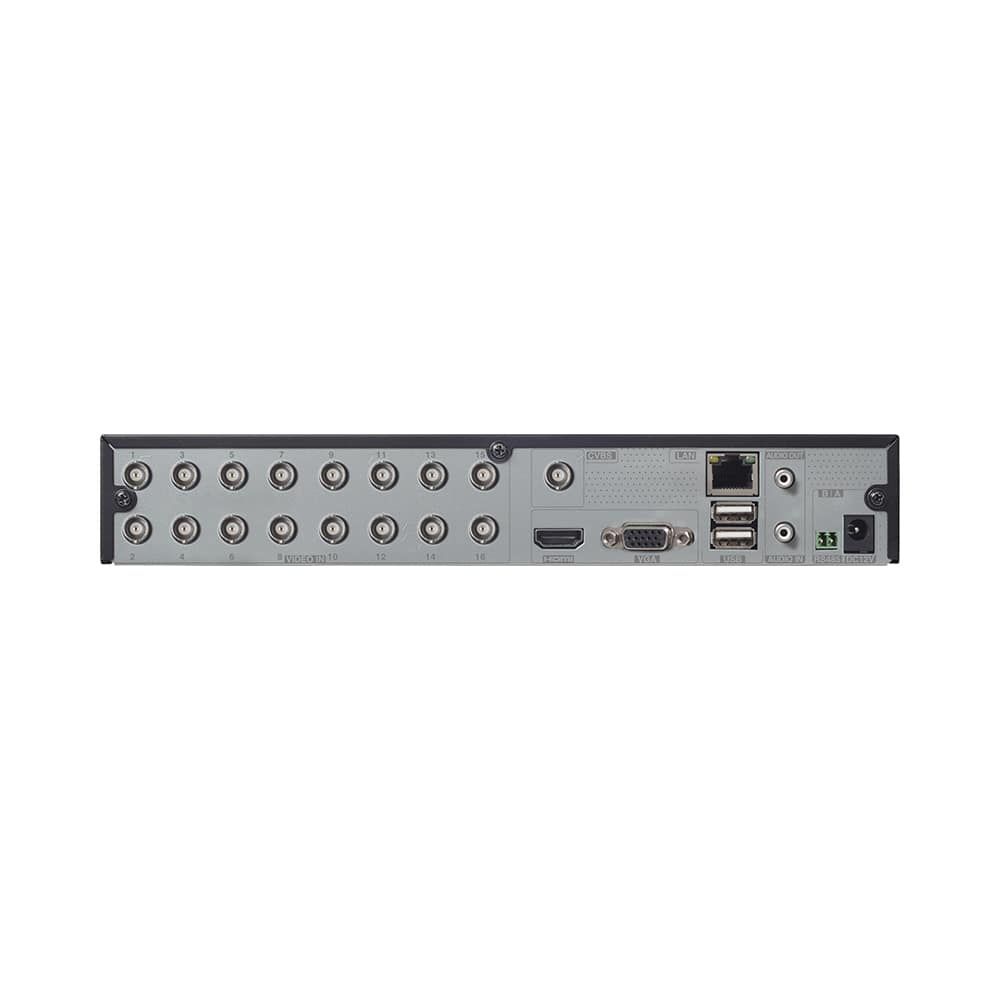

Video Interface1 HDMI, 1 VGA, 1 BNC.
Video ResolutionHDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output )
Multi-Screen Display1 /4/6/8/9/13/16/25
OSDYes
Audio In1-ch, RCA
Audio OutRCA × 1 (linear, 600Ω)
2 Way AudioTake up channel one audio input
Recording Resolution5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1
Recording Frame RateAnalog Channel: 5MP Lite :10fps; 4MP Lite/1080P : 12fps (PAL)/15fps (NTSC); 1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC) IP Channel: 25fps (PAL)/30fps (NTSC)
Playback Channels16-ch
Playback SearchTime/Calendar Search, Event (motion)
Playback Smart SearchHighlighted date and time to display the channel record
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Alarm ModeManual, motion, exception, smart event
Network BandwidthIncoming Bandwidth: 32Mbps , Outgoing Bandwidth: 80Mbps
Network FunctionPlay, pause, FF, FB, digital zoom, etc.
Network Max. UsersMax. 10 users access
MobileiPhone, Android
Cellphone FunctionSupport NAT function and QRCode scanning by mobile phones
RS485RS 485 × 1 (half-duplex)
USBUSB 2.0 × 2 ( in the rear panel )
Remote ConnectionsOptional
Power SupplyDC12V / 3A
Power Consumption≤10W(without HDD )
Internal HDDSATA × 1, up to 10TB
Operating Conditions-10~50°C, 10%~90% (humidity)
Dimensions255× 234× 42 ( W × D × H
    • 33% less
    Market price:$507.00 save $169.00
  • $338.00

OR

16 Channel Digital Video Recorder (DVR), Max. 24CH:Up to 16CH BNC( Coaxial/ Analog Security Cameras,)/16CH Networking / Internet Protocol Security Camera (IPC),5MP Lite@10FPS,4MP Lite@15FPS,High-Definition Multimedia Interface cable (HDMI) /Video Graphics Array connector (VGA) /CVBS(or Spot),Audio,1SATA.



Features

  • 16 CH TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input
  • 16 CH DVRs support 2 / 4 / 8 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input
  • Adopt standard H.265 high profile compression format to get high-quality video at the much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timed / motion / AI recording Playback : 16 CH simultaneously playback
  • Search: time slice, time, event, tag search
  • Express and flexible backup via USB, network, and so on
  • Pentaplex: preview, record, playback, backup, and remote access
  • DHCP, DDNS, PPPoE network protocol
  • Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with the mobile device
  • Authorization management, log review, and device status review
  • Support 1080P output, true high-resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phones
  • Powerful mobile surveillance by smartphones with iOS and Andriod OS
More Information
System CompressionH.264/H.265
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Max. Video Channels24CH(Upto 16CH BNC/16CH IP)
Video InputBNC × 16
IP Camera Input8CH
IPC ResolutionUp to 5MP
IPC Frame RateUp to 5MP@30fps
Video Interface1 HDMI, 1 VGA, 1 BNC.
Video ResolutionHDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output )
Multi-Screen Display1 /4/6/8/9/13/16/25
OSDYes
Audio In1-ch, RCA
Audio OutRCA × 1 (linear, 600Ω)
2 Way AudioTake up channel one audio input
Recording Resolution5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1
Recording Frame RateAnalog Channel: 5MP Lite :10fps; 4MP Lite/1080P : 12fps (PAL)/15fps (NTSC); 1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC) IP Channel: 25fps (PAL)/30fps (NTSC)
Playback Channels16-ch
Playback SearchTime/Calendar Search, Event (motion)
Playback Smart SearchHighlighted date and time to display the channel record
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Alarm ModeManual, motion, exception, smart event
Network BandwidthIncoming Bandwidth: 32Mbps , Outgoing Bandwidth: 80Mbps
Network FunctionPlay, pause, FF, FB, digital zoom, etc.
Network Max. UsersMax. 10 users access
MobileiPhone, Android
Cellphone FunctionSupport NAT function and QRCode scanning by mobile phones
RS485RS 485 × 1 (half-duplex)
USBUSB 2.0 × 2 ( in the rear panel )
Remote ConnectionsOptional
Power SupplyDC12V / 3A
Power Consumption≤10W(without HDD )
Internal HDDSATA × 1, up to 10TB
Operating Conditions-10~50°C, 10%~90% (humidity)
Dimensions255× 234× 42 ( W × D × H
    • SKU
      CLR-8016H5-BN
    • Dimensions (L x W x H)
      11.8 x 9.8 x 2 inches
  • Manufacturer
    CLEAR
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    16 Channels
  • Recorder Type
    DVR
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
