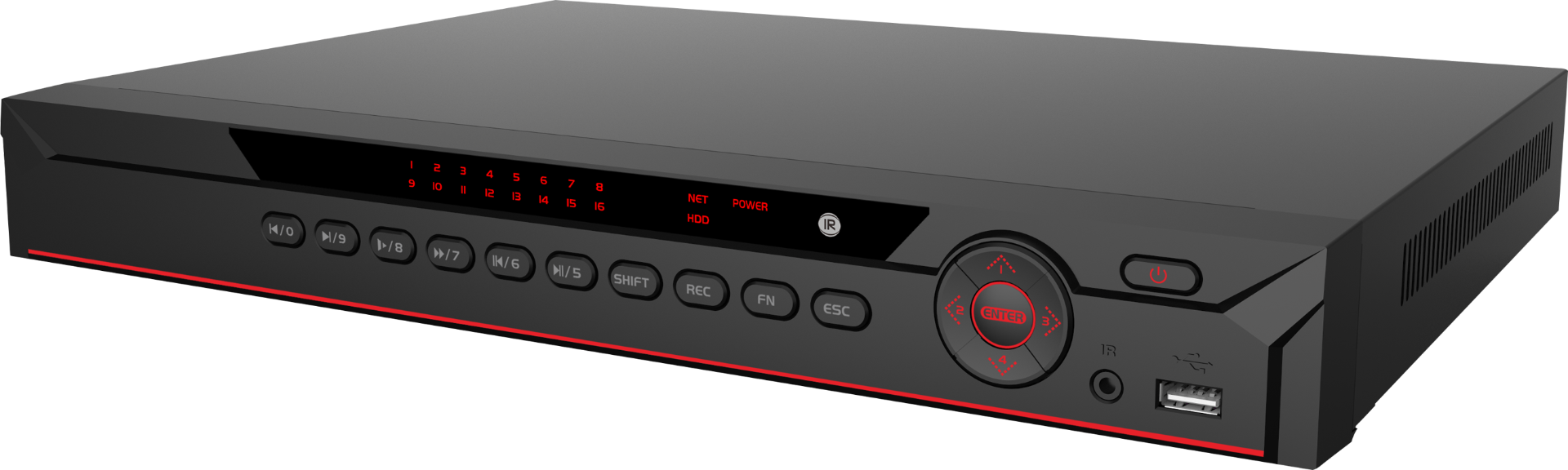

16Channel 1U 16PoE AI Network Video Recorder | NVR402A-16/16P-I
        • 16Channel 1U 16PoE AI Network Video Recorder | NVR402A-16/16P-I
        • 16Channel 1U 16PoE AI Network Video Recorder | NVR402A-16/16P-I

        16Channel 1U 16PoE AI Network Video Recorder | NVR402A-16/16P-I

        iMaxCamPro
        SKU: WECINVR402A-16/16P-I

        Features

        • 16 Channel IP video access
        • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
        • Up to 4 Channel perimeter protection
        • Up to 2 Channel video stream face recognition/8 channel
        • Picture stream face recognition ( with FD camera)
        • Up to 12 face pictures /sec processing
        • Up to 10 face databases with 20,000 face images in total
        • 1-8 PoE Ports support ePoE & EoC
          • 56% less
          Market price:$1137.00 save $642.00
        • $495.00

        OR

        Features

        • 16 Channel IP video access
        • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
        • Up to 4 Channel perimeter protection
        • Up to 2 Channel video stream face recognition/8 channel
        • Picture stream face recognition ( with FD camera)
        • Up to 12 face pictures /sec processing
        • Up to 10 face databases with 20,000 face images in total
        • 1-8 PoE Ports support ePoE & EoC
        More Information
        System CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG
        Main ProcessorMulti-core embedded processor
        Operating SystemEmbedded Linux
        Video Output

        HDMI/VGA: 3840 x 2160, 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768

        Video Resolution3840 x 2160, 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
        IP Camera Input16 Channel
        Recording Resolution12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
        Recording Rate2-ch@8MP(30fps), 8-ch@1080P(30fps)
        Recording ModeManual, Schedule (Continuous, MD(Motion Detection) , Alarm, IVS)
        Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- record: 10 ~ 300 sec
        Audio In1 Channel Input
        Audio Out1 Channel Output
        2 Way AudioSupport
        Alarm In4 Channel
        Alarm Out2 Channel
        Trigger EventsAlarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips
        Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change
        Playback Channels1/4/9/16
        Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
        Playback FunctionPlay, Pause, FF, FB; Digital zoom
        Backup ModeUSB Device/Network
        PerformanceMax 12 face pictures /sec processing 2 channel video stream face recognition / 8 channel picture stream face recognition ( with FD camera)
        Stranger ModeDetect strangers' faces(not in device's face database). Similarity threshold can be set manually.
        AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.
        Database ManagementUp to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries&regions and state can be added to each face picture.
        Database ApplicationEach database can be applied to video channels independently.
        Network Interface1 RJ-45 Port (10/100/1000Mbps)
        PoE Ports16 ports (IEEE802.3af/at) 1-8 ports support ePoE & EoC
        Network Function

        HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP,
        SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm
        Center, IP Search (Support Dahua IP camera, DVR, NVS,
        etc.), P2P

        Network Max. Users128 users
        MobileiPhone, Android
        USB2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0)
        RS2321 Port, for PC Communication and Keyboard
        Internal HDD2 SATA III Ports, Up to 8 TB capacity for each HDD
        Power SupplySingle, AC100-240V, 3.5A
        Power ConsumptionNVR: <6.1W (Without HDD) PoE: Max 25.5W for single port 130W total rated power
        Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
        Dimensions1U, 375mm x 321mm x 53.8mm ; (14.8" x 12.6" x 2.1")
        WeightNet Weight 2.68kg (5.9lb) (without HDD) Gross Weight 4.02kg (8.9lb) (without HDD)

        Download Technical Datasheet

          • SKU
            WECINVR402A-16/16P-I
          • Weight
            8.9 lbs
          • Dimensions (L x W x H)
            14.8 x 12.6 x 2.1 inches
        • Manufacturer
          iMaxCamPro
        • Shipping Lead Time
          Ships Same Day
        • Number of Channels
          16 Channels
        • Hard Drive #1
          I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
        • Remote Login Support
          No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
