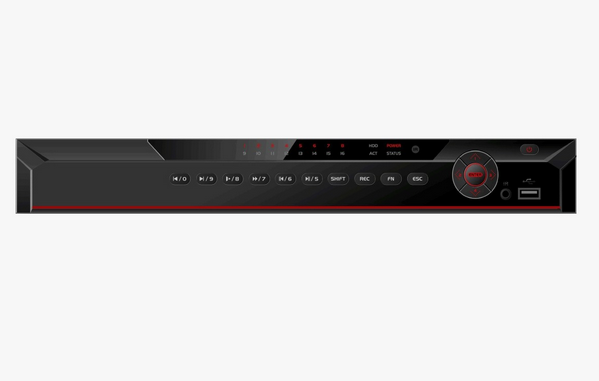

8/16 Channel Penta-brid 4K 1U Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Supports 16/32 channels of IPC access, each channel up to 8MP input; Max 64/128Mbps Incoming Bandwidth
> IoT & POS functionalities
> Smart Search and Intelligent Video System
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Supports 16/32 channels of IPC access, each channel up to 8MP input; Max 64/128Mbps Incoming Bandwidth
> IoT & POS functionalities
> Smart Search and Intelligent Video System
System Overview
With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. Designed as a collection of intelligent encoding algorithm based on H.265, H.265+ significantly improves encoding efficiency and save bandwidth/storage cost, which fully meet the needs of users facing budget constraints who both require quality and performance.
Besides smart codec, the series supports various advanced functions like IoT and POS functionalities, making the whole system smarter and more convenient which is a perfect choice for mid to large-scale business and projects where both high reliability and flexibility are required.
Functions
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
8MP Resolution
The XVR supports up to 8MP HD resolution (3840 x 2160) HDCVI camera and IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.
IoT Functionality
HDCVI IoT can achieve multi-dimensional surveillance by integrating sensors with monitoring video, which not only can generate the report for analysis but also prevent risk in advance.
POS Functionality
This funcion includes POS ticket information overlay and search which can be widely used in retail programs.
Smart Fan Design
The smart fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience.
Spot Output
It is made for a secondary monitor. This allows the operator to view one special monitor that assigned to selected cameras or video inputs from higher security areas.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed.
Face Detection
It is a typical technology being used in a variety of applications for searching or identification of individuals.
Smart Search
This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded LINUX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video and Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input | 8/16 Channel, BNC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDCVI Camera | 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TVI Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CVBS Camera | PAL/NTSC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input | 8+8/16+16 Channel, each channel up to 8MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio In/Out | 4/1, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk | Reuse audio in/out, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | H.265+/H.265/H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Rate | Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps) Sub steram:960H(1~15fps); D1/CIF(1~25/30fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate | 32Kbps ~ 6144Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | AAC(only for the 1st channel), G.711A, G.711U, PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sample Rate | 8KHz, 16 bit Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate | 64Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | 1 HDMI, 1 VGA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display | When IP extension mode not enabled: 8CH: 1/4/8/9 16CH: 1/4/8/9/16 When IP extension mode enabled: 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | 1 RJ-45 Port (1000M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports worldeyecam IP camera, DVR, NVS, etc.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access | 128 users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF 16.12, CGI Conformant | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Detection and Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm input | 8/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Relay Output | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback and Backup | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback | 8CH: 1/4/9 16CH: 1/4/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Mode | USB Device/Network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal HDD | 2 SATA Ports, up to 10TB capacity for each disk | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auxiliary Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS232 | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 | 1 Port, for PTZ Control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 8CH: DC12V/4A 16CH: DC12V/5A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption (without HDD) | 8CH: <10W 16CH: <20W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Dimensions | 1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device with PFH101 Rack Mount Tray | 483mmx281mmx56mm (19.0"x11.1"x2.2") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight (without HDD) | 8CH: 1.7kg (3.7 lb) 16CH: 1.8kg (4.0 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 8CH: 3.0kg (6.6 lb) 16CH: 3.2kg (7.0 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Desktop installation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Support | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Support | worldeyecam, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | FCC: Part 15 Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
UL: UL 60950-1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
