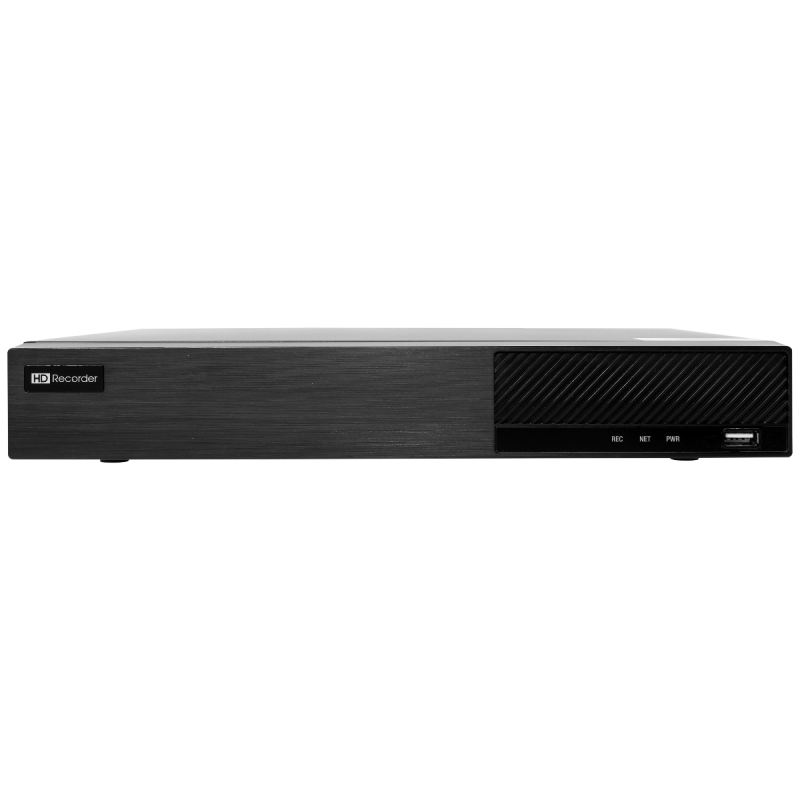

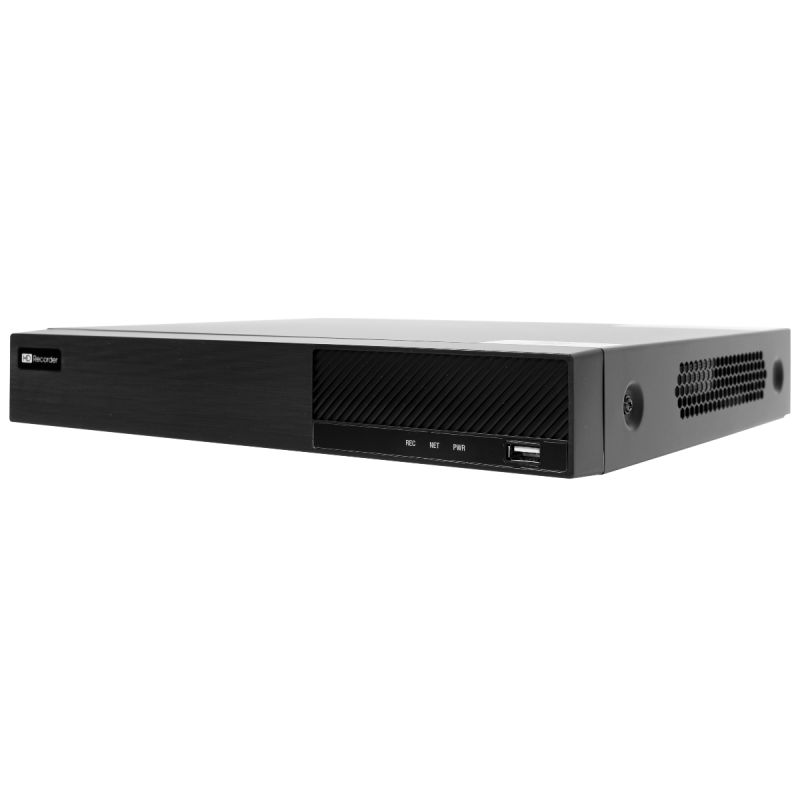

ED8208TEPR | 5MP Titanium 8CH 5-IN-1 Hybrid DVR | Up To 12 IPC

WEC
SKU: WECED8208TEPR
  • 8 CH TVI / CVI / AHD video input
  • 8 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
  • 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
    Up to 12CH IP Camera input
  • Playback: 8CH simultaneously playback; HDMI 1080P output
  • Titanium OS
  • Backup: USB, IE, CMS; support multi-file, file cutting when backup
  • Pentaplex: live, record, playback, backup and remote operation
  • DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
  • Dual stream technology; Multi-user online simultaneously
  • Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
  • Cell phone: iPhone, Android
  • Complete SDK function, easy to integrate with other applications
  • Max HDD: 2 x HDD
    • 50% less
    Market price:$476.00 save $238.00
  • $238.00

OR
  • 8 CH TVI / CVI / AHD video input
  • 8 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
  • 4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
    Up to 12CH IP Camera input
  • Playback: 8CH simultaneously playback; HDMI 1080P output
  • Titanium OS
  • Backup: USB, IE, CMS; support multi-file, file cutting when backup
  • Pentaplex: live, record, playback, backup and remote operation
  • DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
  • Dual stream technology; Multi-user online simultaneously
  • Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
  • Cell phone: iPhone, Android
  • Complete SDK function, easy to integrate with other applications
  • Max HDD: 2 x HDD
More Information
System CompressionH.264 High profile
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video CompatibilityHD-TVI / AHD / HD-CVI / 960H / IP
Max. Video Channels12CH

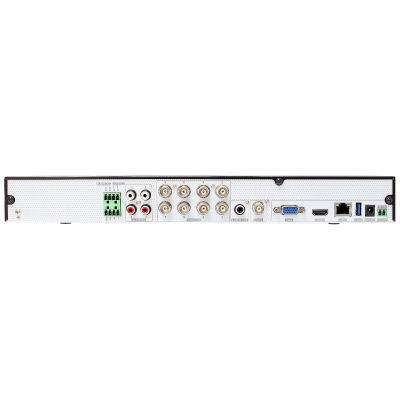

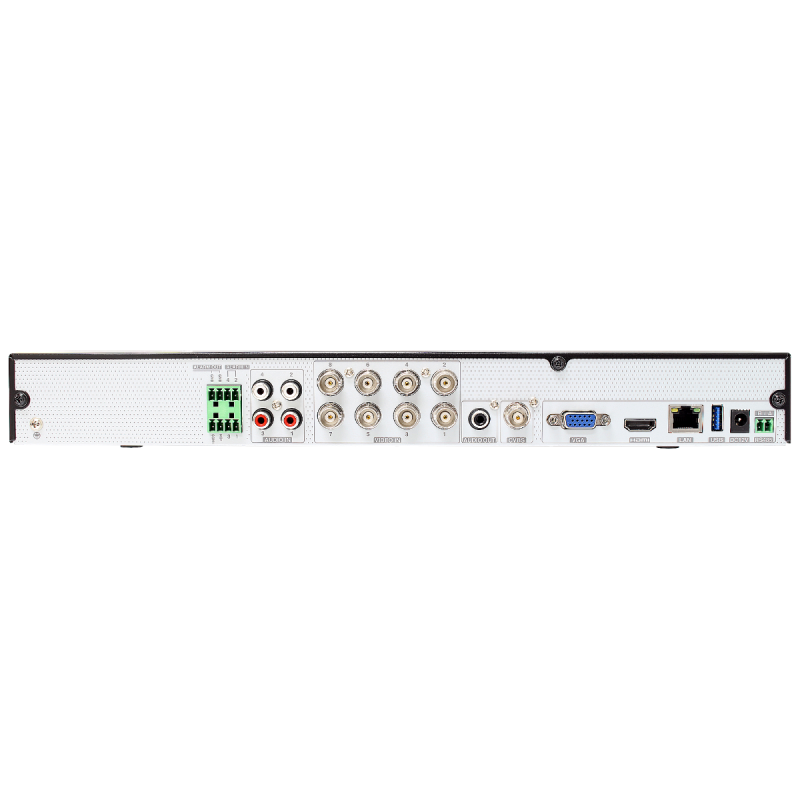

Video InBNC x 8 (TVI/AHD/CVI/960H)
IP Camera InputIPC x 4 (Max.12 IPC In)
IPC Resolution4MP / 3MP / 1080P / 960P / 720P
IPC Frame Rate4MP@30fps
Video InterfaceHDMI/VGA/CVBS(SPOT)
Video Resolution5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1
Multi-Screen DisplayN/A
OSDYes
Audio In4CH, RCA
Audio Out1CH, RCA
2 Way AudioTake up channel one as an audio input
Recording Resolution5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1
Recording Frame Rate

5MP@10fps,
4MP@15fps,
2MP@30fps

Recording EncodeN/A
Recording QualityN/A
Recording ModeManual,sensor, motion, exception
Recording File ManagementLock, Unlock
Playback Channels8CH
Playback SearchTime/Calendar Search, Event (motion)
Playback Smart SearchHighlighted date and time to display the channel record
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Alarm In4CH
Alarm Out1CH
Alarm ModeManual, sensor, motion, exception
Trigger EventsRecord, PTZ move,alarm out,e-mail, etc
Network BandwidthIPC × 4 / 24Mbps
Network FunctionTCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181
Network Max. UsersN/A
MobileiPhone, Android
Cellphone FunctionMulti-screen surveillance (for certain model), record, snapshot, PTZ control, save the device list
RS485RS485 x 1, connect to PTZ or keyboard
USBRear: 1 x USB3.0, Front: 1 x USB2.0
remoteOptional
Power SupplyDC 12V
Power Consumption<10W (without HDD)
Internal HDD2 x SATA (up to 8TB capacity for each disk)
e-SATAN/A
Operating Conditions-10~50°C, 10%~90% (Humidity)
Dimensions15" x 10.6" x 2.0" (380 x 268 x 52mm)

User Manual

User Manual

    • SKU
      WECED8208TEPR
  • Manufacturer
    WEC
  • Hard Drive #2
    I will install my own hard drive, 500GB HDD, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
