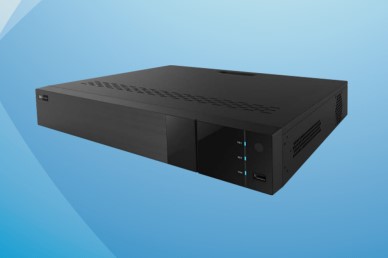

ED8216H5-F2 16CH Hybrid DVR 8mp

        ED8216H5-F2 16CH Hybrid DVR 8mp

        WEC
        SKU: ED8216H5-F2

        ED8216H5-F2 series supports 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1 analog
        and IP video input simultaneously. It adopts the standard H.265 high profile
        compression format and the most advanced SOC technique to ensure real time
        recording in each channel and realize outstanding robustness of the system.
        ED8216H5-F2 series supports 16 CH video input and 8 CH audio input, simultaneous
        16 CH playback. The series of product can meet different security requirements of
        home, financial, commerce, enterprise, transportation and government, etc.


        FEATURES

        16CH TVI / AHD /CVI 8MP / 5MP / 4MP / 3MP / 1080P / 720P / WD1
        16 CH DVRs support 8 / 8 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP
        video input by default
        Adopt standard H.265 high profile compression format to get high-quality
        video at much lower bit rate
        Intuitive and user-friendly Graphics User Interface ( GUI , window style
        operation by mouse
        Multi-type recording: manual / schedule / sensor / motion /analytics recording
        Playback : 16 CH simultaneously playback
        Search: time slice, time, event, tag and smart search
        Express and flexible backup via USB, network and so on
        Pentaplex: preview, record, playback, backup and remote access
        DHCP, DDNS, PPPoE network protocol
        Remote control via Web Client or CMS : preview, playback, backup, PTZ and
        configuration
        Authorization management, log review and device status review
        HDMI 4K output, true high resolution display
        Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
        Support NAT function and QRCode scanning by mobile phones
        Powerful mobile surveillance by smart phones with iOS and Andriod OS.





        Model


        TD-2716BE-HP

        System

        OS

        Embedded Linux

        Video

        Analog Video Input


         BNC ×16

        BNC interface (1.0Vp-p; 75Ω)

        TVI/AHD/CVI4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps (live)

        IP Input Video


        8CH (up to16CH)

        Up to 8MP@30fps

        Total Input


        24CH

        Output

        HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768

        VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

        BNC × 1 : CVBS ( used as the main or spot output )

        Compression

        H.264/H.265

        Multi-screen Display


        1/4/6/8/9/13/16/25

        Audio

        Input

        RCA × 8

        Output

        RCA × 1 (linear, 600Ω)

        Two-way audio

        Take up channel one audio input

        Compression

        G.711(U/A)

        Record

        Resolution

        4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 3MP/1080P/720P/WD1/D1

        Frame Rate

        Analog Channel:

        4K@8fps (PAL/NTSC)

        4K Lite@12fps/15fps (PAL/NTSC)

        5MP@12fps (PAL / NTSC)

        5MP Lite@20fps (PAL / NTSC)

        4MP/3MP@12fps/ 15fps (PAL / NTSC)

        4MP Lite/1080P/720P/WD1/D1@25fps / 30fps (PAL / NTSC)

        IP Channel: 25fps / 30fps (PAL / NTSC)

        Bit Rate

        32Kbps ~ 8Mbps

        Playback

        Playback


        16CH

        Search

        Time slice / time / event / tag /smart search

        Smart Search

        Highlight colors to display the camera record in a certain period of time, different colors refer to different record  events

        Function

        Play, pause, FF, FB, digital zoom, etc.

        Alarm

        Mode

        Manual, motion, exception, smart event

        Input


        16CH

        Output


        4CH

        Network

        Interface

        RJ 45 1000Mbps × 1

        Protocol

        TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP

        Incoming Bandwidth

        32Mbps

        Outgoing Bandwidth

        96Mbps

        Client Connection

        Max. 10 users access

        MobileDevice

        OS

        iOS, Andriod

        Storage

        HDD

        SATA× 2, up to 10TB per HDD; E-SATA× 1

        Backup

        Local Backup

        U disk, USB mobile HDD

        Network Backup

        Yes

        Port

        RS 485

        Yes (half-duplex), connect to PTZ or keyboard

        USB

        USB 2.0 × 1; USB3.0 × 1

        Remote Controller

        Optional

        Others

        Power Supply

        DC12V / 4A

        Consumption


        ≤ 30W ( without HDD )

        Dimensions(mm)

        380 × 268 × 45 ( W × D × H )

        Working Environment

        -10~50°C, 10%~90% (humidity)

        Certificate

        CE, FCC

        Environmental Protection

        Comply with Directive EU RoHS, WEEE, REACH

          • 48% less
