2MP HD WIFI Bullet Network Camera

UNV
SKU: IPC2122LB-AF28(40)WK-G

• High quality image with 2MP, 1/2.9"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 128 G Micro SD card
• IP67 protection
• 3-Axis

 IPC2122LB-AF28WK-GIPC2122LB-AF40WK-G
Camera
Sensor1/2.9", 2.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour: 0.01 lux (F2.0 AGC ON)
0 lux with IR on

Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1~1/100000 s
Adjustment AnglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
S/N>52dB
WDRDWDR
Lens
Lens Type2.8mm@F2.04.0mm@F2.0
IrisFixed
Field of View (H)101.1°83.7°
Field of View (V)55.0°44.6°
Field of View (D)111.0°89.1°
DORI
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm45.018.09.04.5
4.0mm64.325.712.96.4
Illuminator
IR RangeUp to 30m (98 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~6 Mbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video streamDual streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 128GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API , SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Wi-Fi
Wireless StandardsIEEE802.11b/g/n
Frequency Range2.4 GHz ~ 2.4835 GHz
Wireless RangeUp to 130 m (The performance varies based on actual environment)
Channel Bandwidth20 MHz Support
Modulation Mode802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Security64/128-bit WEP,  WPA-PSK/WPA2-PSK
Transmit Power802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @ 54Mbps
802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity802.11b: -90dBm @11Mbps (Typical)
802.11g: -75dBm @54Mbps (Typical)
802.11n: -74dBm @150Mbps (Typical)
Transmission Rate802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFISupport
Network1 RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

RFFCC ID (FCC CFR 47 part15 C)
CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09))

SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
PowerDC 12V±25%
Power consumption: Max 4.0 W
Power InterfaceØ 5.5mm coaxial power plug

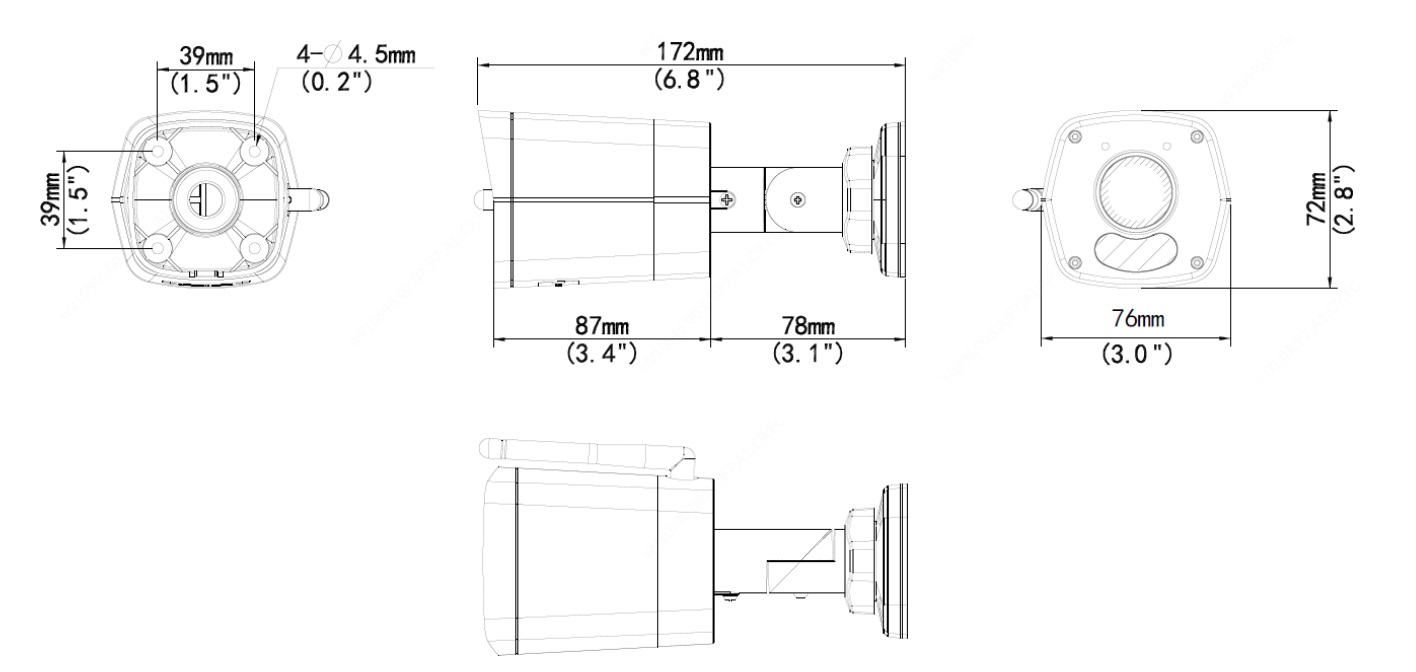

Dimensions (L × W × H)172 × 76 ×72 mm (6.8” × 3” × 2.8”)
Weight0.25 kg (0.55 lb)
MaterialMetal + Plastic
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection4KV
Reset ButtonSupport


Datasheet of IPC2122LB-AF28(40)WK-G

IPC2100 Series-Network Bullet Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00

Network Cameras User Manual-V3.00




    • 20% less
    Market price:$210.00 save $41.00
  • $169.00
