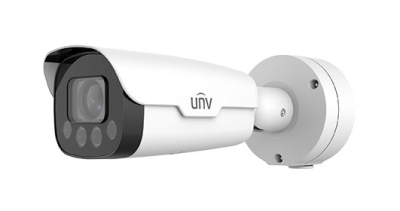

        2MP Lighthunter WDR Network IR Bullet Camera

        SKU: WEC-IPC262EB-HDX10K-I0
        Uniview
        SKU: WEC-IPC262EB-HDX10K-I0
          • 20% less
          Market price:$1948.75 save $389.75
        • $1559.00

        OR






         High quality image with 2MP,1/2.8’’ CMOS sensor

         1920*1080@60fps in the main stream

         Ultra 265, H.265, H.264, MJPEG

         Triple streams offer more choices for different clients in an integrated solution

         10X optical zoom allows for closer viewing of subjects

         Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

         People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

         LightHunter technology ensures ultra-high image quality in low illumination environment

         Up to 120 dB Optical WDR (Wide Dynamic Range)

         Built-in heater, support normal start-up at low temperature

         DC12V or PoE+(IEEE 802.3at) power supply

         IPC262EB-HDX10K-I0
        Camera
        Sensor1/2.8", 2.0 megapixel, progressive scan, CMOS
        Min. IlluminationColour:0.002 lux (F1.6, AGC ON)
        0 lux with IR
        Day/NightIR-cut filter with auto switch (ICR)
        ShutterAuto/Manual, 1 ~ 1/100000s
        WDR120dB
        S/N>52dB
        Lens
        Lens type5~50mm@F1.6, AF automatic focusing and motorized zoom lens
        IrisDC-iris
        Field of View (H)4.71°~55.87°
        Field of View (V)2.65°~33.21°
        Field of View (D)5.56°~68.72°
        DORI
        DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
        582.2(269.8ft)32.9(107.9ft)16.4(54.0ft)8.2(27.0ft)
        50977.6(3207.3ft)391.0(1282.9ft)195.5(641.5ft)97.8(320.7ft)
        Illuminator
        IR RangeUp to 100m (328.1 ft) IR range
        Wavelength850nm
        IR On/Off ControlAuto/Manual
        Video
        Video CompressionUltra 265, H.265, H.264, MJPEG
        Frame RateMain Stream: 1080P (1920*1080),Max 60fps;
        Sub Stream: 1080P (1920*1080), Max 60fps;
        Third Stream: D1 (720*576), Max 60fps
        Video Bit Rate128 Kbps~16 Mbps
        U-codeSupport
        ROIUp to 8 areas
        Video streamTriple streams
        OSDUp to 8 OSDs
        Privacy MaskUp to 4 areas per scene
        White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
        Digital noise reduction2D/3D DNR
        Smart IRSupport
        FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
        HLCSupport
        BLCSupport
        DefogDigital Defog
        Intelligent
        Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
        Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
        Events
        Basic DetectionMotion detection, Audio detection, Tampering alarm
        General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
        Audio
        Audio CompressionG.711U, G.711A
        Audio Bitrate64 Kbps
        Two-way AudioSupport
        SuppressionSupport
        Sampling Rate8KHz
        Storage
        Edge StorageMicro SD, up to 256 GB
        Network StorageANR,NAS(NFS)
        Network
        ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
        Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
        User/HostUp to 32 users. 3 user levels: administrator, operator and common user
        SecurityPassword protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
        ClientEZStation
        EZLive
        EZView
        Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
        Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
        Interface
        Audio I/O1/1
        Alarm I/O2/1
        Serial Port1 RS485
        Built-in MicN/A
        Built-in SpeakerN/A
        Built-in HeaterSupport
        WIFIN/A
        Network1 * RJ45 10M/100M Base-TX Ethernet
        Video Output1 BNC
        Certification
        EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
        FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
        SafetyCE LVD (EN 62368-1:2014+A11:2017)
        CB (IEC 62368-1:2014)
        UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
        EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
        ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
        IK10 (IEC 62262:2002)
        General
        PowerDC12V(±25%) , PoE+ (IEEE 802.3at)
        Power consumption: Max 13W
        Power InterfaceØ 5.5mm coaxial power plug

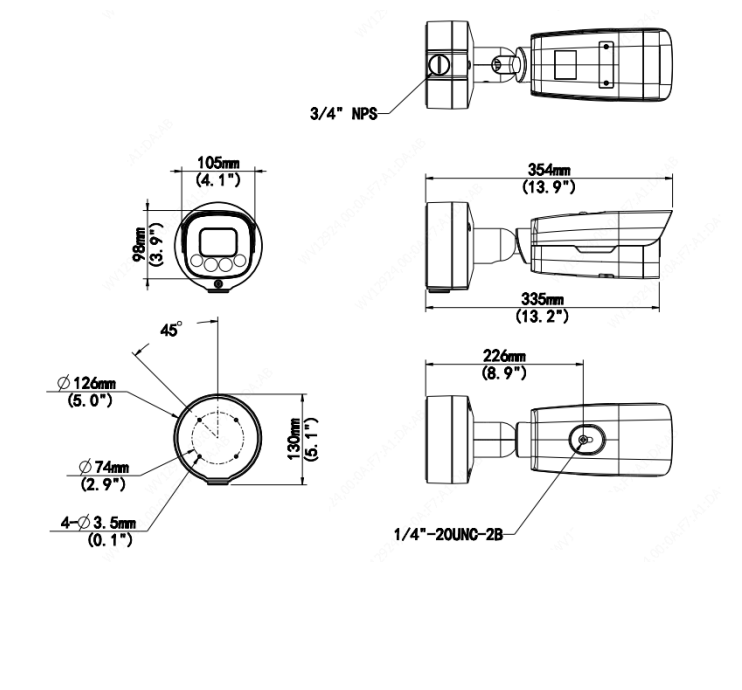

        Dimensions (L x W x H)354 x 105 x 98mm (13.9“ x 4.1“ x 3.9”)
        Weight1.93kg(4.25lb)
        Working Environment-40℃~60℃(-40°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)
        Storage Environment-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
        Surge protection6KV
        Reset buttonSupport
        HeaterSupport
