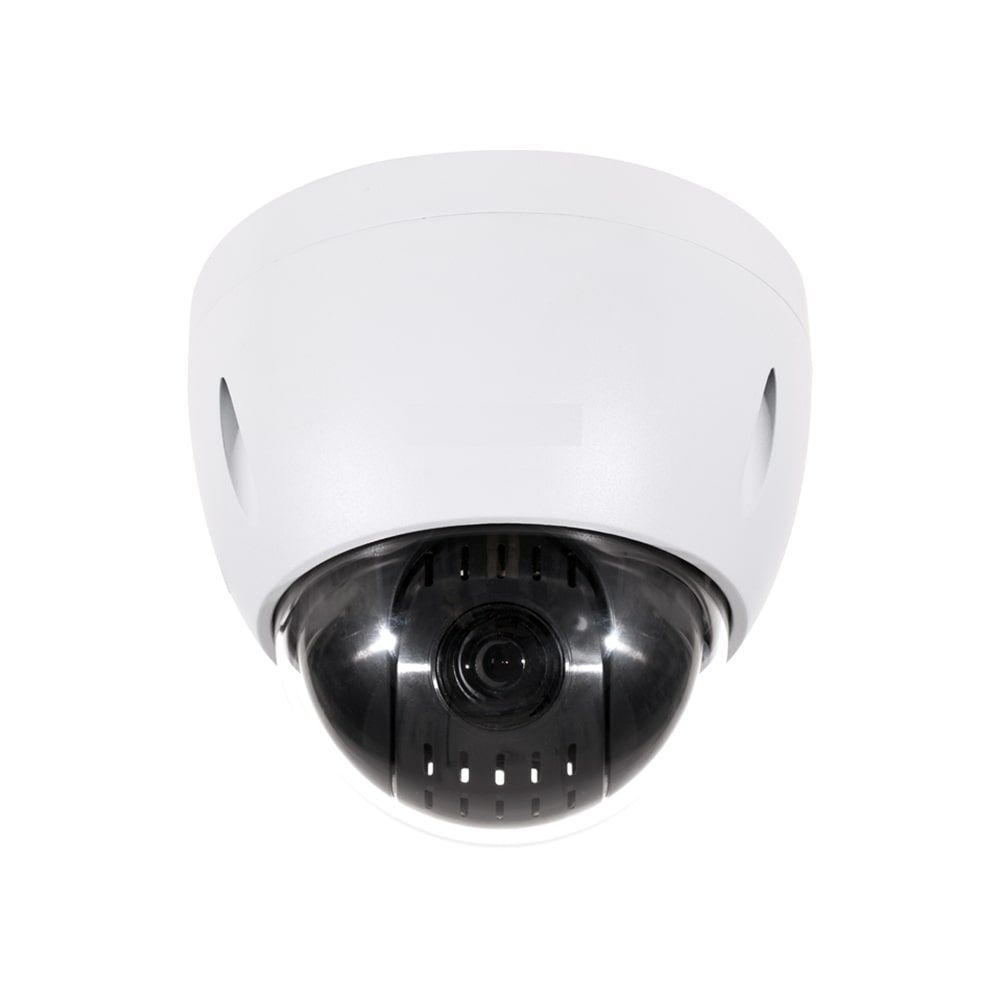

2MP 12x Mini HDCVI PTZ Camera | PDC42L215H CSP-CVIPTZ15X

iMaxCamPro
SKU: IMX -PDC42L215H

    • Powerful 12x optical zoom
    • 25/30fps@720P
    • DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
    • Max 300°/s pan speed, 360° continuous pan rotation
    • Control over coaxial cable, long distance real-time transmission
    • HD and SD switchable
    • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
    • Built-in 2/1 alarm in/out
    • Support intelligent 3D positioning with DH-SD protocol
    • IP66, OSD
  • More Information
    Image Sensor1/2.8" Exmor CMOS
    Image Size1944(H) x 1092(V)
    Electronic Shutter1/1s~1/30,000s
    Minimum IlluminationColor:0.05Lux/F1.6, B/W: 0.005Lux/F1.6
    S/N RatioMore then 55dB
    Video Output1-channel BNC HDCVI high definition video output / CVBS standard definition video output (Can switch) Tester out (1-channel BNC HDCVI high definition video output / CVBS standard definition video output)
    Day / NightAuto(ICR) / Color / B/W
    BLC ModeBLC / HLC / DWDR
    White BalanceAuto, ATW, Indoor, Outdoor, Manual
    Gain ControlAuto / Manual
    Digital Noise Reduction2D/3D
    Privacy MaskingUp to 24 areas
    Optical Zoom12x
    Digital Zoom16x
    Electronic Image Stabilization (EIS)N/A
    DefogN/A
    Wide Dynamic RangeN/A
    DORI DistanceN/A
    Focal Length5.1-61.2mm (12x Optical zoom)
    Max. ApertureF1.6 ~ F3.0
    Focus ControlAuto / Manual
    Angle of ViewH: 51.3°~4.64°
    Close Focus Distance100mm ~ 1000mm
    IR LEDsN/A
    IR DistanceN/A
    IR On/Off ControlN/A
    Pan/Tilt RangePan: 0°~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
    Preset SpeedPan: 300°/s; Tilt:200°/s
    PTZ Mode5 Pattern, 8 Tour, Auto Pan, Auto Scan
    Speed SetupHuman-oriented focal length / speed adaptation
    Power Up ActionAuto restore to previous PTZ and lens status after power failure
    Idle MotionActivate Preset / Scan / Tour / Pattern if there is no command in the specified period
    Video Resolution1080P
    Video Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
    Smart TrackingN/A
    Audio In1
    Audio OutN/A
    Alarm In2
    Alarm Out1
    CertificationsN/A
    RS4851
    Power Supply24V AC / 1.5A ±10%
    Power Consumption10W
    Operating Temperature-10°C ~ +60°C Less than 90% RH
    Ingress ProtectionIP66
    Dimensions⌀170mm x 155mm
    Weight1.8kg
    • 4% less
    Market price:$600.00 save $22.00
  • $578.00

OR

    • Powerful 12x optical zoom
    • 25/30fps@720P
    • DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
    • Max 300°/s pan speed, 360° continuous pan rotation
    • Control over coaxial cable, long distance real-time transmission
    • HD and SD switchable
    • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
    • Built-in 2/1 alarm in/out
    • Support intelligent 3D positioning with DH-SD protocol
    • IP66, OSD
  • More Information
    Image Sensor1/2.8" Exmor CMOS
    Image Size1944(H) x 1092(V)
    Electronic Shutter1/1s~1/30,000s
    Minimum IlluminationColor:0.05Lux/F1.6, B/W: 0.005Lux/F1.6
    S/N RatioMore then 55dB
    Video Output1-channel BNC HDCVI high definition video output / CVBS standard definition video output (Can switch) Tester out (1-channel BNC HDCVI high definition video output / CVBS standard definition video output)
    Day / NightAuto(ICR) / Color / B/W
    BLC ModeBLC / HLC / DWDR
    White BalanceAuto, ATW, Indoor, Outdoor, Manual
    Gain ControlAuto / Manual
    Digital Noise Reduction2D/3D
    Privacy MaskingUp to 24 areas
    Optical Zoom12x
    Digital Zoom16x
    Electronic Image Stabilization (EIS)N/A
    DefogN/A
    Wide Dynamic RangeN/A
    DORI DistanceN/A
    Focal Length5.1-61.2mm (12x Optical zoom)
    Max. ApertureF1.6 ~ F3.0
    Focus ControlAuto / Manual
    Angle of ViewH: 51.3°~4.64°
    Close Focus Distance100mm ~ 1000mm
    IR LEDsN/A
    IR DistanceN/A
    IR On/Off ControlN/A
    Pan/Tilt RangePan: 0°~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
    Preset SpeedPan: 300°/s; Tilt:200°/s
    PTZ Mode5 Pattern, 8 Tour, Auto Pan, Auto Scan
    Speed SetupHuman-oriented focal length / speed adaptation
    Power Up ActionAuto restore to previous PTZ and lens status after power failure
    Idle MotionActivate Preset / Scan / Tour / Pattern if there is no command in the specified period
    Video Resolution1080P
    Video Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
    Smart TrackingN/A
    Audio In1
    Audio OutN/A
    Alarm In2
    Alarm Out1
    CertificationsN/A
    RS4851
    Power Supply24V AC / 1.5A ±10%
    Power Consumption10W
    Operating Temperature-10°C ~ +60°C Less than 90% RH
    Ingress ProtectionIP66
    Dimensions⌀170mm x 155mm
    Weight1.8kg
    • SKU
      IMX -PDC42L215H
    • Weight
      0.48 lbs
  • Manufacturer
    iMaxCamPro
  • Camera Type
    Box
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
