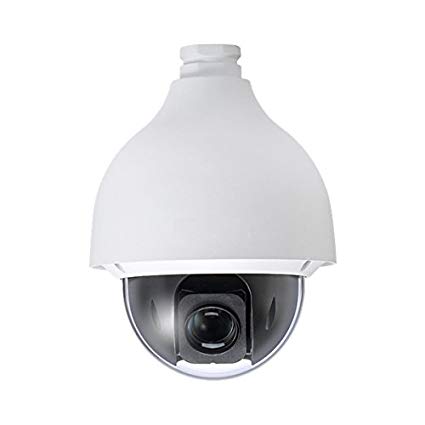

2MP 25x Starlight PTZ HDCVI Camera
        • 2MP 25x Starlight PTZ HDCVI Camera
        • 2MP 25x Starlight PTZ HDCVI Camera

        2MP 25x Starlight PTZ HDCVI Camera

        WEC
        SKU: WECSD50225I-HC(-S3)

        > 1/2.8” 2Megapixel STARVIS™ CMOS
        > Powerful 25x optical zoom
        > Starlight technology
        > 120dB true WDR, 3D DNR
        > Max. 25/30fps@1080P, 25/30/50/60fps@720P
        > IP67, IK10

          • 54% less
          Market price:$1136.00 save $618.00
        • $518.00

        OR

        PRODUCT FEATURES

        > 1/2.8” 2Megapixel STARVIS™ CMOS
        > Powerful 25x optical zoom
        > Starlight technology
        > 120dB true WDR, 3D DNR
        > Max. 25/30fps@1080P, 25/30/50/60fps@720P
        > IP67, IK10

        System Overview

        Featuring with powerful optical zoom and accurate pan/tilt/zoom performance, the SD50 series PTZ camera can provide large monitoring range and great detail. The camera delivers 1080P resolution at 25/30 fps, with 25x optical zoom, and has very excellent low light performance due to adopting the latest starlight technology. SD50 series PTZ is equipped with quick and smooth control, high quality image and good protection, which make it can meet most of the requirements of video surveillance applications.

        Functions

        Simplicity

        HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

        Starlight Technology

        For challenging low-light applications, worldeyecam’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

        Wide Dynamic Range

        Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, true WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

        Environmental

        With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. he camera complies to an IK10 impact rating. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.

        Protection

        This camera suits even the harsh conditions for outdoor applications. Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.



        Camera

        Image Sensor

        1/2.8” STARVIS™ CMOS

        Effective Pixels

        1920(H) x 1080(V), 2 Megapixels

        Scanning System

        Progressive

        Electronic Shutter Speed

        PAL: 1/3s~1/30,000s
        NTSC: 1/4s~1/30,000s

        Minimum Illumination

        Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6

        S/N Ratio

        More than 55dB

        IR Distance

        N/A

        IR On/Off Control

        N/A

        IR LEDs

        N/A

        Lens

        Focal Length

        4.8mm~120mm

        Max. Aperture

        F1.6 ~ F4.4

        Angle of View

        H: 62.8° ~ 2.6°

        Optical Zoom

        25x

        Focus Control

        Auto/Manual

        Close Focus Distance

        100mm~ 1000mm

        DORI Distance

        Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

        Detect

        Observe

        Recognize

        Identify

        1613m(5259ft)

        646m(2119ft)

        323m(1060ft)

        161m(528ft)

        PTZ

        Pan/Tilt Range

        Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180°

        Manual Control Speed

        Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s

        Preset Speed

        Pan: 500° /s; Tilt: 500° /s

        Presets

        300

        PTZ Mode

        5 Pattern, 8 Tour, Auto Pan ,Auto Scan

        Speed Setup

        Human-oriented focal Length/ speed adaptation

        Power up Action

        Auto restore to previous PTZ and lens status after power failure

        Idle Motion

        Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

        Protocol

        DH-SD, Pelco-P/D (Auto recognition)

        Video

        Resolution

        1080P(1920×1080)/720P(1280×720)

        Frame Rate

        25/30fps@1080P, 25/30/50/60fps@720P

        Video Output

        1-channel BNC high definition video output/ CVBS standard definition video output (switchable)

        Day/Night

        Auto(ICR) / Color / B/W

        OSD Menu

        Support

        Backlight Compensation

        BLC / HLC / WDR (120dB)

        White Balance

        Auto,ATW,Indoor,Outdoor,Manual

        Gain Control

        Auto / Manual

        Noise Reduction

        Ultra DNR (2D/3D)

        Digital Zoom

        16x

        Flip

        180°

        Privacy Masking

        Up to 24 areas

        Certifications

        Certifications

        CE: EN55032/EN55024/EN50130-4

        FCC: Part15 subpartB,ANSI C63.4- 2014

        UL: UL60950-1+CAN/CSA C22.2,No.60950-1

        Interface

        Video Interface

        1

        Audio Interface

        1 channel in

        RS485

        1

        Alarm I/O

        2/1

        Electrical

        Power Supply

        AC24V/1.5A(±10%)

        Power Consumption

        13W,23W (Heater on)

        Environmental

        Operating Conditions

        -40°C ~ 60°C (-40°F ~ +140°F) / Less than 90% RH

        Ingress Protection

        IP67

        Vandal Resistance

        IK10

        Construction

        Casing

        Metal

        Dimensions

        Φ186.0(mm) x 253(mm)

        Net Weight

        2.5kg(5.51lb)

        Gross Weight

        4.5kg(9.92lb)



        PRODUCT FEATURES

        • Data Sheet

        • User manual

        • Drawings

        • Drawings

        • A&E Document

          • SKU
            WECSD50225I-HC(-S3)
          • Weight
            5.51 lbs
        • Manufacturer
          WEC
        • Camera Type
          PTZ
        • Camera Signal
          HD-CVI
        • Camera Resolution
          1080p
