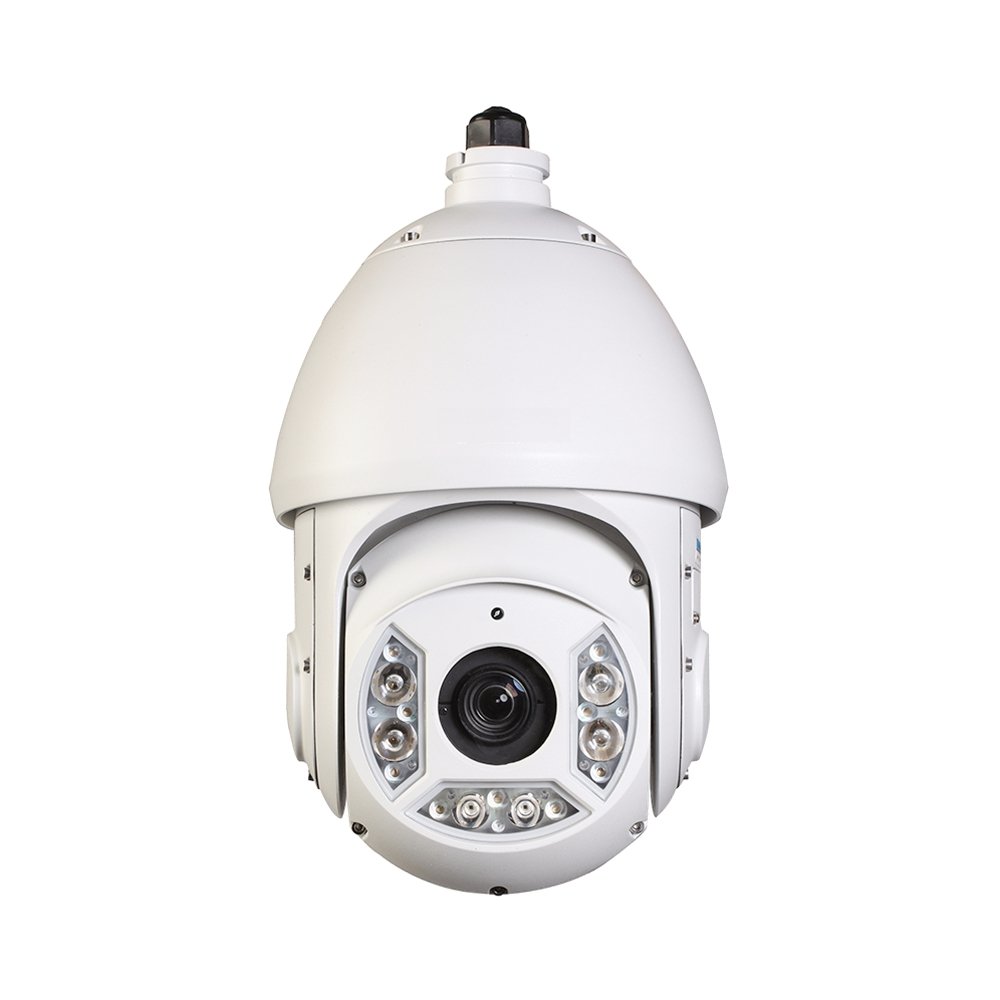

2MP 30x Starlight IR PTZ HDCVI Camera

WEC
SKU: WECSD6C230I-HC(-S3)

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 30x optical zoom
> Starlight technology
> 120dB true WDR, 3D DNR
> Max. 25/30fps@1080P, 25/30/50/60fps@720P
> IR distance up to 150m
> IP66

    • 46% less
    Market price:$2516.00 save $1158.00
  • $1358.00

OR

PRODUCT FEATURES

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 30x optical zoom
> Starlight technology
> 120dB true WDR, 3D DNR
> Max. 25/30fps@1080P, 25/30/50/60fps@720P
> IR distance up to 150m
> IP66

System Overview

Featuring with powerful optical zoom and accurate pan/tilt/zoom performance, the SD6C series PTZ camera can provide large monitoring range and great detail. The camera delivers 1080P resolution at 25/30 fps, with 30x optical zoom, and has very excellent low light performance due to adopting the latest starlight technology. SD6C series PTZ is equipped with smooth control, high quality image and good protection, which make it can meet most of the requirements of video surveillance applications.

Functions

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Starlight Technology

For challenging low-light applications, worldeyecam’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Environmental

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.

Protection

This camera suits even the harsh conditions for outdoor applications. Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.



Camera

Image Sensor

1/2.8” STARVIS™ CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s

Minimum Illumination

Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio

More than 55dB

IR Distance

Distance up to 150m (492ft)

IR On/Off Control

Auto/Manual

IR LEDs

6

Lens

Focal Length

4.5mm~135mm

Max. Aperture

F1.6 ~ F5.0

Angle of View

H: 67.8° ~ 2.4°

Optical Zoom

30x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

1862m(6109ft)

744m(2441ft)

372m(1220ft)

186m(610ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s

Preset Speed

Pan: 240° /s; Tilt: 200° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Resolution

1080P(1920×1080) / 720P(1280×720)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output/ CVBS standard definition video output (switchable)

Day/Night

Auto(ICR) / Color / B/W

OSD Menu

Support

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto,ATW,Indoor,Outdoor,Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

1

Audio Interface

1 channel in

RS485

1

Alarm I/O

2/1

Electrical

Power Supply

AC24V/3A(±10%)

Power Consumption

13W,23W (IR on)

Environmental

Operating Conditions

-40°C ~ 60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection

IP66

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ205(mm) x 336(mm)

Net Weight

5kg(11.02lb)

Gross Weight

8.3kg(18.30lb)



DOWNLOADS

• Data Sheet

• User manual

• Drawings

• Drawings

• A&E Document

    • SKU
      WECSD6C230I-HC(-S3)
    • Weight
      11.02 lbs
  • Manufacturer
    WEC
  • Camera Type
    PTZ
  • Camera Signal
    HD-CVI
  • Camera Resolution
    1080p
  • Lens Size
    30X
