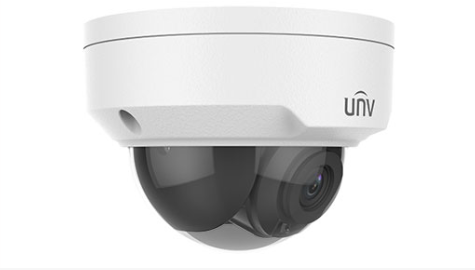

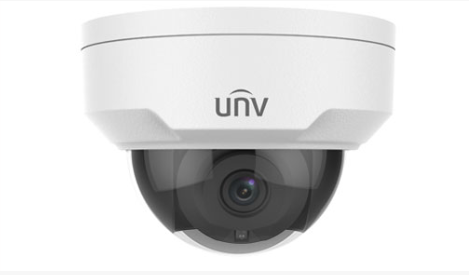

2MP HD IR Fixed Dome Network Camera

UNV
SKU: IPC322LB-SF28K-A

• High quality image with 2MP, 1/2.9"CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra H.265,H.265, H.264
• Smart IR, up to 30m (98ft) IR distance
• Day/night functionality
• 2D/3D DNR (Digital Noise Reduction)
• Supports Micro SD card
• DC12V or PoE(IEEE 802.3af) power supply
• IP67 protection
• IK10 protection
• 2-Axis

 IPC322LB-SF28K-A
Camera
Sensor1/2.9", 2.0 megapixel, progressive scan, CMOS
Min. IlluminationColour:0.01 lux (F2.0, AGC ON)
0 lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
WDRDWDR
S/N>55dB
Lens
Lens type2.8mm@F2.0
IrisFixed
Field of View (H)101.1°
Field of View (V)55.0°
Field of View (D)111.0°
Adjustment anglePan: 0° ~355°Tilt: 0° ~ 75°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.845.0(147.6ft)18.0(59.1ft)9.0(29.5ft)4.5(14.8ft)
Illuminator
IR RangeUp to 30m (98 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra H.265,H.265, H.264
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate128 Kbps~6144Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas per scene
ROIUp to 8 areas
Video streamDual streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Events
Basic DetectionMotion detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge StorageMicro SD, up to 128 GB
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, Qos, ,SSL/TLS
Compatible IntegrationONVIF (Profile S,Profile T,Profile G),API,SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
ClientEZStation
EZLive
EZView
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicN/A
Built-in SpeakerN/A
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
PowerDC12V(±25%) , PoE(IEEE 802.3af)
Power consumption: Max 5W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)Φ109 x 81mm (Ø4.3” x 3.2”)
Weight0.358kg(0.79lb)
MaterialMetal + Plastic
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection4KV
Reset buttonN/A


Datasheet of IPC322LB-SF28K-A

IPC320 Series-Network Fixed Dome Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00

Network Cameras User Manual-V3.00
