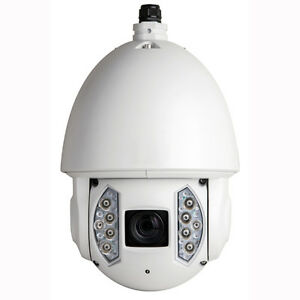

2MP 30x Starlight IR PTZ Network Camera
        • 2MP 30x Starlight IR PTZ Network Camera
        • 2MP 30x Starlight IR PTZ Network Camera

        2MP 30x Starlight IR PTZ Network Camera

        WEC
        SKU: WECSD6AE230FN-HNISD6AEA230FN-HNI

        > 1/1.8” 2Megapixel CMOS
        > Powerful 30x optical zoom
        > Starlight technology
        > Max. 25/30fps@1080P, 25/30/50/60fps@720P
        > Support Hi-PoE
        > IR distance up to 200m

        > IP67 , IK10

          • 50% less
          Market price:$4196.00 save $2098.00
        • $2098.00

        OR

        PRODUCT FEATURES

        > 1/1.8” 2Megapixel CMOS
        > Powerful 30x optical zoom
        > Starlight technology
        > Max. 25/30fps@1080P, 25/30/50/60fps@720P
        > Support Hi-PoE
        > IR distance up to 200m

        > IP67 , IK10

        System Overview

        Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare.

        Functions

        Starlight Technology

        For challenging low-light applications, worldeyecam’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.002 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

        Wide Dynamic Range

        The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

        Auto-tracking

        This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

        Environmental

        worldeyecam cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. The camera complies with the IK10 Vandal Resistance impact rating. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

        Protection

        The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 8KV lightning rating provides effective protection for both the camera and its structure against lightning.

        Interoperability

        The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.



        Camera

        Image Sensor

        1/1.8" CMOS

        Effective Pixels

        1920(H) x 1080(V), 2 Megapixels

        RAM/ROM

        1024M/64M

        Scanning System

        Progressive

        Electronic Shutter Speed

        1/1s~1/30,000s

        Minimum Illumination

        Color: 0.002Lux@F1.5; B/W: 0.0002Lux@F1.5; 0Lux@F1.5 (IR on)

        IR Distance

        Distance up to 200m (656ft)

        IR On/Off Control

        Auto/Manual

        IR LEDs

        10

        Lens

        Focal Length

        6mm~180mm

        Max. Aperture

        F1.5~ F4.3

        Angle of View

        H: 61.2° ~ 2.1°

        Optical Zoom

        30x

        Focus Control

        Auto/Manual

        Close Focus Distance

        100mm~ 1000mm

        DORI Distance

        Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

        Detect

        Observe

        Recognize

        Identify

        1920m(6299ft）

        768m（2520ft)

        384m(1260ft)

        192m(630ft)

        PTZ

        Pan/Tilt Range

        Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°

        Manual Control Speed

        Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s

        Preset Speed

        Pan: 240° /s; Tilt: 200° /s

        Presets

        300

        PTZ Mode

        5 Pattern, 8 Tour, Auto Pan ,Auto Scan

        Speed Setup

        Human-oriented focal Length/ speed adaptation

        Power up Action

        Auto restore to previous PTZ and lens status after

        power failure

        Idle Motion

        Activate Preset/ Scan/ Tour/ Pattern if there is no

        command in the specified period

        Protocol

        DH-SD, Pelco-P/D (Auto recognition)

        Intelligence

        Event Trigger

        Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

        Auto Tracking

        Support

        IVS

        Tripwire, Intrusion, Abandoned/Missing

        Advanced Intelligent Functions

        Face Detection, Heat Map

        Video

        Compression

        H.264 / MJPEG

        Streaming Capability

        3 Streams

        Resolution

        1080P(1920×1080)/720P(1280×720)/D1(704×576/ 704×480)/CIF(352×288/352×240)

        Frame Rate

        Main stream: 1080P(1~25/30fps), 720P(1~50/60fps)

        Sub stream1: D1/CIF(1 ~ 25/30fps)

        Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps)

        Bit Rate Control

        CBR/VBR

        Bit Rate

        H.264: 448K~8192Kbps, MJPEG: 4096K~20480Kbps

        Day/Night

        Auto(ICR) / Color / B/W

        Backlight Compensation

        BLC / HLC / WDR(120dB)

        White Balance

        Auto, ATW, Indoor, Outdoor, Manual

        Gain Control

        Auto / Manual

        Noise Reduction

        Ultra DNR (2D/3D)

        Motion Detection

        Support

        Region of Interest

        Support

        Electronic Image Stabilization (EIS)

        Support

        Defog

        Support

        Digital Zoom

        16x

        Flip

        180°

        Privacy Masking

        Up to 24 areas

        Audio

        Compression

        G.711a/G.711mu/G.726/AAC

        Network

        Ethernet

        RJ-45 (10Base-T/100Base-TX)

        Protocol

        IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

        ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

        DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

        Interoperability

        ONVIF Profile S&G, API

        Streaming Method

        Unicast / Multicast

        Max. User Access

        20 users

        Edge Storage

        Local PC for instant recording, Micro SD card 128GB

        Web Viewer

        IE, Chrome, Firefox, Safari

        Management Software

        Smart PSS, DSS, DMSS

        Smart Phone

        IOS, Android

        Certifications

        Certifications

        CE: EN55032/EN55024/EN50130-4

        FCC: Part15 subpartB,ANSI C63.4- 2014

        UL: UL60950-1+CAN/CSA C22.2,No.60950-1

        Electrical

        Video Interface

        1 port(BNC, 1.0V[p-p], 75Ω)

        RS485

        1

        Audio I/O

        1/1

        Alarm I/O

        7/2

        Electrical

        Power Supply

        AC24V/3A(±25%), Hi-PoE

        Power Consumption

        24W, 38W (IR on)

        Environmental

        Operating Conditions

        -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH

        Ingress Protection

        IP67

        Vandal Resistance

        IK10

        Construction

        Casing

        Metal

        Dimensions

        Φ240(mm) x 382 (mm)

        Net Weight

        6.75kg(14.88lb)

        Gross Weight

        10.1kg(22.27lb)



        DOWNLOADS

        • Datasheet

        • User Manual

        • Drawings

          • SKU
            WECSD6AE230FN-HNISD6AEA230FN-HNI
          • Weight
            14.88 lbs
        • Manufacturer
          WEC
        • Camera Type
          PTZ
        • Camera Signal
          IP
        • Camera Resolution
          1080p
        • Lens Size
          30X
        • Sensor
          2 MP Image Sensor
