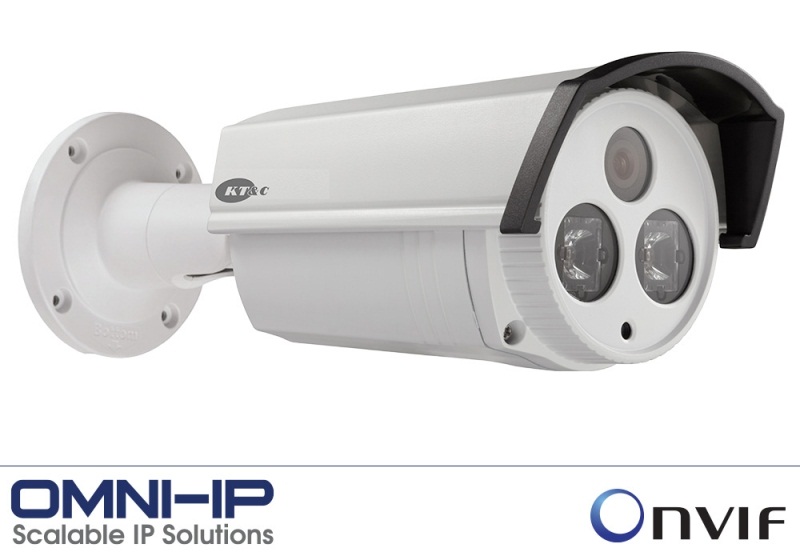

3MP Network EXIR Super Beam LED Rugged Outdoor Bullet Camera
- Omni IP ‘hand free’ Plug-and-Play system: just connect to PoE switch and stream video
- View and record 3MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor - 3MP images contain NINE times the pixel detail versus traditional analog images - At 3X digital zoom, a 3MP images display more detail than a basic analog camera
- Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
- Low light sensitivity of .07lux with - True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity - Low/no light coverage enhanced by dual EXIR Super Beam IR LEDs with 164 foot range - Smart IR Control of image contrast despite bright, close in objects in scene
- Extensive OSD capabilities, many controlled directly from Omni IP NVR - Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s - Region of Interest allocates bandwidth to maximize resolution in priority areas within scene - Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired) - In-camera detection of motion, video loss or tampering with alarm reporting to NVR - 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization - DWDR compensates bright or unbalanced scene lighting - BLC specifically for handling scenes with back lit subjects
- Lens focal length of 4mm covers 70° field of view; optional 6mm & 12mm lenses offer greater magnification*
- Dual PoE/12VDC power
- PoE for efficiency and convenience - 12VDC for legacy system upgrade or beyond PoE cable distance range - Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
- Bullet housing with sunshield is adjustable for 360°pan and rotation, and 90° tilt for flexible positoning
- Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
- Customize installation by mounting to 4” electrical box or KA-BRJB1 Junction Box; or use KA-BRPM1 Pole Moun, KA-BRCM1 Corner Mount with or without Junction box.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Camera packaging contents:
- Omni IP ‘hand free’ Plug-and-Play system: just connect to PoE switch and stream video
- View and record 3MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor - 3MP images contain NINE times the pixel detail versus traditional analog images - At 3X digital zoom, a 3MP images display more detail than a basic analog camera
- Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
- Low light sensitivity of .07lux with - True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity - Low/no light coverage enhanced by dual EXIR Super Beam IR LEDs with 164 foot range - Smart IR Control of image contrast despite bright, close in objects in scene
- Extensive OSD capabilities, many controlled directly from Omni IP NVR - Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s - Region of Interest allocates bandwidth to maximize resolution in priority areas within scene - Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired) - In-camera detection of motion, video loss or tampering with alarm reporting to NVR - 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization - DWDR compensates bright or unbalanced scene lighting - BLC specifically for handling scenes with back lit subjects
- Lens focal length of 4mm covers 70° field of view; optional 6mm & 12mm lenses offer greater magnification*
- Dual PoE/12VDC power
- PoE for efficiency and convenience - 12VDC for legacy system upgrade or beyond PoE cable distance range - Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
- Bullet housing with sunshield is adjustable for 360°pan and rotation, and 90° tilt for flexible positoning
- Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
- Customize installation by mounting to 4” electrical box or KA-BRJB1 Junction Box; or use KA-BRPM1 Pole Moun, KA-BRCM1 Corner Mount with or without Junction box.
Network%20Camera%20User%20Manual%20V5.2.0%20Rev%201.pdf
Quick%20Guide%20KNC-p3BR_XIR%20Super%20Beam%20EXIR%20Bullet%20Camera%20V2.pdf
| Image Sensor | 1/3" Progressive Scan CMOS |
| Total Pixels (H x V) | 2048x1536 3 Megapixel @ Maximum Resolution |
| Day & Night | True Day & Night with ICR; Controllable by light sensor or via schedule |
| Min. Illumination | .07lux @ F1.2, AGC on 0 Lux (IR LED On; IR may be disabled in OSD) |
| IR LED | Two Super Beam High Power IR LED 850nm |
| IR Distance | 164 ft. (50m) Nominal IR performance depends on scene reflectivity |
| Smart IR | OSD Controlled Off/On |
| Shutter Speed | 1/30s ~ 1/100,000s |
| DWDR/BLC | DWDR: Off/On, Level Adjust BLC: Off/Top, Bottom, Left, Right, Center Weighted |
| White Balance | AWB; Locked; Incandescent, Warm, Natural or Fluorescent Light |
| 3D DNR | Off/On, Level Adjust |
| Focal Length (standard) Lens Options | 4mm F=2.0 6mm, 12mm |
| Lens Angle | 2048 × 1536: Angle of view: 70°(4mm), 43.3°(6mm), 20.6°(12mm) 1920 × 1080: Angle of view: 79°(4mm), 49°(6mm), 23.2°(12mm) |
| Lens Type | Fixed focal length |
| Main Stream | 2048x1536 1920x1080 1280x720 |
| Supported Resolutions Sub Stream | 320x240 352x240 640x480 704x480 |
| Maximum Frame Rates | 20FPS@2048x1536 ; 30FPS@1920x1080 ; 30FPS@1280x720 |
| Compression | H.264 Main Profile & MJPEG |
| Bit Rate | Nominal rates from drop down: 1024, 2048, 3072, 4096, 6144, 8192 Kbps Customized rates: 32Kbps~12288Kbps |
| Streaming | Dual-Stream at different frame rates and bandwidth |
| Region of Interest | Image detail priority/enhancement for up to four user defined areas for main and/or sub stream |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, Hue, AGC Gain, Image rotation/mirror, 50/60Hz system, Text overlay (Name, Time/Date, Fixed Labels; adjustable for position, size, color, etc.), Privacy masking |
| LAN | Ethernet 10/100 Base-T (RJ-45 Type) with weather sealed shell |
| Security | Multiple user access levels with password protection; Watermarking of captured video IP address filter; IEEE802.1X (Authentication) |
| Protocol | IPv4, IPv6, HTTP, TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RSTP, RTCP, uPnP, IGMP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1X, QoS, Bonjour |
| Network Storage | Video upload to PC, FTP or NAS |
| VMS Compatibility | ONVIF, PSIA, CGI, ISAPI |
| Supported Browsers | Internet Explorer, Chrome, FireFox, Safari (with O/S compatible plug-in) |
| Video Motion Detection | With arming schedule and multiple actions: notify NVR, send email, upload to FTP, trigger alarm output |
| Alarm Triggers | Intelligent video Motion Detection, Video Loss, Tampering |
| Alarm Events | Notify NVR, send email, upload to FTP, trigger alarm output |
| Angle Adjustment | Pan: 0~180° Tilt: 0~90° Rotate: 0~360° |
| Power | PoE class 3 (IEEE 802.3af) 12VDC +/- 10% 7W nominal; 9W IR LED on |
| Interface | 8P/8C RJ-45F for Network and PoE Power (DC 12V) Input |
| Environmental | IP66 (Weather Resistant) |
| Operating Temperature | -22 °F ~ 140 °F (-30 °C ~ 60 °C) |
| Dimension | 4.13” × 4.13” × 10.38” [105×104.8×263.1mm] |
| Other | Fits 4" electrical box |
| Weight | 1.5 lbs./700g |
| Mounting Options | KA-BRJB1 Junction Box; KA-BRPM1 Pole Mount, KA-BRCM1 Corner Mount with or without Junction Box |
