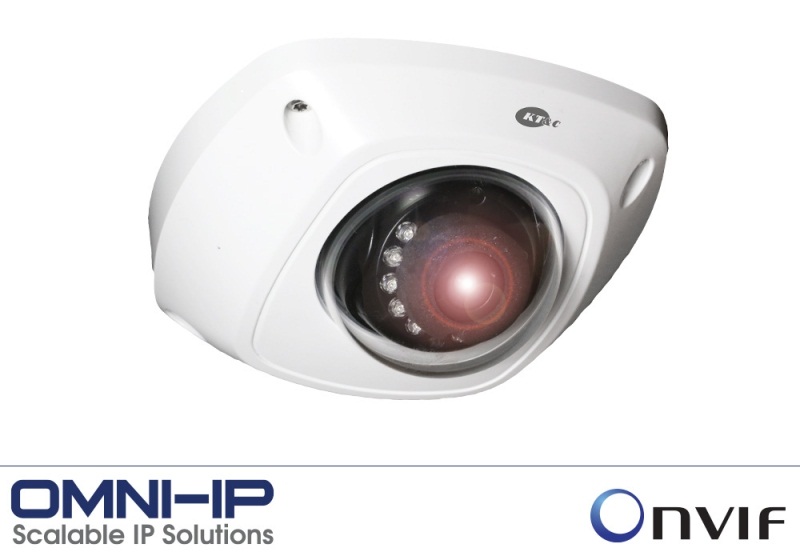

3MP Network IR Rugged Outdoor Low Profile Camera

KT&C
SKU: KNC-p3LR4IR
  • Omni IP ‘hand free’ Plug-and-Play system: just connect to PoE switch and stream video
  • View and record 3MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor - 3MP images contain NINE times the pixel detail versus traditional analog images - At 3X digital zoom, a 3MP images display more detail than a basic analog camera
  • Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
  • Low light sensitivity of .07lux with - True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity - Low/no light coverage enhanced by 10 IR LEDs with 33 foot range - Smart IR Control of image contrast despite bright, close in objects in scene
  • Extensive OSD capabilities, many controlled directly from Omni IP NVR - Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s - Region of Interest allocates bandwidth to maximize resolution in priority areas within scene - Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired) - In-camera detection of motion, video loss or tampering with alarm reporting to NVR - 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization - DWDR compensates bright or unbalanced scene lighting - BLC specifically for handling scenes with back lit subjects
  • Lens focal length of 4mm covers 70° field of view; optional 2.8mm lens for wider view or 6mm for greater magnification*
  • Dual PoE/12VDC power
  • PoE for efficiency and convenience - 12VDC for legacy system upgrade or beyond PoE cable distance range
  • Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
  • Low profile housing is adjustable +/- 30° pan, 360° rotatation, and 75° tilt for flexible wall or ceiling mounting; fits single gang electrical box
  • Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
  • Customize installation with KA-LRTC1 Threaded Cap for Pendant Mount; KA-LRWM1 Wall Mount (special order); KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount for use with KA-LRWM1
KNC-p3LR3IR: 2.8mm KNC-p3LR4IR: 4mm KNC-p3LR6IR: 6mm
    • 46% less
    Market price:$360.00 save $166.00
  • $194.00

OR
Camera packaging contents:

  • Omni IP ‘hand free’ Plug-and-Play system: just connect to PoE switch and stream video
  • View and record 3MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor - 3MP images contain NINE times the pixel detail versus traditional analog images - At 3X digital zoom, a 3MP images display more detail than a basic analog camera
  • Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
  • Low light sensitivity of .07lux with - True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity - Low/no light coverage enhanced by 10 IR LEDs with 33 foot range - Smart IR Control of image contrast despite bright, close in objects in scene
  • Extensive OSD capabilities, many controlled directly from Omni IP NVR - Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s - Region of Interest allocates bandwidth to maximize resolution in priority areas within scene - Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired) - In-camera detection of motion, video loss or tampering with alarm reporting to NVR - 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization - DWDR compensates bright or unbalanced scene lighting - BLC specifically for handling scenes with back lit subjects
  • Lens focal length of 4mm covers 70° field of view; optional 2.8mm lens for wider view or 6mm for greater magnification*
  • Dual PoE/12VDC power
  • PoE for efficiency and convenience - 12VDC for legacy system upgrade or beyond PoE cable distance range
  • Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
  • Low profile housing is adjustable +/- 30° pan, 360° rotatation, and 75° tilt for flexible wall or ceiling mounting; fits single gang electrical box
  • Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
  • Customize installation with KA-LRTC1 Threaded Cap for Pendant Mount; KA-LRWM1 Wall Mount (special order); KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount for use with KA-LRWM1
KNC-p3LR3IR: 2.8mm KNC-p3LR4IR: 4mm KNC-p3LR6IR: 6mm


KNC-p3LR4IR.pdf

Network%20Camera%20User%20Manual%20V5.2.0%20Rev%201.pdf

Quick%20Guide%20KNC-p3LR_IR%20Low%20Profile%20Camera%20V2.pdf

Image Sensor1/3" Progressive Scan CMOS
Total Pixels (H x V)2048x1536 3 Megapixel @ Maximum Resolution
Day & NightTrue Day & Night with ICR; Controllable by light sensor or via schedule
Min. Illumination.07lux @ F1.2, AGC on 0 Lux (IR LED On; IR may be disabled in OSD)
IR LED10 IR LED 850nm
IR Distance33 ft. (10m) Nominal IR performance depends on scene reflectivity
Smart IROSD Controlled Off/On
Shutter Speed1/30s ~ 1/100,000s
DWDR/BLCDWDR: Off/On, Level Adjust; BLC: Off/Top, Bottom, Left, Right, Center Weighted
White BalanceAWB; Locked; Incandescent, Warm, Natural or Fluorescent Light
3D DNROff/On, Level Adjust
Focal Length (standard) Lens Options4mm F=2.0, 2.8mm, 6mm
Lens Angle2048 × 1536: Angle of view: 86°(2.8mm), 70°(4mm), 43.3°(6mm) 1920 × 1080: Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm)
Lens TypeFixed focal length
Main Stream2048x1536 1920x1080 1280x720
Supported Resolutions Sub Stream320x240 352x240 640x480 704x480
Maximum Frame Rates20FPS@2048x1536 ; 30FPS@1920x1080 ; 30FPS@1280x720
CompressionH.264 Main Profile & MJPEG
Bit RateNominal rates from drop down: 1024, 2048, 3072, 4096, 6144, 8192 Kbps Customized rates: 32Kbps~12288Kbps
StreamingDual-Stream at different frame rates and bandwidth
Region of InterestImage detail priority/enhancement for up to four user defined areas for main and/or sub stream
Image SettingsBrightness, Contrast, Saturation, Sharpness, Hue, AGC Gain, Image rotation/mirror, 50/60Hz system, Text overlay (Name, Time/Date, Fixed Labels; adjustable for position, size, color, etc.), Privacy masking
LANEthernet 10/100 Base-T (RJ-45 Type) with weather sealed shell
SecurityMultiple user access levels with password protection; Watermarking of captured video IP address filter; IEEE802.1X (Authentication)
ProtocolIPv4, IPv6, HTTP, TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RSTP, RTCP, uPnP, IGMP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1X, QoS, Bonjour
Network StorageVideo upload to PC, FTP or NAS
VMS CompatibilityONVIF, PSIA, CGI, ISAPI
Supported BrowsersInternet Explorer, Chrome, FireFox, Safari (with O/S compatible plug-in)
Video Motion DetectionWith arming schedule and multiple actions: notify NVR, send email, upload to FTP, trigger alarm output
Alarm TriggersIntelligent video Motion Detection, Video Loss, Tampering
Alarm EventsNotify NVR, send email, upload to FTP, trigger alarm output
SD Card SlotMicro SD / SDHC / SDXC up to 64Gb
Angle AdjustmentPan: -30°-30°, Tilt: 0~75°, Rotation: 0-360°
PowerPoE class 3 (IEEE 802.3af) 12VDC +/- 10% 5W nominal; 7W IR LED on
Interface8P/8C RJ-45F for Network and PoE Power (DC 12V) Input
EnvironmentalIP66 (Weather Resistant); IK10 Vandal Resistant
Operating Temperature-22 °F ~ 140 °F (-30 °C ~ 60 °C)
Dimension3.91” x 3.81” x 2.09” (99.3 x 96.6 x 52.9mm)
OtherFits single gang electrical box
Weight.55 lbs./250g
Mounting OptionsKA-LRTC1 Threaded Cap for Pendant Mount; KA-LRWM1 Wall Mount (special order); KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount for use with KA-LRWM1
