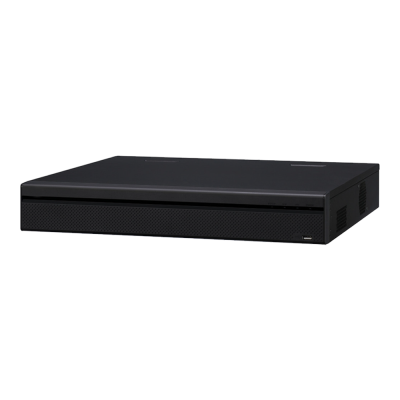

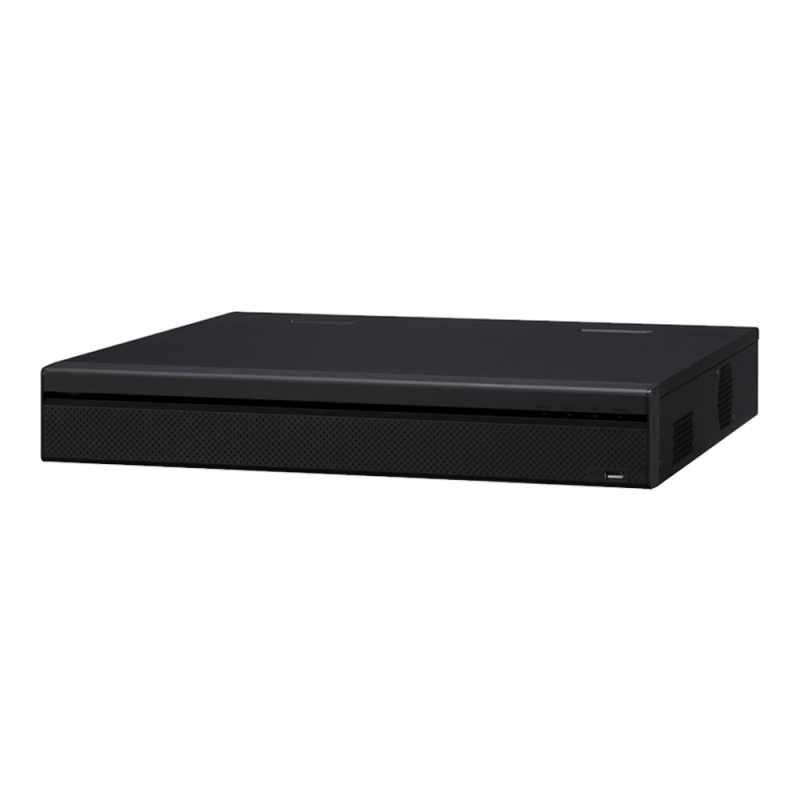

32 Channel Penta-brid 1080P 2U Digital Video Recorder
Features
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 32 channels IP camera inputs, each channel up to 8MP; Max 128Mbps incoming bandwidth
- First 16 channels support Tripwire & Intrusion; First 2 channels support Object Abandoned & Missing
- Supports HDMI2 for spot output
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The 32 Channel Penta-brid 1080P 2U Digital Video Recorder is a high-performance security system that provides comprehensive video surveillance for large-scale businesses and organizations. It features a powerful embedded processor and runs on an embedded Linux operating system, which allows for reliable and efficient performance.
This DVR supports H.265+/H.265/H.264+/H.264 video compression formats, providing high-quality video footage while minimizing storage and bandwidth requirements. It comes equipped with 1 HDMI, 1 VGA, and 1 TV video interface, and supports multi-screen display modes, including 1/4/8/9/16/25/36.
The DVR has 32 HDCVI camera inputs, with each channel capable of supporting up to 6MP IP camera input. It supports various recording resolutions, including 4M-N, 1080P, 1080N, 720P, 960H, D1, and CIF, and allows for manual, schedule-based, and motion detection-based recording modes. It also features playback channels and functions, such as play, pause, FF, FB, and digital zoom.
Other features of this DVR include USB and network backup modes, 2-way audio support, trigger events for recording and alarms, video detection for motion and tampering, and network functions such as HTTP, TCP/IP, IPv4/IPv6, and more. It supports up to 128 network users and is interoperable with ONVIF 2.42 and CGI conformant devices.
The DVR comes with 2 SATA ports and supports up to 10TB capacity, and has 2 USB ports for easy device connectivity. It has a sleek 2U design and is constructed with high-quality materials for durability and long-lasting performance.
Features
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 32 channels IP camera inputs, each channel up to 8MP; Max 128Mbps incoming bandwidth
- First 16 channels support Tripwire & Intrusion; First 2 channels support Object Abandoned & Missing
- Supports HDMI2 for spot output
| System Compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |

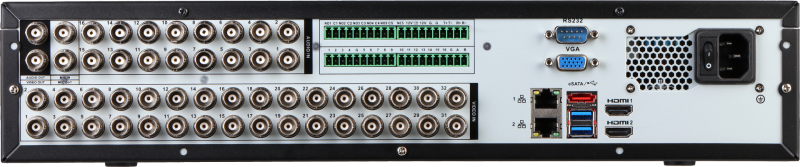

| Video Interface | 2 HDMI, 1 VGA, 1 TV |
| Video Resolution | HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 HDMI 2 / VGA: 1920×1080, 1280×1024, 1280×7201920×1080, 1280×1024, 1280×720 |
| Multi-Screen Display | 1/4/8/9/16/25/36 |
| HDCVI Camera Input | 32 Channel, BNC |
| IP Camera Input | 32 Channel |
| OSD | Yes |
| Recording Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Recording Frame Rate | Main stream: the 1st & 2nd channel 5M-N（1~10fps）, others 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps) |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Playback Channels | 1/4/9/16 |
| Playback Search | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Audio In | 16 CH |
| Audio Out | 1 CH |
| 2 Way Audio | 1 mic in, 1 mic out, BNC |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis |
| Alarm In | 16 |
| Alarm Relay Output | 6 |
| Network Interface | 2 RJ-45 Port (1000M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Network Max. Users | 128 |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Mobile | iPhone, Android |
| RS485 | 1 Port, for PTZ Control |
| USB | 2 USB 2.0, 2 USB 3.0 |
| RS232 | 1 Port, for PC communication & keyboard |
| RS422 | 1 Port, for PTZ control |
| Power Supply | AC100V ~ 240V, 50/60Hz |
| Power Consumption | <35W (Without HDD) |
| Internal HDD | 8 SATA Port, up to 10TB capacity for each disk |
| e-SATA | N/A |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ 131°F), 0~90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH |
| Dimensions | 440mm×455mm×95mm (17.3" x 17.9" x 3.7") |
| Weight | Net Weight: 7kg (15.4 lb) (without HDD) Gross Weight: 9.8kg (21.6lb) |
