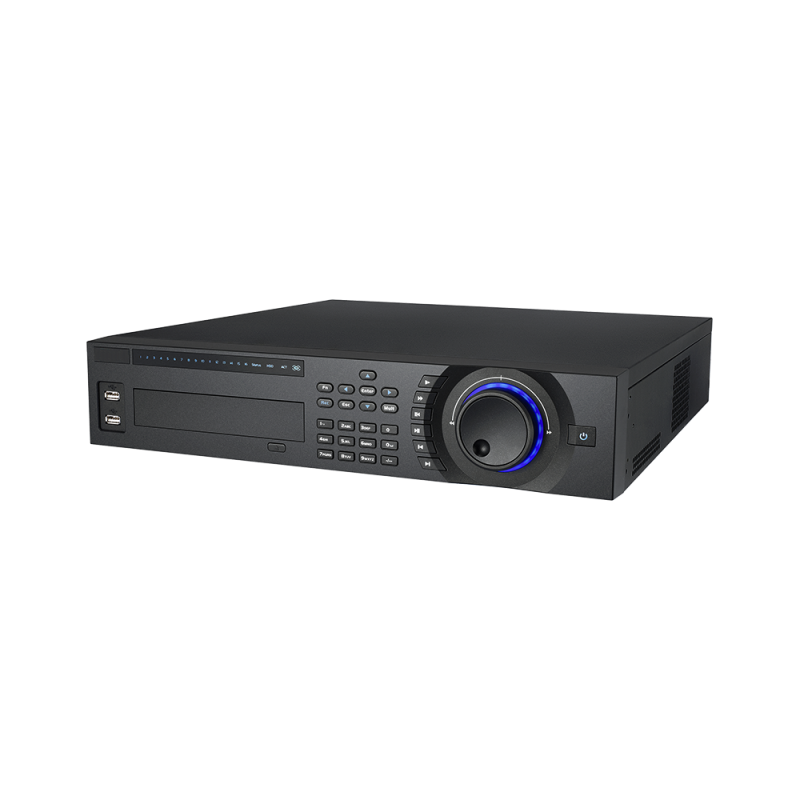

32 Channel Ultra 4K H.265 Network Video Recorder | NVR708S-32-4KS2

iMaxCamPro
SKU: WECNVR708S-32-4KS2

Features

  • Intel Processor
  • Max 32 IP Camera Inputs
  • Max 384Mbps Incoming Bandwidth
  • Up to 12MP Resolution for Preview and Playback
  • Supports RAID 0/1/5/6/10
  • Smart Tracking and Intelligent Video
More Information
System CompressionH.265/H.264/MJPEG
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Output2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA
Video Resolution3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
IP Camera Input32CH
Display Split1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16
Recording Resolution12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Recording Rate384Mbps
Bit Rate16kbps~20Mbps for per channel
Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Audio In1
Audio Out1
2 Way Audio1 Channel Input, 1 Channel Output, RCA
Alarm In16 Channel, Low Level Effective, Green Terminal Interface
Alarm Out8 Channel, NO/NC Programmable, Green Terminal Interface
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Relay Output8 Channel, NO/NC Programmable, Green Terminal Interface
Playback Channels128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode
Playback SearchTime/Calendar Search, Event (motion)
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Backup ModeUSB Device/Network/Internal SATA burner/eSATA Device
PerformanceMax 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera)
Stranger ModeDetect strangers' faces(not in device's face database). Similarity threshold can be set manually.
AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database ManagementUp to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture.
Database ApplicationEach database can be applied to video channels independently.
Network Interface2 RJ-45 Ports (10/100/1000Mbps)
PoE PortsN/A
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
Network Max. Users128 users
MobileiPhone, Android
USB4 ports (2 Rear USB3.0,2 Front USB2.0)
RS4851 port, for PTZ control
RS2321 port, for communication with PC or keyboard
Internal HDD8 SATA III Ports, up to 8TB capacity for each HDD
e-SATA1 eSATA port
Power SupplySingle, AC 100~240V, 50/60 Hz
Power Consumption<20W (Without HDD)
Operating Conditions-10 ~+55°C / 10~90%RH / 86~106kpa
Dimensions2U, 440mm x 451.08mm x 94.85mm (17.3" x 17.8" x 3.7")
WeightNet Weight 9kg (19.8 lb) (without HDD) Gross Weight 10.5kg (23.1 lb)
    • 33% less
    Market price:$2097.00 save $699.00
  • $1398.00

OR

Features

  • Intel Processor
  • Max 32 IP Camera Inputs
  • Max 384Mbps Incoming Bandwidth
  • Up to 12MP Resolution for Preview and Playback
  • Supports RAID 0/1/5/6/10
  • Smart Tracking and Intelligent Video
More Information
System CompressionH.265/H.264/MJPEG
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Output2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA
Video Resolution3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
IP Camera Input32CH
Display Split1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16
Recording Resolution12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Recording Rate384Mbps
Bit Rate16kbps~20Mbps for per channel
Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Audio In1
Audio Out1
2 Way Audio1 Channel Input, 1 Channel Output, RCA
Alarm In16 Channel, Low Level Effective, Green Terminal Interface
Alarm Out8 Channel, NO/NC Programmable, Green Terminal Interface
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Relay Output8 Channel, NO/NC Programmable, Green Terminal Interface
Playback Channels128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode
Playback SearchTime/Calendar Search, Event (motion)
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Backup ModeUSB Device/Network/Internal SATA burner/eSATA Device
PerformanceMax 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera)
Stranger ModeDetect strangers' faces(not in device's face database). Similarity threshold can be set manually.
AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database ManagementUp to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture.
Database ApplicationEach database can be applied to video channels independently.
Network Interface2 RJ-45 Ports (10/100/1000Mbps)
PoE PortsN/A
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
Network Max. Users128 users
MobileiPhone, Android
USB4 ports (2 Rear USB3.0,2 Front USB2.0)
RS4851 port, for PTZ control
RS2321 port, for communication with PC or keyboard
Internal HDD8 SATA III Ports, up to 8TB capacity for each HDD
e-SATA1 eSATA port
Power SupplySingle, AC 100~240V, 50/60 Hz
Power Consumption<20W (Without HDD)
Operating Conditions-10 ~+55°C / 10~90%RH / 86~106kpa
Dimensions2U, 440mm x 451.08mm x 94.85mm (17.3" x 17.8" x 3.7")
WeightNet Weight 9kg (19.8 lb) (without HDD) Gross Weight 10.5kg (23.1 lb)

Downloads


    • SKU
      WECNVR708S-32-4KS2
    • Weight
      23.1 lbs
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    32 Channels
  • Recorder Type
    NVR
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
