4-ch 1-SATA Ultra 265/H.265/H.264 NVR
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Support Ultra 265/H.265/H.264 video formats 4-channel input Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution HDMI and VGA simultaneous output Up to 4K resolution recording 1 SATA HDD up to 6 TB Support cloud upgrade

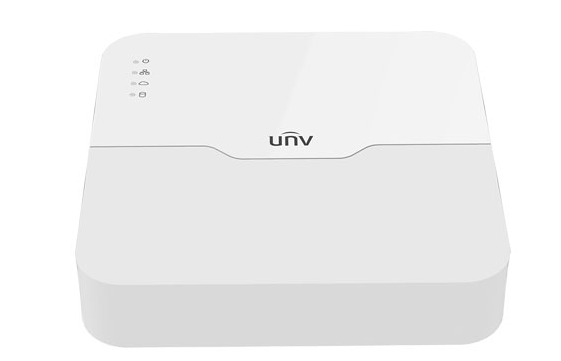

The NVR301-04LS3-P4 is a 4-channel network video recorder manufactured by Uniview, a leading provider of IP video surveillance solutions. This NVR supports up to 4 IP cameras with a maximum resolution of 8MP each. It features H.265 video compression technology, which allows for more efficient storage and transmission of video data.
The NVR301-04LS3-P4 also includes 4 built-in PoE ports, which eliminates the need for separate power supplies for each camera. It also supports ONVIF protocols, making it compatible with a wide range of IP cameras from different manufacturers.
This NVR has HDMI and VGA video outputs for local display and can support up to 2 hard drives with a maximum capacity of 8TB each. It also includes various features such as motion detection, PTZ control, and smart search for easy playback of recorded footage.
Overall, the NVR301-04LS3-P4 is a reliable and efficient network video recorder that is suitable for small to medium-sized surveillance systems.
Model | NVR301-04LS3-P4 |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-ch |
| Liveview display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection |
| VCA Search | Behavior Search |
| Smart Intrusion Prevention (SIP) by Camera | 4-ch(supports channel 1-4; Alarm only, no image) |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| RS232 | NA |
| RS485 | NA |
| Alarm In | NA |
| Alarm Out | NA |
| PoE | |
| Interface | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |

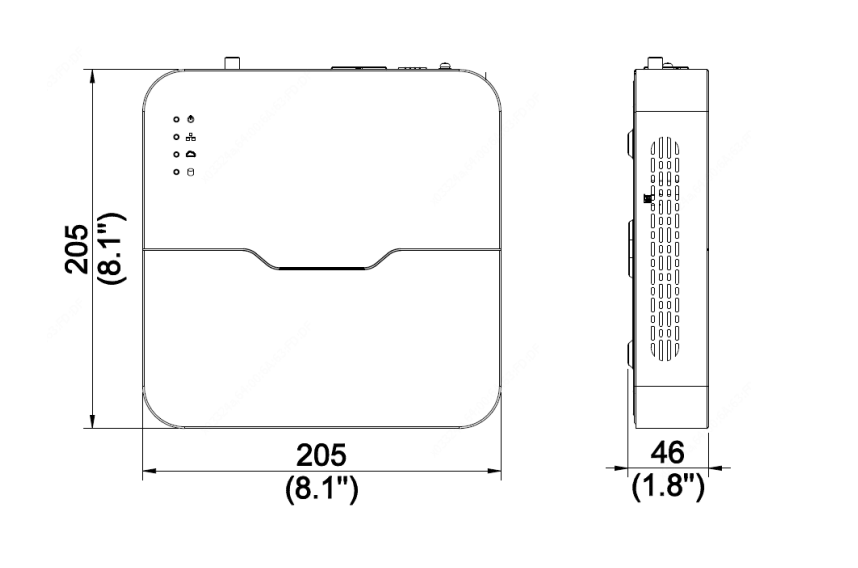

| Dimensions (W×D×H) | 205mm × 205mm × 46mm (8.1"×8.1"×1.8 ") |
| Weight (without HDD) | ≤0.6kg (1.32 lb) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
NVR301-04LS3-P4.pdf306.8 kB
