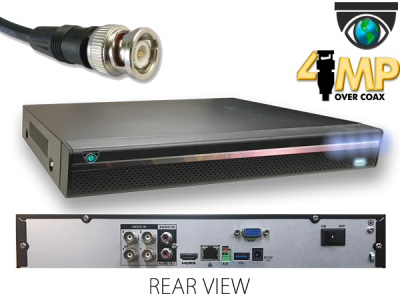

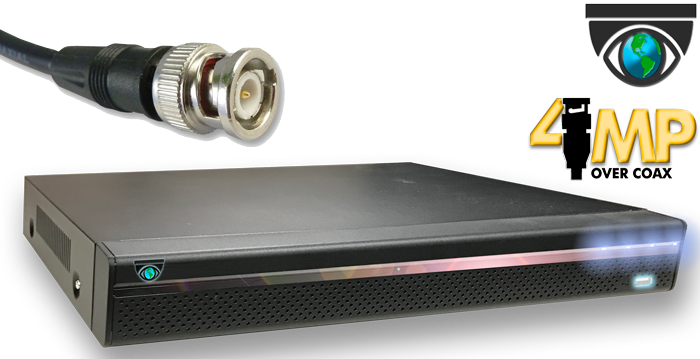

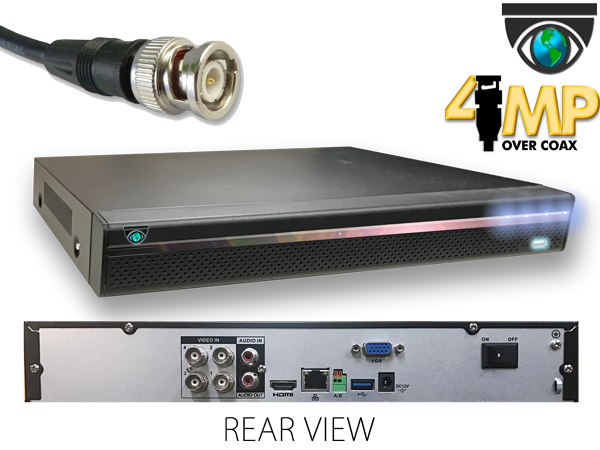

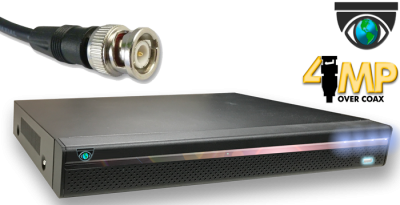

4 Channel 4MP Mini 1U Digital Video Recorder
        • 4 Channel 4MP Mini 1U Digital Video Recorder
        • 4 Channel 4MP Mini 1U Digital Video Recorder
        • 4 Channel 4MP Mini 1U Digital Video Recorder
        • Face Detection with instant playback and push to mobile phone

        4 Channel 4MP Mini 1U Digital Video Recorder

        iMaxCamPro
        SKU: XVR-4CH-MINI1U
        >Embedded processor >H.264+/H.264 Dual-stream video compression >Support HDCVI/CVBS video inputs >Max 6/12/24 channels IP camera inputs, each channel up to 5MP >Max 24/48/96Mbps Incoming Bandwidth >HDMI output up to 4K(3840x2160) resolution >Smart Search and Intelligent Video System
        • $299.00

        OR
        Face Detection with Remote Viewing Mobile App QR Code
        >Embedded processor
        >H.264+/H.264 Dual-stream video compression
        >Support HDCVI/CVBS video inputs
        >Max 6/12/24 channels IP camera inputs, each channel up to 5MP
        >Max 24/48/96Mbps Incoming Bandwidth
        >HDMI output up to 4K(3840x2160) resolution
        >Smart Search and Intelligent Video System

        System Overview
        Our newest generation digital video recorder adopts HDCVI technology, our in-house technology is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation. It supports up to 16 channels of HDCVI/CVBS inputs, and 8 channels IP camera additionally, 16 channels local live-view channels, and 16 playback channels.

        Designed as a low-cost, easy installation product, this HCVR is ideal for a wide range of applications such as public safety, retail store, transportation, home protection and education. It is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4.1.

        Functions
        Smart H.264+
        Smart Codec, H.264+ can reduce up to 70% bit rate and storage requirements without having to invest in new cameras.

        HDCVI/CVBS Auto-detect
        The HCVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.

        5MP Resolution
        The HCVR supports 5MP HD resolution (2560 x 1920) IPC input for recording, live viewing.

        Spot Output
        It is made for a secondary monitor. This allows the operator to view one special monitor that assigned to selected cameras or video inputs from higher security areas.

        Intelligent Video System (IVS)
        With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed.

        Face Detection
        It is a type technology being used in a variety of applications that search or identify individuals which show front cameras.

        Smart Search
        This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.

        System

        Main Processor

        Embedded Processor

        Operating System

        Embedded LINUX

        Display

        Interface

        1 HDMI(up to 3840x2160),1 VGA

        Resolution

        3840x2160,1920×1080, 1280×1024, 1280×720, 1024×768

        Multi-screen Display

        4CH: 1/4/6

        8CH: 1/4/8/9/16

        16CH: 1/4/8/9/16/25

        OSD

        Camera title, Time, Video loss, Camera lock, Motion detection, Recording

        Video Detection and Alarm

        Trigger Events

        Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

        Video Detection

        Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank

        Alarm input

        N/A

        Relay Output

        N/A

        Tracking Trigger Event

        N/A

        Playback and Backup

        Playback

        4CH: 1/4

        8CH: 1/4/9

        16CH: 1/4/9/16

        Search Mode

        Time /Date, Alarm, MD and Exact Search (accurate to second)

        Playback Function

        Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

        Backup Mode

        USB Device/Network

        Storage

        Internal HDD

        1 SATA Port, up to 6TB capacity

        HDD Mode

        Single

        eSATA

        N/A

        Auxiliary Interface

        Front Cover

        N/A

        USB

        2 USB Ports (1 USB 2.0 , 1 USB 3.0)

        RS232

        N/A

        RS485

        1 Port, for PTZ Control

        Third-party Support

        Third-party Support

        Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

        Audio and Video

        HDCVI Camera Input

        4/8/16 Channel

        IP Camera Input

        4+2/8+4/16+8 Channel, each channel up to 5MP

        Audio In/Out

        1/1

        Two-way Talk

        1 Channel Input, 1 Channel Output, RCA

        Recording

        Compression

        H.264+/H.264

        Resolution

        4MP,1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

        Record Rate

        Main stream: 4MP(1-15fps)

        1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

        Sub steram:D1/CIF/QCIF(1~25/30fps)

        Bit Rate

        32Kbps ~ 6144Kbps Per Channel

        Record Mode

        Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

        Record Interval

        1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

        Network

        Interface

        1 RJ-45 Port (1000M)

        Network Function

        HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)

        Max. User Access

        128 users

        Smart Phone

        iPhone, iPad, Android

        Interoperability

        ONVIF 2.4.1, CGI Conformant

        Electrical

        Power Supply

        4/8CH:DC12V/2A, 16CH: DC12V/3A

        Power Consumption

        <15W (Without HDD)

        Environmental

        Operating Conditions

        -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

        Storage Conditions

        0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH

        Construction

        Dimensions

        Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")

        Net Weight

        1.5kg (3.3 lb) (without HDD)

        Gross Weight

        2kg (4.4lb)

        Installation

        Desktop installation

        Certifications

        Certifications

        FCC: Coming soon

        UL: Coming soon

        DHI-HCVR7104H-4M_7108H-4M_7116H-4M_Dimension.pdf

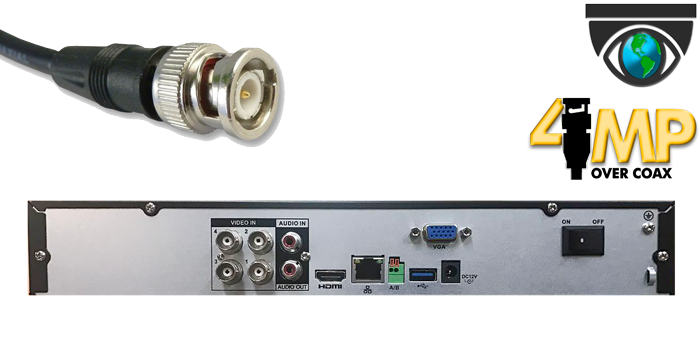

        HCVR7104H-4M_Rear_Panel.pdf

          • SKU
            XVR-4CH-MINI1U
          • Weight
            4.4 lbs
        • Manufacturer
          iMaxCamPro
        • Hard Drive #1
          I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
        • Remote Login Support
          No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
