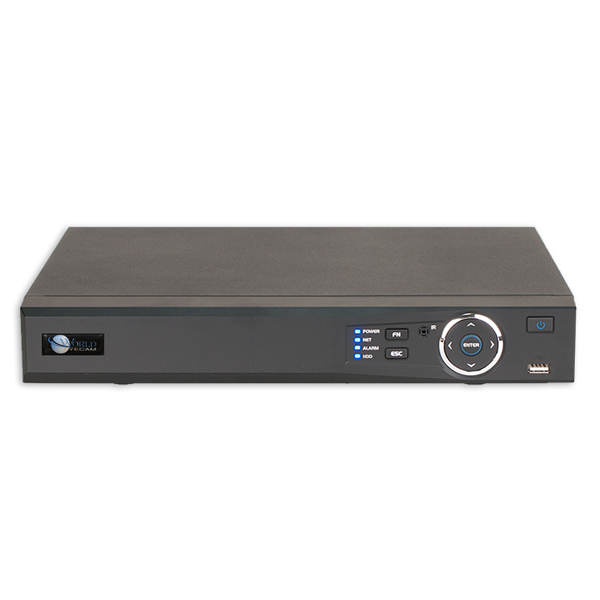

IMAX-CVI-M4 1080p HD-CVI Mini 1U DVR

iMaxCamPro
SKU: IMAX-CVI-M4

This HD-CVI DVR records high resolution video from up to four 1080p HD-CVI surveillance cameras. It can be programmed to record continuously, 24/7, or on motion.

    • 29% less
    Market price:$289.00 save $84.00
  • $205.00
Qty:
OR

This HD-CVI DVR records high resolution video from up to four 1080p HD-CVI surveillance cameras. It can be programmed to record continuously, 24/7, or on motion. The device supports up to 6TB of storage so you can keep important footage for as long as you need. It offers synced real time playback and footage can be monitored remotely from a computer or mobile device with the monitoring software.







Product Features

  • Up to 4 HD-CVI cameras with Full 720p @ 30FPS & 1080P @ 15FPS
  • Supports up to 2 IP cameras at up to 1080P resolution
  • H.264 dual-stream video compression
  • HDMI/VGA simultaneous video output
  • 4 channel synchronous realtime playback, GRID interface & smart search
  • 3D intelligent positioning with IMaxCamPro PTZ dome camera
  • Support 1 SATA HDD up to 6TB, 2 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(IMaxCam)



SmartPSS software
Click/Tap on image for a more detailed view.





SPECIFICATIONS
ModelIMAX-CVI-M4
System
Main ProcessorEmbedded processor
Operating SystemEmbedded LINUX
Video

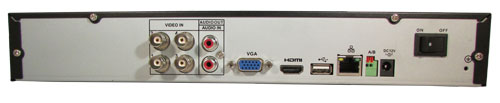

Input4 channel, BNC
Standard HD-CVI1080P/720P HDCVI Camera
Standard IPSupport 2ch 1080P/720P/D1/CIF IP Camera
Audio
Input1 channel, RCA
Output1 channel, RCA
Two-way TalkReuse audio input/output channel 1
Display
Interface1 HDMI, 1 VGA
Resolution1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
Display Split1/4
Privacy Masking4 rectangular zones (each camera)
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio CompressionH.264 / G.711
Resolution1080P ( 1920×1080 ) / 720P ( 1280×720 ) / 960H ( 960×576 / 960×480 ) / D1 / 4CIF ( 704×576 / 704×480 ) / CIF ( 352×288 / 352×240 ) / QCIF ( 176×144 / 176×120 )
Record Rate Main Stream1080P ( 1~12 / 15fps ) / 720P / 960H / D1 / HD1 / 2CIF / CIF ( 1~25 / 30fps )
Record Rate Extra StreamCIF / QCIF ( 1~25 / 30fps ), D1 ( 1~12 / 15fps )
Bit Rate48 ~ 4096Kb/s
Record ModeManual, Schedule ( Regular ( Continuous ), MD, Alarm ), Stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm InputN/A
Relay OutputN/A
Playback & Backup
Sync Playback1/4
Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup ModeUSB Device / Network
Network
EthernetRJ-45 port (10/100M/1000M)
Network FunctionsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access128 Users
Smart PhoneiPhone, iPad, Android, Windows Phone
Storage
Internal HDD1 SATA port, up to 6TB
External HDDN/A
Auxiliary Interface
USB Interface2 ports(1 Rear), USB2.0
RS232N/A
RS4851 port, For PTZ Control
General
Power SupplyDC12V/2A
Power Consumption10W(without HDD)
Working Environment14 ~ 131°F / 10~90%RH / 86 ~ 106kpa
Dimensions (W x D x H)Mini 1U, 12.8" x 10" x 2.17"
Weight3.3 lbs. (without HDD)



Why HD-AVS?

HD 1080p vs 720p vs 960h Resolution

HD 1080p vs 720p vs 960h Resolution
CLICK ON IMAGE TO ENLARGE IT

DVR Features

H.264 Real-time Recording and Playback

H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising image quality (compared to other compression standards such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.

Remote Monitoring

Remote Monitoring: Don’t have immediate access to your NVR? Then don’t worry. You can effortlessly log onto your recordings by accessing them on any compatible internet ready device (Such as iPhone 6, iPhone 6 Plus, iPhone, iPad, iPad mini, and Androids devices).

Central Monitoring System

Central Monitoring System: Have more than one location? Well accessing each one of them on a different IP address is a thing of the past with our standard CMS software that allows you to painlessly link an almost unlimited number of recorders and cameras all to the same IP Address.

Multiple Playback and Recording Options

Multiple Playback and Recording Options: The multiple recording options allows you to set your NVR to record on a set schedule, continuous around-the-clock recording or to further conserve hard drive space only when motion is detected. You can also select the number of cameras to view on one screen or hide certain ones from other users using the multiple playback features.

E-map Function Support

E-map Function Support: The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of repositioning your cameras to achieve the desired viewing space.

Push Alerts & Automatic E-mail

Push Alerts & Automatic E-mail: Setup your DVR to automatically send you an e-mail alert or a Push notification with video clip every time there is a motion triggered event. This enables you to quickly take action when an incident has occurred.

3D Intelligent Positioning

3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.

**There are no contracts or monthly fees with any WorldEyeCam purchase.**

    • SKU
      IMAX-CVI-M4
    • Weight
      15 lbs
  • Manufacturer
    iMaxCamPro
  • UPC
    683405210689
  • Shipping Lead Time
    Ships Same Day
  • Recorder Type
    DVR
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
