4Ch IMaxCamPro HD-SDI DVR system 1080P
SKU: IMAX-HDSDI-LTE-4CHThis compact DVR records high definition video on four channels. It records 30 frames per second with a 1080p resolution.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews

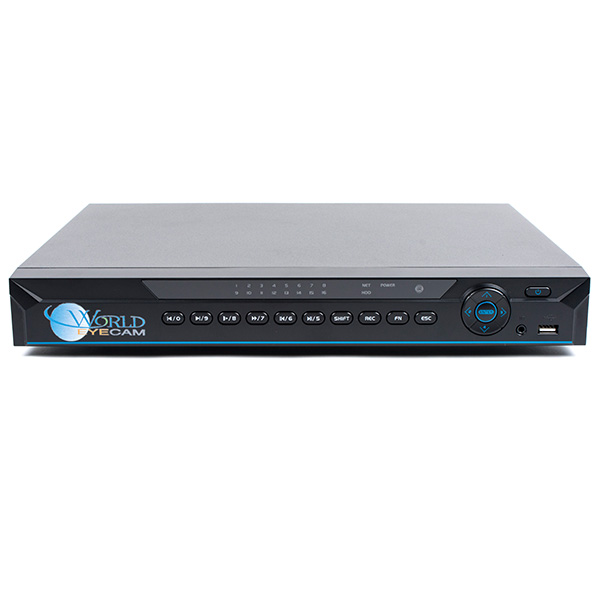

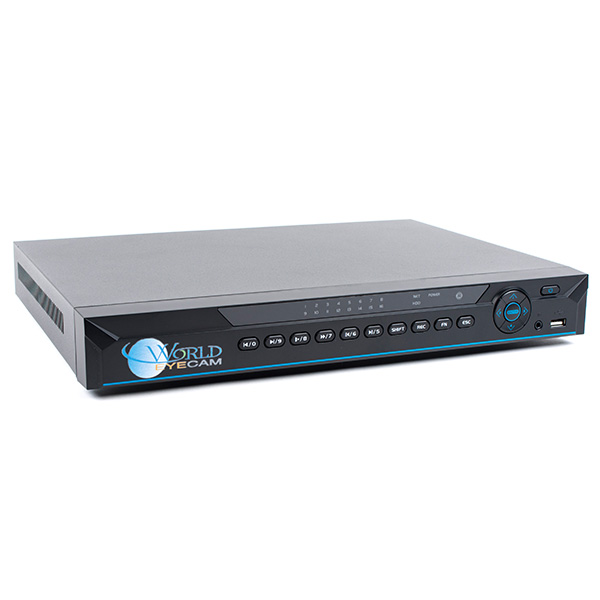

This compact DVR records high definition video on four channels. It records 30 frames per second with a 1080p resolution. The DVR has two internal hard drives for storage and an eSATA port for backup storage. Footage can be viewed on a central HDTV or monitor or remotely on a mobile device with the monitoring software.
This four camera HDSDI DVR features:
- 1080p High Definition Recording and Playback
- 30fps realtime recording on all channels.
- Room for two hard drives.
- Free Mobile Apps
- Mac & PC viewing software.
Model | IMAX-HDSDI-LTE-4CH | ||
System | |||
Main Processor | Dual-core embedded processor | ||
Operating System | Embedded LINUX | ||
Video | |||
Input | 4 channel, BNC | ||
Standard | 1080P(25/30) / 720P(25/30,50/60) | ||
Audio | |||
Input | 4 channel, BNC | ||
Output | 1 channel, BNC | ||
Two-way Talk | 1 channel Input, 1 channel Output, BNC | ||
Display | |||
Interface | 1 HDMI, 1 VGA, 1 TV, BNC | ||
Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||
Display Split | 1/4 | ||
Privacy Masking | 4 rectangular zones (each camera) | ||
OSD | Camera title, time, video loss, camera lock, motion detection, recording | ||
Recording | |||
Video/Audio Compression | H.264 / G.711 | ||
Image Resolution | 1080P(1920×1080), 720P(1280×720) D1(704×576 / 704×480), CIF(352×288 / 352×240) | ||
Record Rate | Main stream | Max 100/120fps@1080p | |
Extra stream | D1/CIF(25/30fps) | ||
Bit Rate | 256~8096Kb/s | ||
Recording Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||
Recording Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||
Video Detection & Alarm | |||
Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips | ||
Motion Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||
Alarm Input | 4 channel | ||
Relay Output | 3 channel | ||
Playback & Backup | |||
Sync Playback | 1/2/4 | ||
Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom(any size) | ||
Backup Mode | USB Device / Internal SATA burner/ Network | ||
Network | |||
Ethernet | RJ-45 port (10/100M/1000M) | ||
Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server | ||
Max. User Access | 20 users | ||
Smart Phone | iPhone, iPad, Android, Windows Phone | ||
Storage | |||
Internal HDD | 2 SATA ports, up to 8TB | ||
External HDD | 1 eSATA port (Max 4 SATA HDDs), up to 16TB | ||
Auxiliary Interface | |||
USB Interface | 2 ports (1 Rear), USB2.0 | ||
RS232 | 1 port, For PC communication & Keyboard | ||
RS485 | 1 port, For PTZ control | ||
General | |||
Power Supply | DC12V/ 5A | ||
Power Consumption | 15W(without HDD) | ||
Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | ||
Dimension(W×D×H) | 1U, 375mm×285mm×45mm | ||
Weight | 2.35KG(without HDD) |
- ManufactureriMaxCamPro
- UPC881314695355
- Shipping Lead TimeShips Same Day
- Number of Channels4ch
- Recorder TypeDVR
- Hard Drive #1I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
- Hard Drive #2I Will Install My Own Hard Drive, 500GB HDD, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD
- Remote Login SupportNo Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
