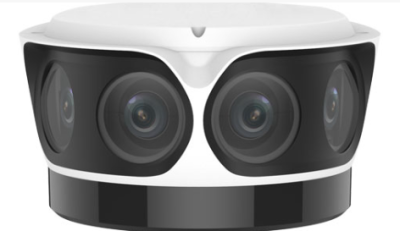

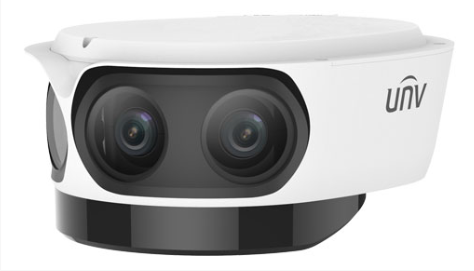

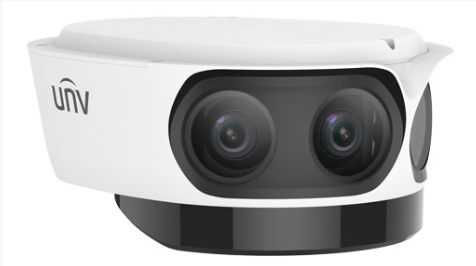

4K Starlight OmniView Network Camera

Uniview
SKU: IPC8542ER5-DUP

Optics

Fifth-generation infrared technology, up to 50m (164ft) IR distance

Starlight illumination

Smart IR

2D/3D DNR (Digital Noise Reduction)

120dB true WDR

Support a horizontal viewing angle of 180°

Compression

Ultra H.265,H.265, H.264, MJPEG

Triple streams

Customized OSD

4096×1800@30fps supported

Network

ONVIF Conformance

Structure

AC/DC24V or PoE(IEEE 802.3at) power supply

Wide voltage range of ±25% in AC, 18V~48V in DC

Micro SD, up to 256 GB

Alarm 2 in and 1 out, Audio 1 in and 1 out

IP67 ingress protection

 IPC8542ER5-DUP
Camera
Sensor1/1.8" progressive scan, 2.0 megapixel, CMOS
Lens4×4.2mm lens
IrisF1.8
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
4.250.4 (165.4ft)20.2(66.3ft)10.1(33.1ft)5.0(16.4ft)
Field of View (H)180°
Field of View (V)80°
Field of View (D)221.4°
ShutterAuto/Manual, shutter time: 1 s ~ 1/100000 s
Adjustment anglePan: -90°~90°Tilt: -45°~60°
Min. IlluminationColour: 0.002lux (F1.8,AGC ON)
0lux with IR
WDR120dB
Day/NightIR-cut filter with auto switch (ICR)
S/N>52dB
IR RangeUp to 50m (164ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 4096×1800:Max. 30 fps;
Sub Stream: 1920×832:Max. 30 fps;
Third Stream: 1280×560: Max. 30 fps
Video Bit Rate128 Kbps~16 Mbps
ROISupported
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas(8 blacks/8 mosaics)
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
Smart
Behavior DetectionCross Line detection, Intrusion detection, Motion detection
Primary-Secondary linkageAuto/manual
Exception Detection And StatisticsObject Removed, Object Left Behind, Defocus, Scene Change
RecognitionAudio detection
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U, G.711A
Two-way AudioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZLive
Ezview
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/OAudio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O2/1
Network2*10M/100M/1000M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General

Power

AC24V±25%/DC24V support 18V-48V, PoE(IEEE 802.3at)
Power consumption: Max 24W
Dimensions (Ø x H)259mmx211mmx115mm(10.2”×8.3”×4.5”)
Weight2.38kg(5.25lb)
Working Environment–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing)
Storage Environment–40°C ~ +70°C (-40°F ~ 158°F), Humidity: ≤95%RH RH(non-condensing)
surge protection6KV


Datasheet of IPC8542ER5-DUP

Camera Installation Guide-V1.00

Network Cameras User Manual-V3.00
