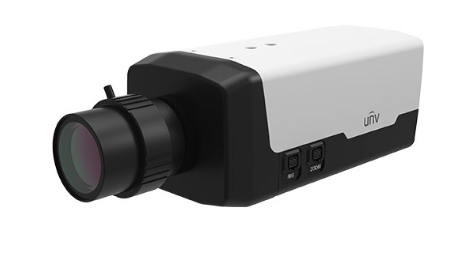

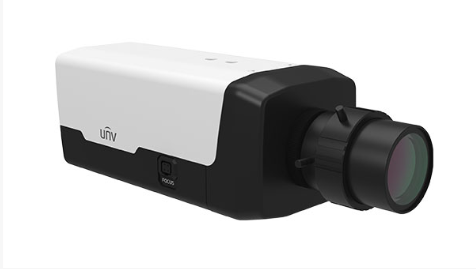

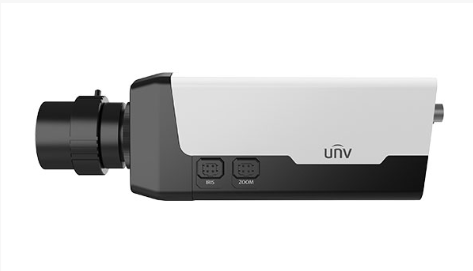

4K Ultra-HD LightHunter WDR Network Box Camera

Uniview
SKU: IPC568EB-DGK-I0

High quality image with 8MP,1/1.8’’ CMOS sensor


1687146543430.png3840*2160@30fps in the main stream

1687146543767.pngUltra 265, H.265, H.264, MJPEG

1687146544102.pngSmart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

1687146544312.pngPeople Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

1687146543503.pngLightHunter technology ensures ultra-high image quality in low illumination environment

1687146543934.pngUp to 120 dB Optical WDR (Wide Dynamic Range)

1687146543575.pngSupport high-precision motorized lens for accurate zoom & focus

1687146544605.pngDC12V or AC24V or PoE (IEEE 802.3af) power supply

1687146543649.pngAudio 1 in and 1 out, Alarm 2 in and 1 out

1687146544745.pngSupport optical interface & network interface serial connection, reduce the cost of wiring


 IPC568EB-DGK-I0
Camera
Sensor1/1.8", 8.0 megapixel, progressive scan, CMOS
Min. IlluminationColour:0.002lux (F1.2, AGC ON)
B/W: 0.0002Lux(F1.2, AGC ON)
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
WDR120dB
S/N>56dB
ABFSupport
Lens
Lens MountC/CS
IrisDC-Iris/P-Iris, DC 5V (4 Pins)
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 8MP (3840*2160), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
ROIUp to 8 areas
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas per scene
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
FlipNormal/Flip Vertical/Flip Horizontal/180°
HLCSupport
BLCSupport
DefogOptical Defog & Digital Defog
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8KHz
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and common user
SecurityPassword protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZLive
EZView
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O1/1
Alarm I/O2/1
Zoom/focusSupport
Serial Port1 RS485
Built-in MicN/A
Built-in SpeakerN/A
Network1*100M/1000M SFP+ 1*RJ45 10M/100M/1000M Base-TX Ethernet
Video Output1 BNC
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
General
PowerDC12V(±25%), AC24V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 8.0W
Power InterfaceTwo-core terminal block
Dimensions (L x W x H)152 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight0.40kg (0.88lb)
Working Environment-20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection6KV
Reset buttonSupport
ProtectionN/A


Datasheet of IPC568EB-DGK-I0

IPC540_IPC560 Series-Network Box Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00

Network Cameras User Manual-V3.00
