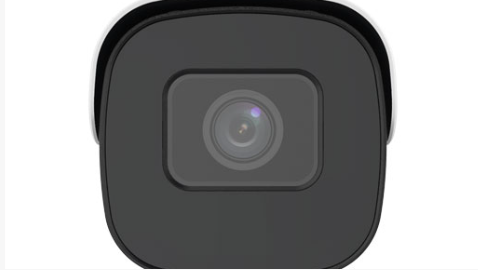

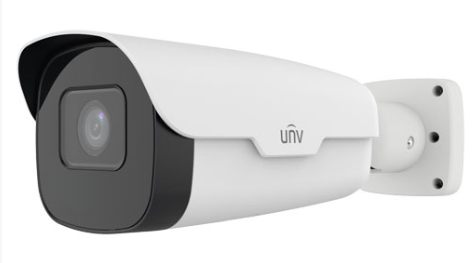

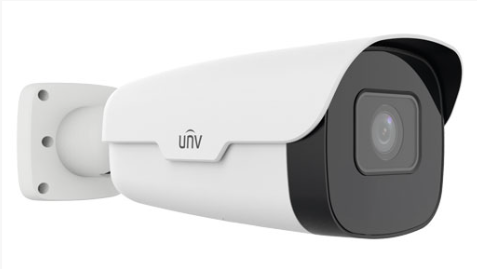

4MP LightHunter Intelligent Bullet Network Camera
SKU: IPC264SA-DZK1/1.8’’, Powered by lighthunter
Smart IR, up to 50m (164 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Adaptive fogging
Smart
People Counting, statistics of people entering, leaving and the total number
Smart intrusion Prevention, include Cross Line, Intrusion, Enter Area, Leave Area detection
Exception Detection and Statistics, include Object Removed, Object Left Behind, Defocus, Scene Change
Compression
Ultra 265, H.265, H.264, MJPEG
Five streams
2688*1520@30fps in the main stream
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
DC12V or PoE+ power supply
Wide voltage range of ±25% in DC
Micro SD, up to 256 GB
Alarm 2 in and 1 out, Audio 1 in and 1 out
IP67 ingress protection
IK10 vandal resistant
IPC264SA-DZK | |||||
Camera | |||||
Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||
Lens | 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens | ||||
Iris | Fixed | ||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
2.8 | 42(137.8ft) | 16.8(55.1ft) | 8.4(27.6ft) | 4.2(13.8ft) | |
12 | 180(590.4ft) | 72(236.2ft) | 36(118.1ft) | 18(59.0ft) | |
Field of View (H) | 35.6°~107.9° | ||||
Field of View (V) | 20.4°~75.4° | ||||
Field of View (D) | 43.8°~140.3° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
Min. Illumination | Colour:0.0005lux (F1.2, AGC ON) 0 lux with IR | ||||
WDR | 120dB | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
S/N | >56dB | ||||
IR Range | Up to 50m (164 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Defog | Digital Defog | ||||
Video | |||||
Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||
Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 60fps Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; Forth Stream: D1 (720*576), Max 60fps; Fifth Stream: D1 (720*576), Max 60fps | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
ROI | Supported | ||||
Video stream | Five streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
HLC | Support | ||||
BLC | Support | ||||
Intelligent | |||||
Smart intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
Statistical Analysis | People counting, support tripwire people counting and area people counting | ||||
Event | |||||
Exception Detection | Object Removed, Object Left Behind, Defocus, Scene Change | ||||
Basic Detection | Audio detection, Tampering Alarm, Motion detection | ||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711U,G.711A | ||||
Two way audio | Supported | ||||
Sampling Rate | 8KHZ | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
Client | EZStation Ezview EZLive | ||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
Interface | |||||
Audio I/O | Audio cable | ||||
1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
1 output: impedance 600Ω; amplitude 2V [p-p] | |||||
Alarm I/O | 2/1 | ||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||
Serial Port | 1 RS485 | ||||
Certifications | |||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||
General | |||||
Power | DC12V(±25%), PoE+(IEEE802.3at) | ||||
Power consumption: Max 14W | |||||
Support overcurrent protection , Input short circuit protection | |||||

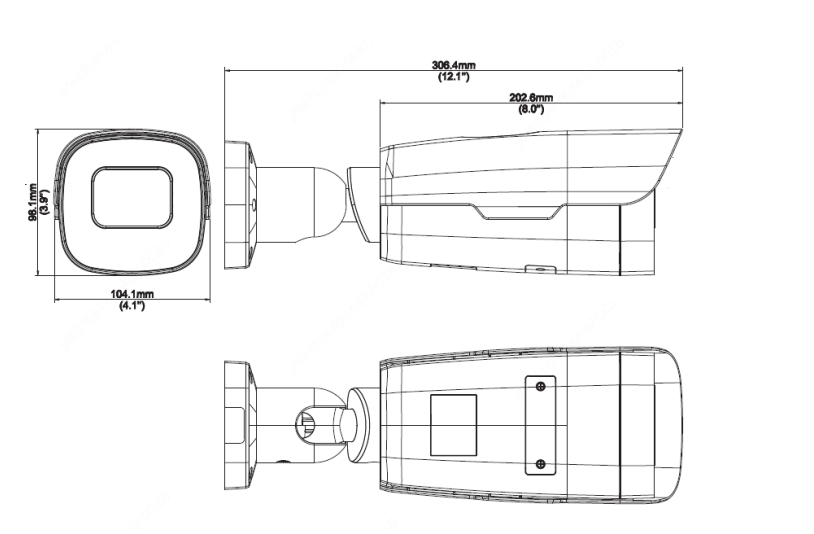

Dimensions (Ø x H) | Φ306.4x104.1x98.1mm(Φ12.1’’x4.1’’x3.9’’) | ||||
Net Weight | 1.65kg(3.64lb) | ||||
Material | Metal | ||||
Working Environment | -30°C ~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 6KV |
