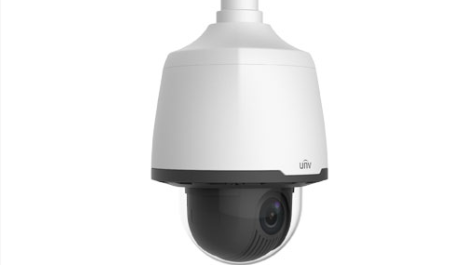

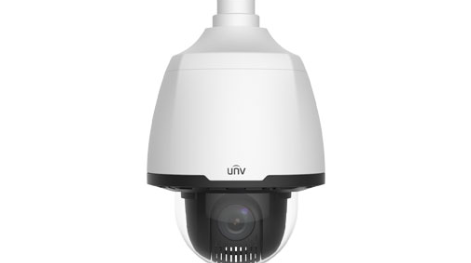

4MP 33X Lighthunter Network PTZ Dome Camera
SKU: IPC6634S-X33-VF• High quality image with 4MP,1/2.8’’ CMOS sensor
• 2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 33X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• AC 24V ±25%, DC 24V±25%,PoE+(IEEE802.3 at)
• Alarm 7 in and 2 out, Audio 1 in and 1 out
• IP67 ingress protection
• IK10 vandal resistant
IPC6634S-X33-VF | ||||||
Camera | ||||||
Sensor | 1/2.8", 4.0 megapixel, progressive scan, CMOS | |||||
Minimum Illumination | Colour: 0.003Lux (F1.5, AGC ON) BW: 0.001Lux (F1.5, AGC ON) | |||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
WDR | 120dB | |||||
S/N | >56dB | |||||
Lens | ||||||
Lens type | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | |||||
Digital Zoom | 16 | |||||
Optical Zoom | 33 | |||||
Iris | Auto; F1.5 ~ F4.0 | |||||
Field of View (H) | 51.4° ~ 2.5° | |||||
Field of View (V) | 30.3° ~ 1.4° | |||||
Field of View (D) | 63.2° ~ 3.0° | |||||
DORI | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
4.5 | 105.8(346.9ft) | 42.3(138.8ft) | 21.2(69.4ft) | 10.6(34.7ft) | ||
148.5 | 3172.5(10408.5ft) | 1269.0(4163.4ft) | 634.5(2081.7ft) | 317.3(1040.8ft) | ||
Video | ||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |||||
Video Bit Rate | 128 Kbps~16 Mbps | |||||
U-code | Support | |||||
ROI | Up to 8 areas | |||||
Video Stream | Tripe streams | |||||
OSD | Up to 8 OSDs | |||||
Privacy Mask | 24 areas, up to 4 areas per scene | |||||
Image | ||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
Digital noise reduction | 2D/3D DNR | |||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
EIC | N/A | |||||
HLC | Support | |||||
BLC | Support | |||||
Defog | Digital Defog | |||||
Intelligent | ||||||
Smart intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||||
People Counting | Support people flow counting and crowd density monitoring | |||||
Events | ||||||
Basic Detection | Motion detection, Audio detection, Tampering Alarm | |||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
Auto Tracking | Support | |||||
Audio | ||||||
Audio Compression | G.711U,G.711A | |||||
Audio Bitrate | 64 Kbps | |||||
Two-way audio | Support | |||||
Suppression | Support | |||||
Sampling Rate | 8 kHz | |||||
Storage | ||||||
Edge Storage | Micro SD, up to 256GB | |||||
Network Storage | ANR,NAS(NFS) | |||||
Network | ||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
Client | EZStation EZView EZLive | |||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
Pan & Tilt | ||||||
Pan Range | 360° (endless) | |||||
Pan Speed | 2°/s ~ 200°/s | |||||
Preset speed: 400°/s | ||||||
Tilt Range | 1° ~ 90° | |||||
Tilt Speed | 2°/s ~ 200°/s | |||||
Preset speed: 240°/s | ||||||
Number of Presets | 1024 | |||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||
Patrol Stay Time | 15s~1800s | |||||
Preset Image Freeze | Support | |||||
Home Position | Support | |||||
Interface | ||||||
Audio I/O | 1/1 | |||||
Alarm I/O | 7/2 | |||||
Serial Port | 1 RS485 | |||||
Built-in Mic | N/A | |||||
Built-in Speaker | N/A | |||||
WIFI | N/A | |||||
Network | 1*10M/100M Base-TX Ethernet | |||||
Video output | 1 BNC | |||||
Certification | ||||||
EMC | CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863) | |||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||
General | ||||||
Power | AC 24V ±25%, DC 24V±25%,PoE+(IEEE802.3 at) | |||||
Power consumption: Max 16W | ||||||
Power Interface | Wires with cold-pressed terminal | |||||

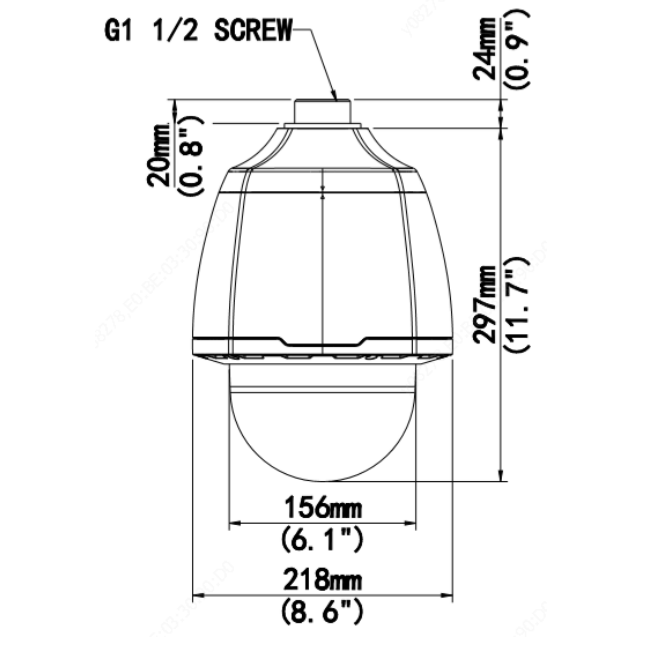

Dimensions (Ø x H) | Φ218 x 297mm (Φ8.6” x 11.7”) | |||||
Weight | 4.07kg(8.97lb) | |||||
Working Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||
Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||
Surge Protection | 6KV | |||||
Reset Button | Support |
Camera Installation Guide-V1.00
Network Cameras User Manual-V3.00
