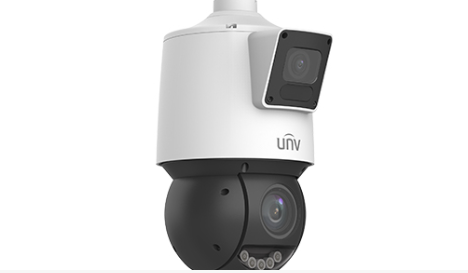

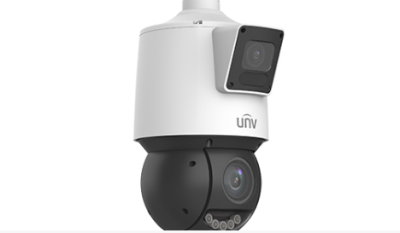

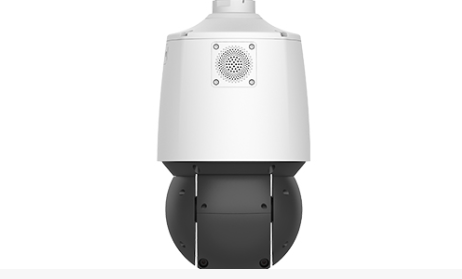

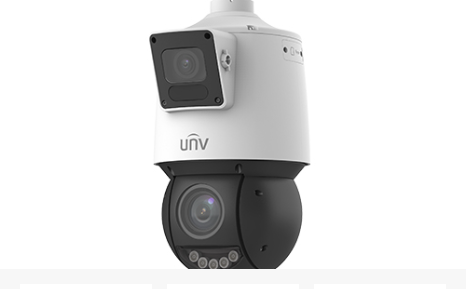

4MP+4MP Lighthunter Dual-lens Network PTZ Camera
SKU: IPC94144SR-X25- F40C• Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
• High quality image with 4MP,1/2.7’’ CMOS sensor
• Ultra 265, H.265, H.264, MJPEG
• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• DC12V or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
IPC94144SR-X25-F40C | ||||||
Camera | Panorama | Detail | ||||
Sensor | 1/2.7", 4MP, CMOS | 1/2.7", 4MP, CMOS | ||||
Min. Illumination | Color:0.003 lux (F1.6, AGC ON) 0 lux with IR | Color:0.003 lux (F1.5, AGC ON) 0 lux with IR | ||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
WDR | 120dB | |||||
S/N | >56dB | |||||
Lens | ||||||
Lens type | 4mm@F1.6 | 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens | ||||
Optical Zoom | N/A | 25X | ||||
Iris | Fixed aperture; F1.6 | Auto; F1.5(W)~F3.8(T) | ||||
Angle of View (H) | 91.3° | 55.46° ~ 3.09° | ||||
Angle of View (V) | 51.5° | 32.94° ~ 1.73° | ||||
Angle of View (O) | 112.3° | 68.22° ~ 3.65° | ||||
DORI | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
4 (Panorama) | 90.0 (295.3 ft) | 36.0 (118.1 ft) | 18.0 (59.1 ft) | 9.0 (29.5 ft) | ||
4.8 (Detail | 123.8 (406.0 ft) | 49.5 (162.4 ft) | 24.8 (81.2 ft) | 12.4 (40.6 ft) | ||
120 (Detail) | 2475.0 (8120.1 ft) | 990.0 (3248.0 ft) | 495.0 (1624.0 ft) | 247.5 (812.0 ft) | ||
Illuminator | ||||||
IR Range | Up to 30m (98.4 ft) | Up to 100m (328.1 ft) | ||||
Wavelength | 850nm (IR) | |||||
Light On/Off Control | Auto/Manual | |||||
Video | ||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
Frame Rate | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | ||||
Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||
U-code | Support | |||||
ROI | Up to 8 areas | |||||
Video stream | Triple streams | |||||
OSD | Up to 8 OSDs | |||||
Privacy Mask | Up to 4 areas per scene | 24 areas, up to 4 areas per scene | ||||
Image | ||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
Digital noise reduction | 2D/3D DNR | |||||
Smart IR | Support | |||||
Flip | Normal/Flip Vertical/Flip Horizontal/180° | |||||
HLC | Support | |||||
BLC | Support | |||||
Defog | Digital defog | |||||
Events | ||||||
Basic Detection | Motion detection, Audio detection, Tampering Alarm | |||||
Auto Tracking | N/A | Support | ||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||
Audio | ||||||
Audio Compression | G.711U, G.711A | |||||
Audio Bitrate | 64 Kbps | |||||
Two-way Audio | Support | |||||
Suppression | Support | |||||
Sampling Rate | 8 kHz | |||||
Storage | ||||||
Edge Storage | Micro SD, up to 256 GB | |||||
Network Storage | ANR | |||||
Network | ||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||||
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
Client | EZStation EZLive EZView | |||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
Pan & Tilt | ||||||
Pan Range | N/A | 360° | ||||
Pan Speed | N/A | 0.1°/s ~ 80°/s | ||||
Preset speed: N/A | Preset speed: 80°/s | |||||
Tilt Range | 18° ± 5° | -15° ~ 90° | ||||
Tilt Speed | N/A | 0.1°/s ~ 80°/s | ||||
Preset speed: N/A | Preset speed: 80°/s | |||||
Number of Presets | 1024 | |||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||
Patrol Stay Time | 15s~1800s | |||||
Preset Image Freeze | N/A | |||||
Home Position | Support | |||||
Interface | ||||||
Audio I/O | 1/1 | |||||
Alarm I/O | 2/1 | |||||
Serial Port | 1 RS485 | |||||
Built-in Mic | N/A | |||||
Built-in Speaker | Support | |||||
Wi-Fi | N/A | |||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
Video Output | N/A | |||||
Certification | ||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863) | |||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||
General | ||||||
Power | DC12V (±25%), PoE+(IEEE 802.3at) | |||||
Power consumption: MAX 24W | ||||||
Power Interface | Ø 5.5mm coaxial power plug | |||||

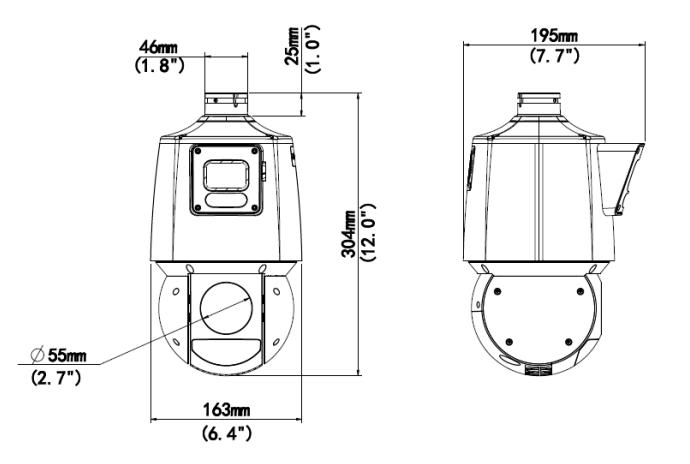

Dimensions (Ø x H) | Φ163 x 304mm (Φ6.4” x 12.0”) | |||||
Weight | 2.27kg (5.00lb) | |||||
Working Environment | -40℃ ~ +65℃(-40°F ~ +149°F),Humidity: ≤95% RH (non-condensing) | |||||
Storage Environment | -40℃ ~ +70℃(-40°F ~ +158°F),Humidity: ≤95% RH (non-condensing) | |||||
Surge protection | 6KV | |||||
Reset button | Support |
