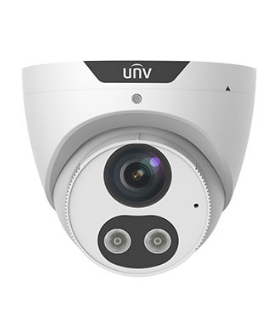

4MP HD Light and Audible Warning Fixed Eyeball Network Camera

        4MP HD Light and Audible Warning Fixed Eyeball Network Camera

        Uniview
        SKU: IPC3614SB-ADF28KMC-I0
          • 30% less
          Market price:$538.00 save $159.00
        • $379.00

        OR

        • High quality image with 4MP, 1/2.7"CMOS sensor• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG
        • Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
        • 120dB true WDR technology enables clear image in strong light scene
        • Support 9:16 Corridor Mode
        • Built-in Mic and Speaker
        • Smart IR, up to 30m (98ft) IR distance
        • Supports 256 G Micro SD card
        • IP67 protection
        • Support PoE power supply

        The 4MP HD Light and Audible Warning Fixed Eyeball Network Camera is a state-of-the-art surveillance camera designed to provide high-quality imaging and advanced security features. This camera is equipped with a 4-megapixel image sensor that delivers sharp and detailed images with a resolution of up to 2560 x 1440 pixels.

        One of the unique features of this camera is its built-in light and audible warning system. The camera has a powerful LED light that can be triggered to flash when motion is detected in low-light environments. This feature not only provides additional illumination for clearer footage, but it also serves as a visible deterrent to potential intruders. Additionally, the camera has an audible warning that can be triggered to deter potential intruders, alerting them that they are being monitored.

        The camera features a fixed 2.8mm lens with a wide viewing angle of 103 degrees, allowing it to cover a broad area of surveillance. The lens is capable of capturing clear and detailed images even in challenging lighting conditions. The camera's advanced image processing technology enhances its low-light performance and reduces image noise, producing high-quality video footage in any environment.

        The camera also supports Power over Ethernet (PoE) technology, which enables it to receive power and transmit data over a single Ethernet cable. This feature simplifies installation and reduces cable clutter, making it an ideal choice for businesses and organizations looking for an efficient and reliable security solution.

        The 4MP HD Light and Audible Warning Fixed Eyeball Network Camera can be accessed and controlled remotely using a web browser or a mobile app, allowing users to monitor their property from anywhere with an internet connection. The camera also supports various video compression formats, including H.265, H.264, and MJPEG, enabling it to transmit high-quality video footage over the internet with minimal bandwidth usage.

        In summary, the 4MP HD Light and Audible Warning Fixed Eyeball Network Camera is a powerful and innovative surveillance camera that offers high-quality imaging and advanced security features. Its built-in light and audible warning system, coupled with its advanced imaging technology, makes it an ideal choice for businesses and organizations looking for an efficient and reliable security solution.



         IPC3614SB-ADF28KMC-I0IPC3614SB-ADF40KMC-I0
        Camera
        Sensor1/2.7", 4.0 megapixel, progressive scan, CMOS
        Minimum IlluminationColour: 0.003Lux (F1.6, AGC ON)
        0Lux with IR on
        Day/NightIR-cut filter with auto switch (ICR)
        ShutterAuto/Manual, 1 ~ 1/100000s
        Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°
        WDR120dB
        S/N>56dB
        Lens
        Lens type2.8mm@F1.64.0mm@F1.6
        Angle of view(H)101.1°83.7°
        Angle of View (V)55.3°44.9°
        Angle of View (O)111.1°89.2°
        DORI
        DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
        2.863.025.212.66.3
        4.090.036.018.09.0
        Illuminator
        IR RangeUp to 30m (98ft) IR range
        Wavelength850nm
        IR On/Off ControlAuto/Manual
        Video
        Video CompressionUltra 265, H.265, H.264, MJPEG
        H.264 code profileBaseline profile, Main profile, High profile
        Frame RateMain Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
        Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
        Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
        Video Bit Rate128 Kbps~16 Mbps
        U-codeSupport
        ROIUp to 8 areas
        Video StreamTriple streams
        OSDUp to 8 OSDs
        Privacy MaskUp to 4 areas
        White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
        Image SettingImage rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
        Digital Noise Reduction2D/3D DNR
        Smart IRSupport
        FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
        DewarpingN/A
        HLCSupported
        BLCSupported
        DefogDigital Defog
        Audio
        Audio CompressionG.711
        Audio Bitrate64 Kbps
        Two-way audioSupported
        SuppressionSupported
        Sampling Rate8KHZ
        Storage
        Edge StorageMicro SD, up to 256 GB
        Network StorageANR, NAS(NFS)
        Network
        ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
        Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
        User/HostUp to 32 users. 2 user levels: administrator and common user
        SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
        ClientEZStation
        EZView
        EZLive
        Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
        Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
        Interface
        Audio I/ON/A
        Alarm I/ON/A
        RS485N/A
        Built-in MicSupport
        Built-in SpeakerSupport
        WIFIN/A
        Network1 RJ45 10M/100M Base-TX Ethernet
        Video OutputN/A
        Certifications
        EMCFCC CFR 47 Part 15
        EN 55032:2015
        EN 55024:2010
        EN 61000-3-2:2014
        EN 61000-3-3-2013
        SafetyIEC 62368-1
        EN 62368-1
        UL 62368-1
        EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
        General
        PowerDC 12V±25%, PoE (IEEE 802.3af)
        Power consumption: Max 7.5W
        Power InterfaceØ 5.5mm coaxial power plug

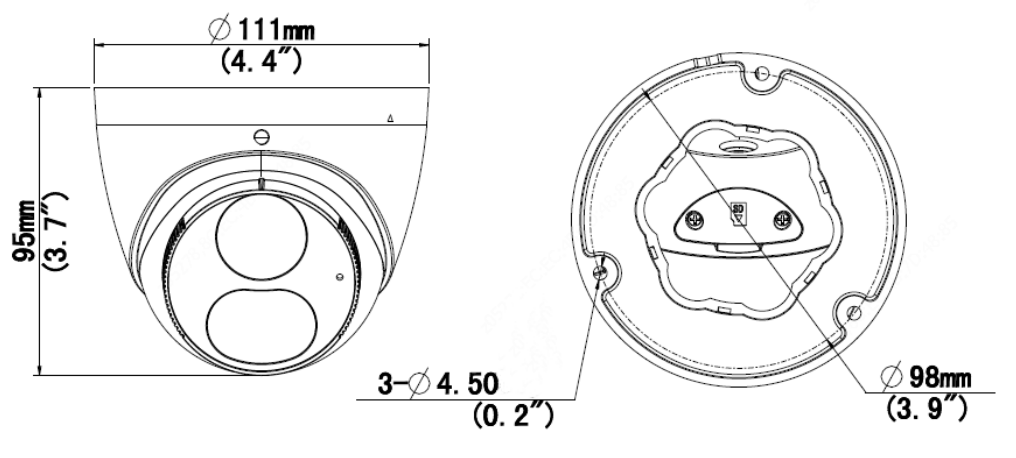

        Dimensions (Ø x H)Φ111 x 95mm (Φ4.4” x 3.7”)
        Weight0.43kg (0.948lb)
        MaterialMetal + Plastic
        Working Environment-30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
        Storage Environment-30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
        Surge Protection4KV
        Reset ButtonN/A
        ProtectionIngression protection: IP67
          • SKU
            IPC3614SB-ADF28KMC-I0
          • Weight
            0.99 lbs
        • Manufacturer
          Uniview
        • Camera Signal
          IP
        • Camera Resolution
          4 Megapixel
