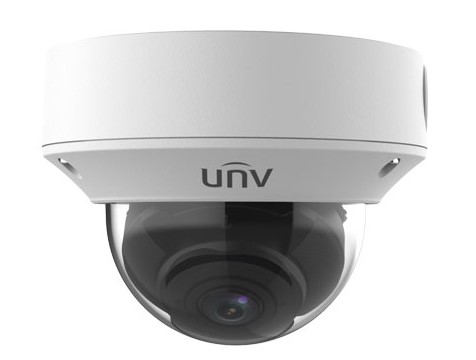

4MP LightHunter Intelligent Vandal-resistant Dome Network Camera
Optics
1/1.8’’, Powered by lighthunter Smart IR, up to 40m (131 ft) IR distance Up to 120 dB Optical WDR (Wide Dynamic Range)Smart
People counting, statistics of people entering, leaving and the total number Smart intrusion Prevention, include Cross Line, Intrusion, Enter Area, Leave Area detection Exception Detection and Statistics, include Object Moving, Object Left, Defocus, Scene ChangeCompression
Ultra 265, H.265, H.264, MJPEG Five streams 2688*1520@30fps in the main stream ROI (Region of Interest)Network
ONVIF ConformanceStructure
DC12V or AC24V or PoE power supply Wide voltage range of ±25% in AC, ±25% in DC Micro SD, up to 256 GB Alarm 1 in and 1 out, Audio 1 in and 1 out IP67 ingress protection IK10 vandal resistant
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The 4MP LightHunter Intelligent Vandal-resistant Dome Network Camera is a powerful and versatile surveillance camera designed to deliver high-quality video footage in any environment. With its advanced features and rugged construction, this camera is an excellent choice for indoor and outdoor applications.
One of the key features of this camera is its 4-megapixel resolution, which allows it to capture high-quality images and video footage. The camera also features a LightHunter low-light imaging technology that provides clear and detailed images even in low-light conditions. This makes it an excellent choice for monitoring areas that are poorly lit or that require 24/7 surveillance.
The camera is also designed to be vandal-resistant, with a tough exterior casing that can withstand physical abuse and tampering attempts. This makes it an excellent choice for use in high-risk areas, such as parking garages, public transportation hubs, and other locations where vandalism is a concern.
In addition, this camera is equipped with intelligent video analytics, including line-crossing detection, intrusion detection, and object removal detection. These features enable the camera to automatically detect and track activity in the monitored area, making it easy to identify potential security threats and respond quickly to security breaches.
Other features of this camera include a varifocal lens that allows users to adjust the focal length to suit their specific surveillance needs, an IP67 weatherproof rating that ensures the camera is resistant to dust and water, and support for the ONVIF protocol, which makes it easy to integrate with other surveillance systems.
Overall, the 4MP LightHunter Intelligent Vandal-resistant Dome Network Camera is a reliable and robust surveillance camera that is well-suited for a variety of applications. Its high-quality imaging technology, vandal-resistant construction, and intelligent video analytics make it an excellent choice for monitoring high-risk areas and detecting potential security threats.
| IPC3234SA-DZK | |||||||
| Camera | |||||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens | ||||||
| Iris | Auto aperture | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 42(137.8ft) | 16.8(55.1ft) | 8.4(27.6ft) | 4.2(13.8ft) | |||
| 12 | 180(590.4ft) | 72(236.2ft) | 36(118.1ft) | 18(59.0ft) | |||
| Field of View (H) | 35.6°~107.9° | ||||||
| Field of View (V) | 20.4°~75.4° | ||||||
| Field of View (D) | 43.8°~140.3° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0°~355° | Tilt: 0°~68° | Rotate: 0°~355 | ||||
| Min. Illumination | Colour:0.0005lux (F1.2, AGC ON) 0 lux with IR | ||||||
| WDR | 120dB | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >56dB | ||||||
| IR Range | Up to 40m (131 ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 60fps Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; Forth Stream: D1 (720*576), Max 60fps; Fifth Stream: D1 (720*576), Max 60fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| ROI | Supported | ||||||
| Video stream | Five streams | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Smart | |||||||
| Smart intrusion Prevention | Support false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection ; Motion detection ; | ||||||
| Exception Detection And Statistics | Object Removed, Object Left Behind, Defocus, Scene Change | ||||||
| Statistical Analysis | People counting, support tripwire people counting and area people counting | ||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U,G.711A | ||||||
| Two way audio | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR,NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||||
| Compatible Integration | ONVIF, API | ||||||
| Client | EZStation Ezview EZLive | ||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||||
| General | |||||||
| Power | AC24V±25%, DC12V(±25%), PoE(IEEE 802.3af) | ||||||
| Power consumption: Max 10W | |||||||
| Support overcurrent protection , Input short circuit protection | |||||||

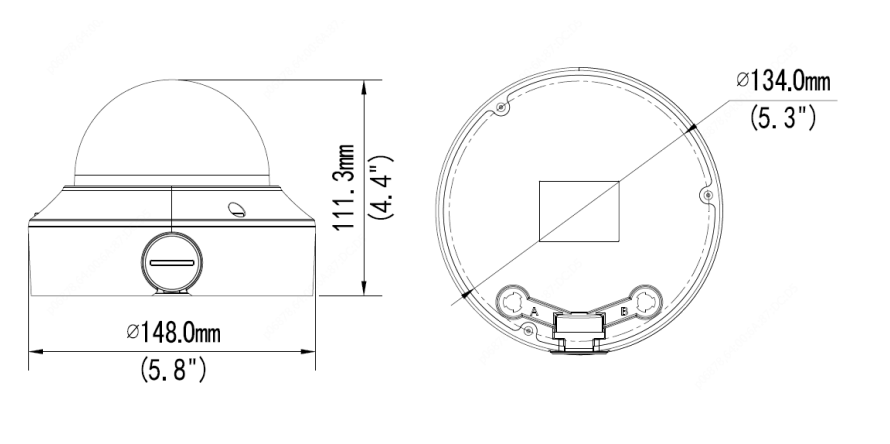

| Dimensions (Ø x H) | Φ148 x 111.3mm(Φ5.8’’ x 4.4’’) | ||||||
| Net Weight | 0.96kg(2.12lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge protection | 6KV | ||||||
IPC3234SA-DZK_Data_Sheet.pdf902.6 kB
