UNV,IPC3614SR3-ADF40KM-G,4MP Eyeball Network Camera(4mm Fixed Lens,30m IR,PoE,H.265,WDR,Build-in mic,SD Card),IPC,0235C53C,Series1,Overseas Version
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
IPC3614SR3-ADF28(40)KM-G
4MP HD IR Fixed Eyeball Network Camera
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
| IPC3614SR3-ADF28KM-G | IPC3614SR3-ADF40KM-G | |||||||||
| Camera | ||||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||||||
| Angle Of View (H) | 101.1° | 83.7° | ||||||||
| Angle Of View (V) | 55.3° | 44.9° | ||||||||
| Angle Of View (O) | 111.1° | 89.2° | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
| Minimum Illumination | Support LightHunter: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR | |||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| S/N | >56dB | |||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||||
| Wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Defog | Digital Defog | |||||||||
| WDR | 120dB | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| 9:16 Corridor Mode | Supported | |||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 4 areas | |||||||||
| ROI | Up to 8 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Supported | |||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
| Dewarping | N/A | |||||||||
| HLC | Supported | |||||||||
| BLC | Supported | |||||||||
| Smart | ||||||||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | |||||||||
| motion detection, tampering alarm, audio detection | ||||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||
| Client | EZStation EZView EZLive | |||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
| Audio | ||||||||||
| Audio Compression | G.711 | |||||||||
| Suppression | Supported | |||||||||
| Sampling Rate | 8KHZ | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||||
| Network Storage | ANR,NAS(NFS) | |||||||||
| Interface | ||||||||||
| Network | 10/100M Base-TX Ethernet | |||||||||
| Built-in Mic | Supported | |||||||||
| Certifications | ||||||||||
| Certifications | UL: UL60950-1 FCC: FCC Part 15 | |||||||||
| General | ||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 6.0W | ||||||||||

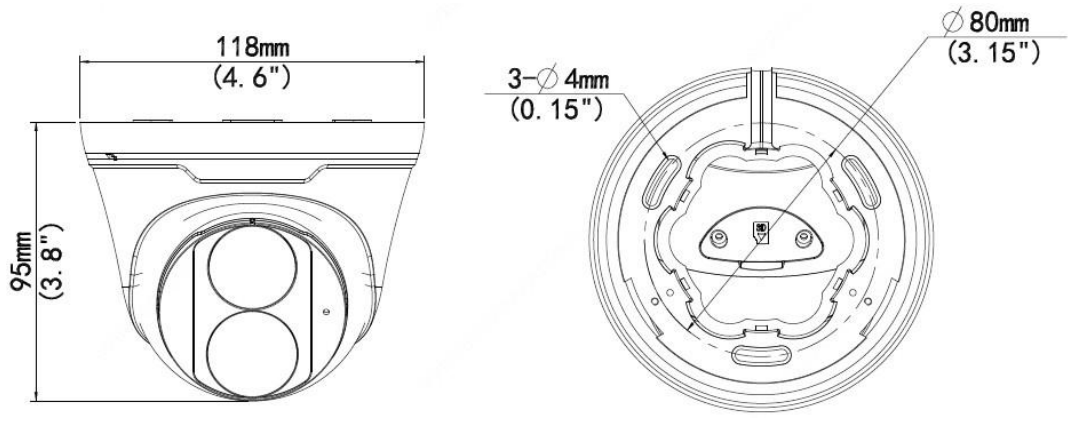

| Dimensions (Ø x H) | Φ118 x 95mm (Φ4.6” x 3.8”) | |||||||||
| Net Weight | 0.35kg (0.77lb) | |||||||||
| Material | Metal | |||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Surge Protection | 2KV | |||||||||
| Ingress Protection | IP67 | |||||||||
| Reset Button | N/A | |||||||||
IPC3614SR3-ADF40K-G.pdf1.2 MB
