IMX-7I780-IRM1/28 4 x 2 Megapixel Outdoor Network IR Bullet Camera, 2.8mm Lens (Panoramic Securit...

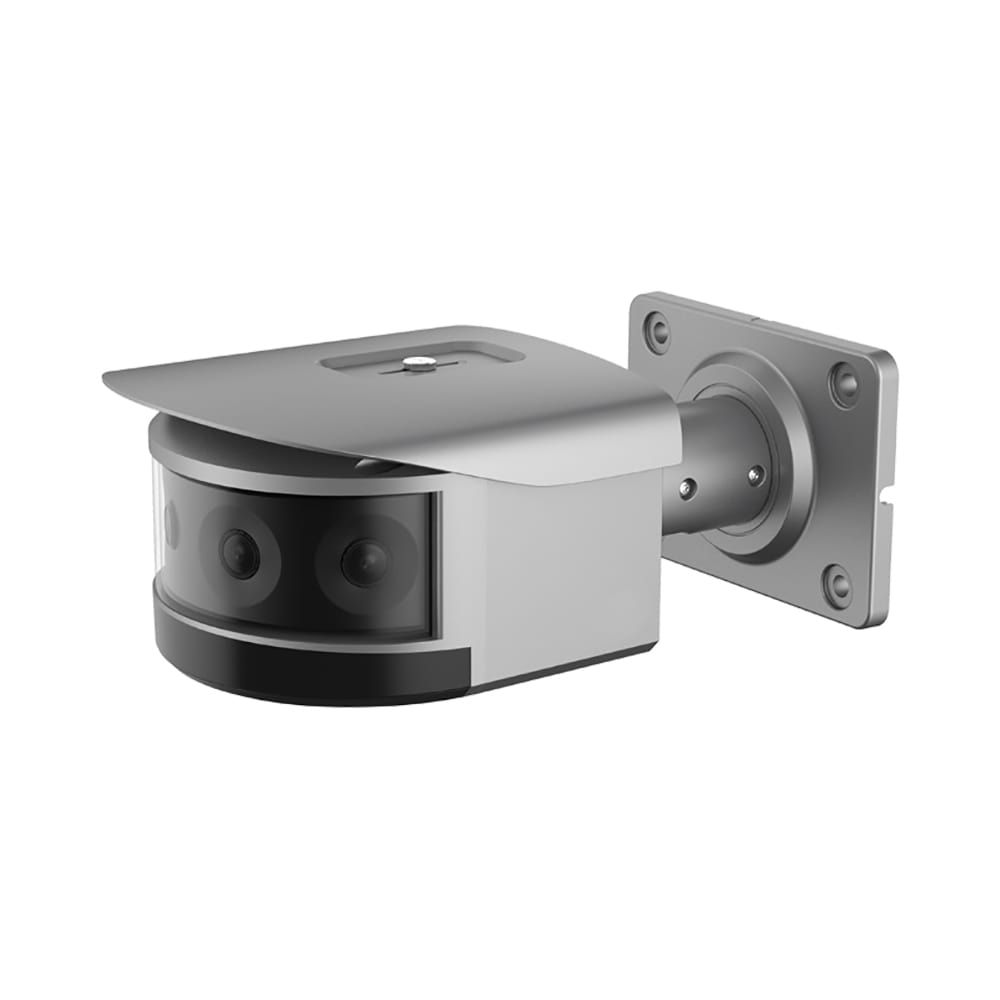

        IMX-7I780-IRM1/28 4 x 2 Megapixel Outdoor Network IR Bullet Camera, 2.8mm Lens (Panoramic Security Camera)

        Uniview
        SKU: IMX-7I780-IRM1/28



        • ·Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image definition
        • · Outputs max. 8MP (4096 × 1800) @30 fps
        • · H.265 codec, high compression rate, ultra-low bit rate
        • · Built-in IR LED, max. IR distance: 30 m (98ft)
        • · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
        • · DWDR, 3D NR, HLC, BLC, digital watermarking
        • · Intelligent functions: Crowd distribution map, Vehicle Density situation
        • · Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
        • · Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card
        • · 12V DC/24V AC/PoE power supply; easy for installation
        • · Supports object tracking
        • · IP67, IK10 protection
        • Panoramic Splicing
        • With advanced splicing algorithm, Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor Security camera can be 180°, and the field of view of eight-sensor camera can be 360°.
        • Crowd Density
        • With deep learning algorithm, Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.
        • Vehicle Density
        • With deep learning algorithm, Vehicle Density technology analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.
        More Information
        Image Sensor1/2.8”4 × 2Megapixel progressive CMOS
        RAM/ROM4GB/2GB
        Electronic ShutterAuto/Manual 1/3 s–1/100,000 s
        Minimum Illumination0.002 Lux @F1.6
        S/N RatioMore than 50dB
        IR LEDs8
        Smart IRSupport
        IR Distance30m (98ft)
        IR On/Off ControlAuto/Manual
        Focal Length2.8mm
        Angle of ViewHorizontal: 180°; Vertical: 90°
        Max. ApertureF1.6
        Close Focus Distance0.6 m (2.0 ft)
        DORI Distance
        Detect(m)Observe(m)Recognize(m)Identify(m)
        38.6 m (126.6 ft)15.4 m (50.5 ft)7.7m (25.3 ft)3.9 m (12.8 ft)
        Pan / Tilt / RotationPan: 0°–355° Tilt: 0°–90° Rotation:0°–360°
        Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
        Streaming Capability3 streams
        Video Resolution4096 × 1800; 3840 × 1680; 2880 × 1264; 1024 × 452; 1920 × 832; 1280 × 560
        Video Frame RateMain stream: 4096 × 1800 (1–25/30 fps) Sub stream: 1024 × 452 (1–25/30 fps) Third stream: 1920 × 832 (1–25/30 fps)
        Video BitrateH.264: 9 kbps–17664 kbps H.265: 9 kbps–17664 kbps
        Day / NightAuto (ICR)/Color/B/W
        Wide Dynamic RangeDWDR
        BLC ModeYes
        HLCYes
        White BalanceAuto/natural/street lamp/outdoor/manual/regional custom
        Gain ControlAuto/Manual
        Motion DetectionOFF/ON (4 areas, rectangular)
        Region of InterestYes (4 areas)
        DefogYes
        Privacy Masking4 areas
        Audio CompressionG.711A; G.711Mu; G.726; AAC; G.723
        Audio In1 channel (RCA port)
        Audio Out1 channel (RCA port)
        Alarm In2 channels in: 5mA 3V–5V DC
        Alarm Out2 channels out: 1,000mA 30V DC/500mA 50V DC
        Intelligent IdentificationVehicle density; parking upper limit; vehicle congestion alarm
        AI Perimeter ProtectionTripwire; intrusion
        Advanced AI FunctionsCrowd map, global people counting; people counting in area
        EthernetRJ-45 (10/100/1000 Base-T)
        Network ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
        RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
        UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE;
        802.1x; SNMP
        Network InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
        Network Max. Users20
        StorageCloud (only supported by the manufacturer's vesion); FTP; SFTP; Micro SD card (support max. 256 G); NAS
        Storage CardMicro SD, up to 256GB
        Web ViewerIE: IE9 and later Chrome: 50 and later Firefox: 48 and later
        Management SoftwareSmart PSS; DSS; DMSS
        MobileiPhone, Android



          • 44% less
          Market price:$4317.30 save $1919.30
        • $2398.00

        OR



        • ·Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image definition
        • · Outputs max. 8MP (4096 × 1800) @30 fps
        • · H.265 codec, high compression rate, ultra-low bit rate
        • · Built-in IR LED, max. IR distance: 30 m (98ft)
        • · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
        • · DWDR, 3D NR, HLC, BLC, digital watermarking
        • · Intelligent functions: Crowd distribution map, Vehicle Density situation
        • · Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
        • · Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card
        • · 12V DC/24V AC/PoE power supply; easy for installation
        • · Supports object tracking
        • · IP67, IK10 protection
        • Panoramic Splicing
        • With advanced splicing algorithm, Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor Security camera can be 180°, and the field of view of eight-sensor camera can be 360°.
        • Crowd Density
        • With deep learning algorithm, Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.
        • Vehicle Density
        • With deep learning algorithm, Vehicle Density technology analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.
        More Information
        Image Sensor1/2.8”4 × 2Megapixel progressive CMOS
        RAM/ROM4GB/2GB
        Electronic ShutterAuto/Manual 1/3 s–1/100,000 s
        Minimum Illumination0.002 Lux @F1.6
        S/N RatioMore than 50dB
        IR LEDs8
        Smart IRSupport
        IR Distance30m (98ft)
        IR On/Off ControlAuto/Manual
        Focal Length2.8mm
        Angle of ViewHorizontal: 180°; Vertical: 90°
        Max. ApertureF1.6
        Close Focus Distance0.6 m (2.0 ft)
        DORI Distance
        Detect(m)Observe(m)Recognize(m)Identify(m)
        38.6 m (126.6 ft)15.4 m (50.5 ft)7.7m (25.3 ft)3.9 m (12.8 ft)
        Pan / Tilt / RotationPan: 0°–355° Tilt: 0°–90° Rotation:0°–360°
        Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
        Streaming Capability3 streams
        Video Resolution4096 × 1800; 3840 × 1680; 2880 × 1264; 1024 × 452; 1920 × 832; 1280 × 560
        Video Frame RateMain stream: 4096 × 1800 (1–25/30 fps) Sub stream: 1024 × 452 (1–25/30 fps) Third stream: 1920 × 832 (1–25/30 fps)
        Video BitrateH.264: 9 kbps–17664 kbps H.265: 9 kbps–17664 kbps
        Day / NightAuto (ICR)/Color/B/W
        Wide Dynamic RangeDWDR
        BLC ModeYes
        HLCYes
        White BalanceAuto/natural/street lamp/outdoor/manual/regional custom
        Gain ControlAuto/Manual
        Motion DetectionOFF/ON (4 areas, rectangular)
        Region of InterestYes (4 areas)
        DefogYes
        Privacy Masking4 areas
        Audio CompressionG.711A; G.711Mu; G.726; AAC; G.723
        Audio In1 channel (RCA port)
        Audio Out1 channel (RCA port)
        Alarm In2 channels in: 5mA 3V–5V DC
        Alarm Out2 channels out: 1,000mA 30V DC/500mA 50V DC
        Intelligent IdentificationVehicle density; parking upper limit; vehicle congestion alarm
        AI Perimeter ProtectionTripwire; intrusion
        Advanced AI FunctionsCrowd map, global people counting; people counting in area
        EthernetRJ-45 (10/100/1000 Base-T)
        Network ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
        RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;
        UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE;
        802.1x; SNMP
        Network InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
        Network Max. Users20
        StorageCloud (only supported by the manufacturer's vesion); FTP; SFTP; Micro SD card (support max. 256 G); NAS
        Storage CardMicro SD, up to 256GB
        Web ViewerIE: IE9 and later Chrome: 50 and later Firefox: 48 and later
        Management SoftwareSmart PSS; DSS; DMSS
        MobileiPhone, Android



          • SKU
            IMX-7I780-IRM1/28
          • Weight
            1 lbs
        • Manufacturer
          Uniview
        • Camera Type
          Bullet
        • Camera Signal
          IP
        • Lens Size
          2.8mm
        • Warranty
          3 Year warranty
        • Remote Login Support
          No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
