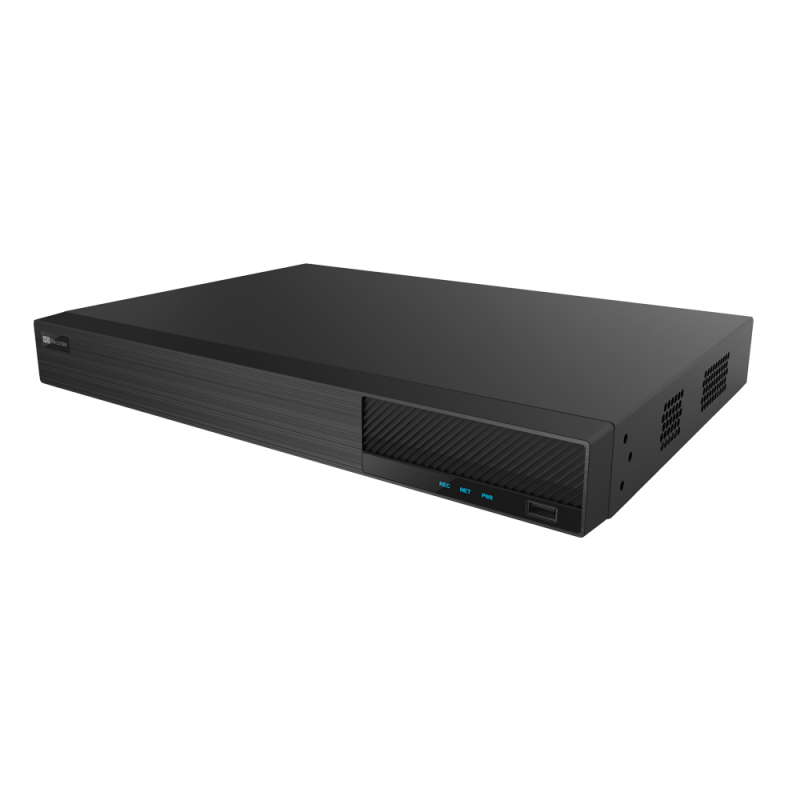

CLEAR- H.265 Clear 4CH 5MP IPC HD NVR

CLEAR
SKU: AMX-ED9304H5NV-4P-L

Features

  • Support 4CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
  • Adopt standard H.265 and H.264 high profile compression format to
    get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
    operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback : 4CH simultaneous playback
  • Search : time slice, time, event ( manual, sensor, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and
    configuration
  • Dual stream technology for local storage with high definition, remote
    network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log view and device status view
  • 1080P HD output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
    • 50% less
    Market price:$225.00 save $112.50
  • $112.50

OR

Features

  • Support 4CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
  • Adopt standard H.265 and H.264 high profile compression format to
    get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
    operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback : 4CH simultaneous playback
  • Search : time slice, time, event ( manual, sensor, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and
    configuration
  • Dual stream technology for local storage with high definition, remote
    network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log view and device status view
  • 1080P HD output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
More Information
System CompressionStandard H.265, H.264
Operating SystemEmbedded Linux
IP Camera Input4CH

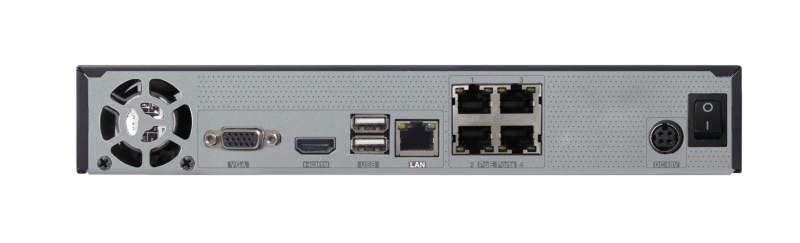

Video Output

HDMI × 1 : 1920×1080/1280×1024/1024×768
VGA × 1 : 1920×1080/1280×1024/1024×768

Audio InN/A
Audio OutN/A
2 Way AudioN/A
Recording Resolution5MP / 4MP / 3MP / 2MP / 1MP / D1 / CIF
Recording ModeManual, timer, motion, sensor
Record StreamDual stream recording
Playback Channels4CH
Playback SearchTime slice / time / event / tag search
Playback Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
Playback FunctionRecord, snap, preset, e-mail, etc.
Alarm ModeSensor, motion, video loss
Alarm InN/A
Alarm OutN/A
Trigger EventsRecord, snap, preset, e-mail, etc.
Computing Capability240 pictures / minute
Database ManagementAdd, modify, delete and search face pictures
Network InterfaceRJ45 10 / 100 Mbps × 1
Incoming Bandwidth28Mbps
Outgoing Bandwidth28Mbps
Network ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Network Max. UsersN/A
PoE PortsN/A
MobileiPhone, Android
RS485N/A
USBUSB 2.0 × 2
Remote ConnectionsOptional
Power Supply48V DC
Power Consumption≤ 6W ( without HDD )
Internal HDD1 x SATA, max 10T per HDD
e-SATAN/A
Operating Conditions-10 ~ 50 ℃,10% ~ 90% humidity
Dimensions255mm x 233mm x 42 mm
    • SKU
      AMX-ED9304H5NV-4P-L
    • Dimensions (L x W x H)
      10.1 x 9.2 x 1.7 inches
  • Manufacturer
    CLEAR
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    4 Channels
  • Recorder Type
    NVR
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
