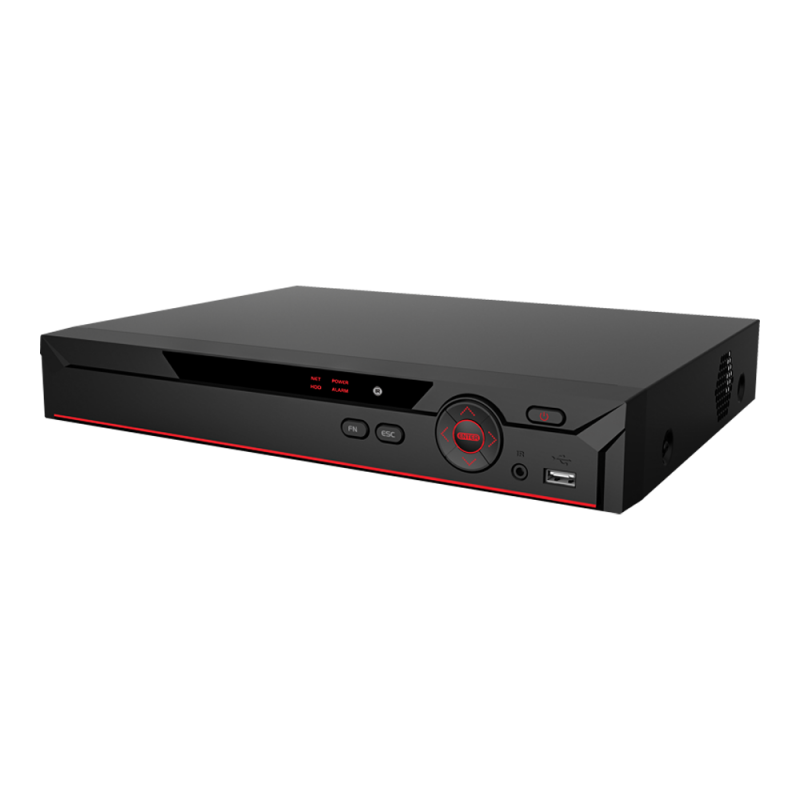

4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

iMaxCamPro
SKU: WECIXVR501H-04-X
  • Embedded processor
  • H.265+/H.265 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 6 channels IP camera inputs, each channel up to 6MP
  • Max. 24Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
    • 27% less
    Market price:$216.00 save $58.00
  • $158.00

OR

The 4-Channel Penta-brid 1080P Mini 1U Digital Video Recorder is a compact and powerful surveillance solution designed for small to medium-sized security systems. It supports up to 4 analog or IP cameras with a maximum resolution of 1080p, providing clear and detailed video footage for surveillance purposes.

This digital video recorder is a Penta-brid recorder, meaning it can support five different types of video signals including HDCVI, AHD, TVI, CVBS, and IP cameras, making it a versatile solution for a wide range of surveillance applications. It also supports H.265+ video compression technology, which can significantly reduce storage and bandwidth usage without compromising video quality.

The 4-Channel Penta-brid 1080P Mini 1U Digital Video Recorder has a user-friendly interface, making it easy to set up and configure your security system. It also supports remote viewing through a web browser or mobile app, enabling you to monitor your security cameras from anywhere with an internet connection.

In addition, this digital video recorder offers various security features, such as password protection and IP address filtering, to ensure your system is secure from unauthorized access. It also supports intelligent video analytics, such as motion detection and tamper detection, which can trigger alerts and notifications when unusual activities are detected.

The 4-Channel Penta-brid 1080P Mini 1U Digital Video Recorder is a compact and powerful solution for small to medium-sized security systems. Its advanced features and capabilities make it an ideal choice for businesses and organizations that require a reliable and cost-effective video surveillance system. With its compact size and easy-to-use interface, it can be easily installed and configured to provide reliable and efficient video surveillance.



  • Embedded processor
  • H.265+/H.265 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 6 channels IP camera inputs, each channel up to 6MP
  • Max. 24Mbps incoming bandwidth
  • Smart Search and Intelligent Video System

System CompressionH.265+/H.265/H.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface1 HDMI, 1 VGA
Video Resolution1920x1080, 1280x1024, 1280x720
Multi-Screen DisplayWhen IP extension mode not enabled: 1/4; When IP extension mode enabled: 1/4/6
HDCVI Camera Input5MP, 4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input4+2 Channel, each channel up to 6MP
OSDYes
Recording Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Recording Frame Rate

Mainstream: 5M-N1~10fps), 4M-N/1080P(1~15fps); 1080P/720P/960H/D1/CIF(1~25/30fps)
Substream: D1/CIF (1~15fps)

Bit Rate32Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Playback Channels1/4
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In1
Audio Out1
2 Way AudioReuse audio in/out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm InN/A
Alarm Relay OutputN/A
Network Interface1 RJ-45 Port (100M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users128
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB Ports (1 USB 2.0, 1 USB 3.0)
RS232N/A
RS422N/A
Power SupplyDC12V/4A
Power Consumption<10W (Without HDD)
Internal HDD1 SATA Port, up to 10TB capacity
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ 131°F), 10%~90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
DimensionsMini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
WeightNet weight 1.0kg (2.2lb) (without HDD); Gross weight 1.9kg (4.2lb)

Spec Sheet

    • SKU
      WECIXVR501H-04-X
    • Weight
      2.2 lbs
  • Manufacturer
    iMaxCamPro
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
