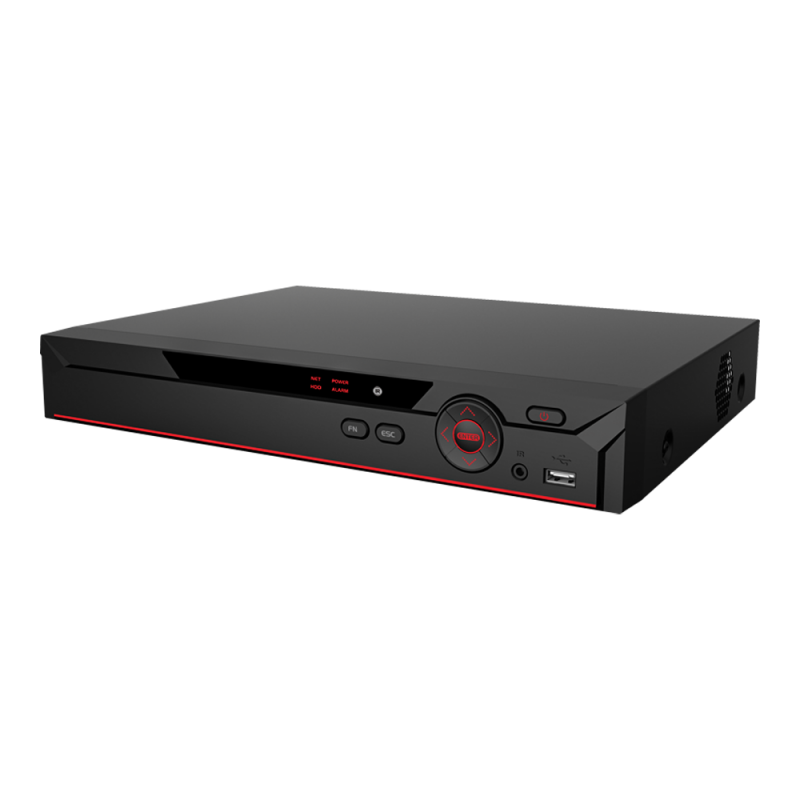

4 Channel Penta-brid 4K Mini 1U Digital Video Recorder
SKU: WECIXVR501H-04-4KL-X
Features
- H.265+/H.265 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max. 6 channels IP camera inputs, each channel up to 8MP
- Max. 24Mbps incoming bandwidth
- Smart Search and Intelligent Video System
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The 4 Channel Penta-brid 4K Mini 1U Digital Video Recorder is a powerful and versatile video recording system that is designed to provide high-quality video surveillance for a wide range of applications. This compact and easy-to-use DVR is equipped with an embedded processor and operates on an embedded Linux operating system, providing reliable and efficient performance.
The DVR supports a range of video compression formats, including H.265+, H.265, H.264+, and H.264, which allows it to capture and store high-quality video footage while minimizing storage requirements. It also supports multiple video interfaces, including one HDMI and one VGA port, which provide flexible video output options.
With HDCVI and IP camera inputs, the DVR can support a variety of cameras, including 4K, 6MP, 4MP, 1080P at 25/30fps, 720P at 50/60fps, and 720P at 25/30fps. It also features OSD support, recording resolution of up to 4K, and recording frame rates of up to 25/30fps, providing clear and detailed video footage.
The DVR offers a range of recording modes, including manual, scheduled, motion detection, and alarm, allowing users to customize their recording settings based on their specific needs. Playback functions include play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, and digital zoom, providing flexible playback options.
Additional features include support for two-way audio, video detection, and diagnosis, as well as network connectivity allowing for remote monitoring and management. The DVR is designed for easy installation and use, with a compact mini 1U form factor that is both space-saving and stylish. Overall, the 4 Channel Penta-brid 4K Mini 1U Digital Video Recorder is an excellent choice for anyone looking for a reliable and versatile video recording system.
Features
- H.265+/H.265 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max. 6 channels IP camera inputs, each channel up to 8MP
- Max. 24Mbps incoming bandwidth
- Smart Search and Intelligent Video System
| System Compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Interface | 1 HDMI, 1 VGA |
| Video Resolution | HDMI:2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Multi-Screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled : 1/4/6 |
| HDCVI Camera Input | 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| IP Camera Input | 4+2 Channel, each channel up to 8MP |
| OSD | Yes |
| Recording Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF |
| Recording Frame Rate | Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps) |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Recording Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Playback Channels | 1/4 |
| Playback Search | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Audio In | 1 |
| Audio Out | 1 |
| 2 Way Audio | Reuse audio in/Out, RCA |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis |
| Alarm In | N/A |
| Alarm Relay Output | N/A |
| Network Interface | 1 RJ-45 Port (100M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Network Max. Users | 128 |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Mobile | iPhone, iPad, Android |
| RS485 | 1 Port, for PTZ Control |
| USB | 2 USB 2.0 |
| RS232 | N/A |
| RS422 | N/A |
| Power Supply | DC12V/2A |
| Power Consumption | <10W (Without HDD) |
| Internal HDD | 1 SATA Port, up to 10TB capacity |
| e-SATA | N/A |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Dimensions | Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
| Weight | Net Weight (without HDD) 1.2kg (2.6 lb) Gross Weight 1.8kg (4.0 lb) |
