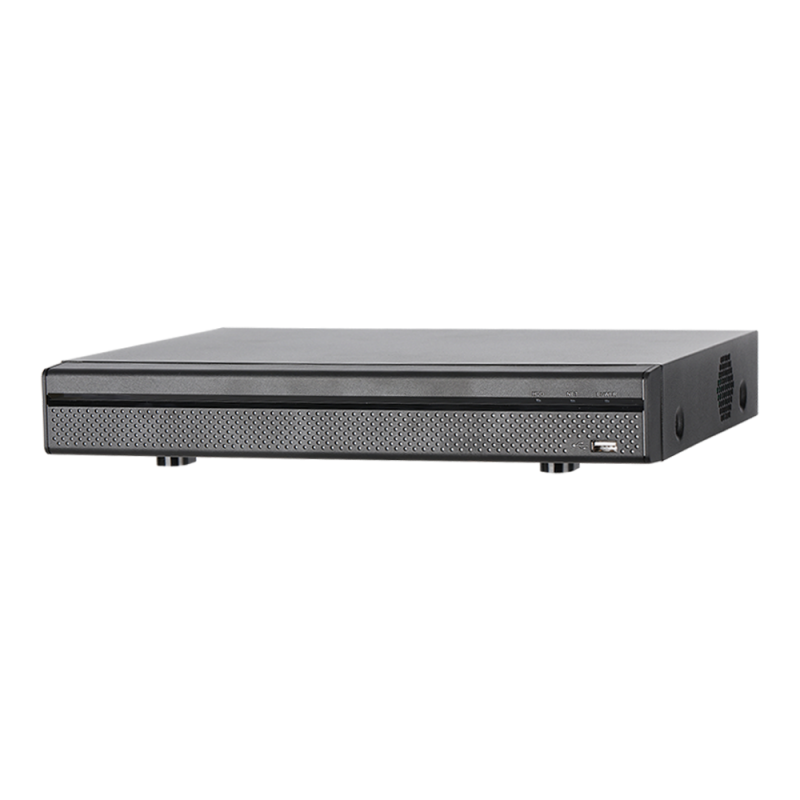

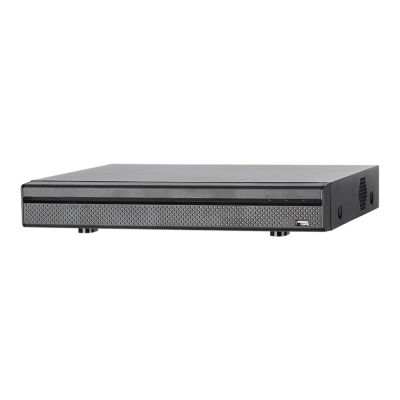

4CH 5-in-1 Analog / AHD / IP / CVI / TVI 4K HD-CVI mini 1U DVR

iMaxCamPro
SKU: WECICP-DVRMN1U4CH004
  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 6 channels IP camera inputs, each channel up to 5MP
  • Max. 24Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
  • $210.00

OR

The 4CH 5-in-1 Analog / AHD / IP / CVI / TVI 4K HD-CVI mini 1U DVR is a state-of-the-art digital video recorder that offers a versatile and comprehensive security solution for both residential and commercial properties. This DVR supports up to 4 channels of analog, AHD, IP, CVI, and TVI video input, making it compatible with a wide range of surveillance cameras. It also supports 4K resolution, providing high-quality video footage for enhanced surveillance and monitoring.

The device comes equipped with a 1U chassis, making it compact and easy to install. It also features a user-friendly interface, which allows for easy configuration and management of the system. Additionally, it offers a variety of advanced features such as motion detection, video loss detection, and alarm notification via email, making it a powerful and reliable security solution.

The DVR can be accessed remotely via mobile devices and web browsers, allowing users to view live or recorded video footage from anywhere in the world. It also supports multiple language options, making it accessible to a global audience.

Overall, the 4CH 5-in-1 Analog / AHD / IP / CVI / TVI 4K HD-CVI mini 1U DVR is an excellent choice for anyone seeking a comprehensive and reliable security solution for their property.



PRODUCT FEATURES

  • Embedded processor
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 6 channels IP camera inputs, each channel up to 5MP
  • Max. 24Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
System CompressionH.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface1 HDMI, 1 VGA
Video Resolution2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768
Multi-Screen Display1/4 (IP extension mode: disabled), 1/4/6 (IP extension mode: enabled)
HDCVI Camera Input4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input4+2 Channel, each channel up to 5MP
OSDYes
Recording Resolution4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Recording Frame Rate

Mainstream: 4MP/3MP (1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)
Substream: 960H (1~12fps); D1/CIF/!CIF (1~25/30fps)

Bit Rate1Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 1~300 sec
Playback Channels1/4
Playback SearchTime/Calendar Search, Event (motion)
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Backup ModeUSB Device/Network
Audio In1CH
Audio Out1CH
2 Way AudioReuse audio in/out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm InN/A
Alarm Relay OutputN/A
Network Interface1 RJ-45 Port (100M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users128
InteroperabilityONVIF 2.42, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB Ports (2 USB 2.0)
RS232N/A
RS422N/A
Power SupplyDC12V/2A
Power Consumption<10W (Without HDD)
Internal HDD1 SATA Port, up to 8TB capacity
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ 131°F), 0~90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
DimensionsMini 1U, 325mm x 255mm x 55mm (12.8" x 10" x 2.2")
Weight1.5kg (3.3lb) (Without HDD)
    • SKU
      WECICP-DVRMN1U4CH004
    • Weight
      3.3 lbs
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
