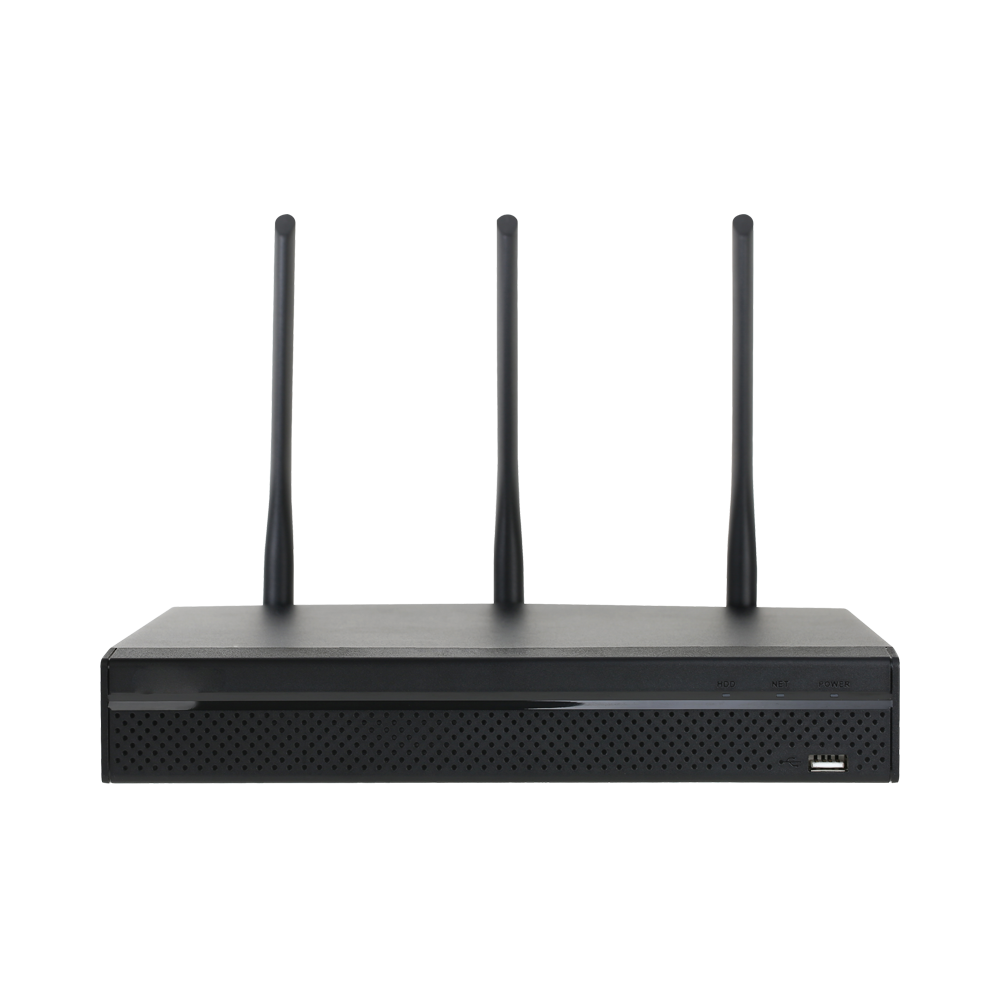

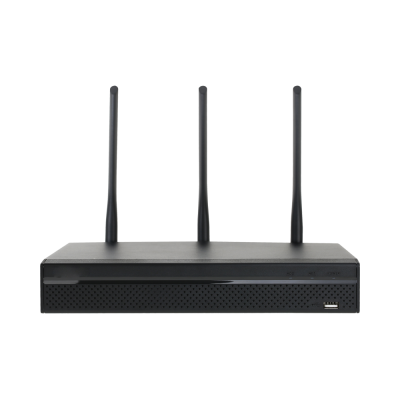

iMaxCamPro NVR301HS-04/W | 4CH Compact 1U WiFi NVR
4 Channel Compact 1U WiFi Network Video Recorder, H.264/MJPEG codec decoding, 1 HDMI, 1 VGA, 1 SATA, 2 USB ports, 4 IP Camera Input, 1 RJ-45, DC12V/2A
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
4 Channel Compact 1U WiFi Network Video Recorder, H.264/MJPEG codec decoding, 1 HDMI, 1 VGA, 1 SATA, 2 USB ports, 4 IP Camera Input, 1 RJ-45, DC12V/2A
PRODUCT FEATURES
- H.264/MJPEG Video Decoding
- Max. 80 Mbps Incoming Bandwidth
- Up to 5 MP Resolution for Preview and Playback
- Simultaneous HDMI/VGA Video Output
- Three-antennas Strengthen the Wi-Fi Signal
- Supports Dual-band 2.4 GHz and 5 GHz Operation
Specification
| System Compression | H.264/MJPEG |
|---|---|
| Main Processor | Dual-core embedded processo |
| Operating System | Embedded Linux |
| Video Output | One (1) HDMI, One (1) VGA |
| Video Resolution | 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
| IP Camera Input | Four (4) Channels |
| Display Split | 1/4 |
| Recording Resolution | 5 MP/ 4 MP/ 3 MP/ 1080p / 1.3 MP / 720p |
| Recording Rate | 80 Mbps |
| Bit Rate | 16 Kbps to 20 Mbps per Channe |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Stop |
| Record Interval | 1 min. to 120 min. (default: 60 min.), Pre-record: 1 s to 30 s Post-record: 10 s to 300 s |
| Audio In | N/A |
| Audio Out | N/A |
| 2 Way Audio | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, and Camera Blank |
| Alarm Relay Output | N/A |
| Playback Channels | 1/4 |
| Playback Search | Time/Date, MD, and Exact Search (accurate to one second), Smart Search |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Performance | Max 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera) |
| Stranger Mode | Detect strangers' faces(not in device's face database). Similarity threshold can be set manually. |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Network Interface | 1 RJ-45 Port (10/100Mbps) |
| PoE Ports | N/A |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Supports Dahua IP Cameras, DVRs, NVS) |
| Network Max. Users | 128 users |
| Mobile | iPhone, Android |
| USB | Two (2) USB 2.0 Ports |
| RS485 | N/A |
| RS232 | N/A |
| Internal HDD | One (1) SATA III Port. Up to 6 TB capacity for each HDD |
| e-SATA | N/A |
| Power Supply | Single, DC12V / 2 A |
| Power Consumption | < 10 W (without HDD) |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 86 to 106 kp |
| Dimensions | 260.0 mm x 246.40 mm x 47.60 mm (10.24 in. x 9.70 in. x 1.87 in.) |
| Weight | 2.0 kg (4.4 lb)(without HDD) |
- ManufactureriMaxCamPro
- Number of Channels4ch
- Recorder TypeNVR
- Network CableI have my own network cables, 50 Feet CAT6 Cable, 100 Feet CAT6 Cable, 150 Feet CAT6 Cable, 200 Feet CAT6 Cable, 300 Feet CAT6 Cable, Cat 5 Cable 1000 feet spool, CAT6 Network Cable 1000 Feet Non UL, Black
- Hard Drive #1I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
- Remote Login SupportNo Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
