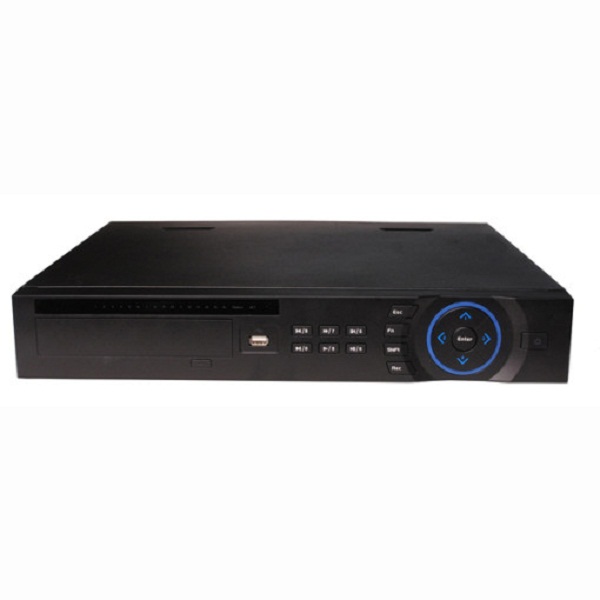

4K 32CH 1.5U NVR, 256Mbps
        • 4K 32CH 1.5U NVR, 256Mbps
        • 4K 32CH 1.5U NVR, 256Mbps

        4K 32CH 1.5U NVR, 256Mbps

        iMaxCamPro
        SKU: NVR304L-32-4K=NVR4432-4K
        Up to 8/16/32 channel IP camera input 265/H.264/MJPEG dual codec decoding Max 256Mbps incoming bandwidth Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view Up to 12Mp resolution live-view&playback 2HDMI/1 VGA simultaneous video output 8/16 channel synchronous realtime playback, GRID interface Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc. ONVIF Version 2.4 conformance 3D intelligent positioning with Dahua PTZ camera Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0), 1 eSATA port Support IPC UPnP Support P2P, QR code scan & add Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)
          • 44% less
          Market price:$1044.00 save $456.00
        • $588.00

        OR
        • Up to 8/16/32 channel IP camera input
        • 265/H.264/MJPEG dual codec decoding
        • Max 256Mbps incoming bandwidth
        • Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view
        • Up to 12Mp resolution live-view&playback
        • 2HDMI/1 VGA simultaneous video output
        • 8/16 channel synchronous realtime playback, GRID interface
        • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
        • ONVIF Version 2.4 conformance
        • 3D intelligent positioning with Dahua PTZ camera
        • Support 4 SATA HDDs up to 24TB, 3 USB(2 USB3.0), 1 eSATA port
        • Support IPC UPnP
        • Support P2P, QR code scan & add
        • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)

        Technical Specifications

        Model

        NVR304L-32-4K

        System

        Main Processor

        Dual-core embedded processor

        Operating System

        Embedded LINUX

        Video& Audio

        IP Camera Input

        32 channel

        Two-way Talk

        1channel Input, 1channel Output, RCA

        Display

        Interface

        2 HDMI , 1 VGA

        Resolution

        3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

        Display Split

        1/4/8/9/16

        OSD

        Camera title, Time, Video loss, Camera lock, Motion detection, Recording

        Recording

        Compression

        H.265/H.264/MJPEG

        Resolution

        12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.

        Record Rate

        192Mbps

        Bit Rate

        1~ 20Mbps

        Record Mode

        Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

        Record Interval

        1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

        Video Detection & Alarm

        Trigger Events

        Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

        Video Detection

        Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

        Alarm Input

        16 channel

        Relay Output

        6 channel

        Playback & Backup

        Playback

        1/4/8/16

        Search Mode

        Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

        Playback Function

        Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

        Backup Mode

        USB Device/Network/Internal SATA burner/eSATA Device

        Network

        Ethernet

        2 RJ-45 port (10/100/1000Mbps)

        1 RJ-45 port (10/100/1000Mbps)(for -16P model)

        Network Function

        HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)

        Max. User Access

        128 users

        Smart Phone

        iPhone, iPad, Android

        Storage

        Internal HDD

        4 SATA III ports, up to 24TB

        External HDD

        1 eSATA port

        Auxiliary Interface

        USB

        3 ports (2 Rear USB3.0, 1 Front USB2.0)

        RS232

        1 port, For PC communication& Keyboard

        RS485

        1 port, For PTZ control

        General

        Power Supply

        Single, AC 100~240V, 50/60 Hz

        Power Consumption

        NVR: 17W for non-PoE model(without HDD), 26.5W for PoE model(without HDD)

        PoE: Max 25.5W for single port(for -16P model) , 150W in total

        Working Environment

        -10°C~+55°C/10%~90%RH/86~106kpa

        Dimension

        (W×D×H)

        1.5U, 440mm×413mm×75mm

        Weight

        4.35KG for non-PoE model(without HDD), 4.65KG for PoE model(without HDD)

        12354549.pdf

          • SKU
            NVR304L-32-4K=NVR4432-4K
          • Weight
            9.59 lbs
        • Manufacturer
          iMaxCamPro
        • Number of Channels
          32ch
        • Recorder Type
          NVR
        • Hard Drive #1
          I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
        • Remote Login Support
          No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
