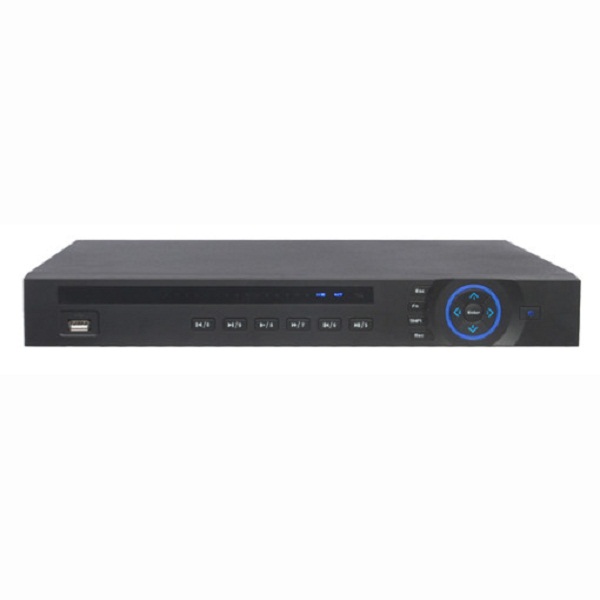

4K 8CH 1U NVR w/8POE 256Mbps

iMaxCamPro
SKU: NVR302A-08/8P-4K=NVR4208-8P-4K
H.265/H.264/MJPEG dual codec decoding Max 256Mbps incoming bandwidth Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view Up to 12Mp resolution preview&playback HDMI/VGA simultaneous video output 8/16 channel synchronous realtime playback, GRID interface Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc. ONVIF Version 2.4 conformance 3D intelligent positioning with Dahua PTZ camera Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0) Support IPC UPnP, 8PoE ports (for -8P model) Support P2P, QR code scan & add Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)
    • 44% less
    Market price:$774.00 save $338.00
  • $436.00

OR
  • Up to 8/16 channel 4K IP camera input
  • H.265/H.264/MJPEG dual codec decoding
  • Max 256Mbps incoming bandwidth
  • Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view
  • Up to 12Mp resolution preview&playback
  • HDMI/VGA simultaneous video output
  • 8/16 channel synchronous realtime playback, GRID interface
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0)
  • Support IPC UPnP, 8PoE ports (for -8P model)
  • Support P2P, QR code scan & add
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)

Model

NVR302A-08/8P-4K

NVR302A-16/8P-4K

System

Main Processor

Dual-core embedded processor

Operating System

Embedded LINUX

Video& Audio

IP Camera Input

8 channel

16 channel

Two-way Talk

1channel Input, 1channel Output, RCA

Display

Interface

1 HDMI , 1 VGA

Resolution

3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

Display Split

1/4/8/9

1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

H.265/H.264/MJPEG

Resolution

12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.

Record Rate

192Mbps

Bit Rate

1~ 20Mbps

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events

Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm Input

8 channel

Relay Output

3 channel

Playback & Backup

Sync Playback

1/4/9

1/4/9/16

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/Network/Internal SATA burner

Network

Ethernet

1 RJ-45 port (10/100/1000Mbps)

PoE

8 ports (IEEE802.3at/af) (for -8P model)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

NVR302A-16/8P-4K

Internal HDD

2 SATA III ports, up to 12TB

Auxiliary Interface

USB

2 ports (1 Rear USB3.0, 1 Front USB2.0)

RS232

1 port, For PC communication& Keyboard

RS485

1 port, For PTZ control

General

Power Supply

Single, DC12V/4A(for normal model)

Single, AC 100~240V, 50/60 Hz(for -8P model)

Power

Consumption

NVR: 8.7W for normal model(without HDD), 15.2W for PoE model(without HDD)

PoE: Max 25.5W for single port(for -8P model), 120W in total

Working

Environment

-10°C~+55°C/10%~90%RH/86~106kpa

Dimension

(W×D×H)

1U, 375mm×275mm×56mm

Weight

1.65KG for normal model(without HDD), 2.65KG for PoE model(without HDD)

DH-NVR4208%204216%204232(-8P)-4K1.pdf

    • SKU
      NVR302A-08/8P-4K=NVR4208-8P-4K
    • Weight
      3.63 lbs
  • Manufacturer
    iMaxCamPro
  • Number of Channels
    4ch
  • Recorder Type
    NVR (with POE Ports)
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
