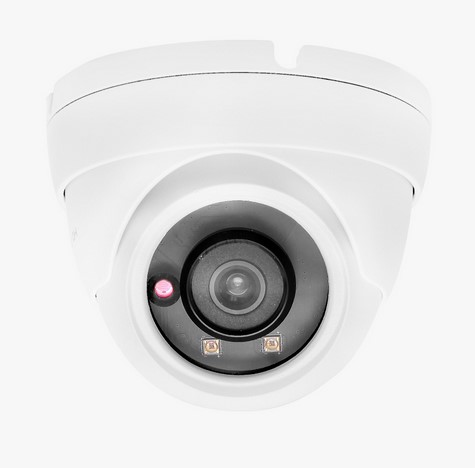

4MP 3.6MM LENS H.265 HD IP IR DOME FIXED CAMERA
        • 4MP 3.6MM LENS H.265 HD IP IR DOME FIXED CAMERA
        • 4MP 3.6MM LENS H.265 HD IP IR DOME FIXED CAMERA

        4MP 3.6MM LENS H.265 HD IP IR DOME FIXED CAMERA

        CLEAR
        SKU: CLEARIP-5IRD4S02-W-3.6

        Features

        • H.265 Compression
        • 1/3″ 4MP CMOS Sensor
        • Effective Pixels: 2592 × 1520
        • 3.6mm Fixed Lens
        • 4MP @ 20fps
        • 2 Super IR
        • 0.05 Lux @ F1.2,AGC ON, 0 Lux with IR
        • DWDR
        • Weatherproof
        • 12V DC / PoE
          • 50% less
          Market price:$204.00 save $102.00
        • $102.00

        OR

        Features

        • H.265 Compression
        • 1/3″ 4MP CMOS Sensor
        • Effective Pixels: 2592 × 1520
        • 3.6mm Fixed Lens
        • 4MP @ 20fps
        • 2 Super IR
        • 0.05 Lux @ F1.2,AGC ON, 0 Lux with IR
        • DWDR
        • Weatherproof
        • 12V DC / PoE
        Image Sensor1 / 3″ CMOS Sensor
        Image Size2688 × 1520
        Electronic Shutter1 / 25 s ~ 1 / 100000 s
        Minimum IlluminationColor: 0.05lux@F1.2, AGC ON,
        B/W: 0lux with IR
        IR On/Off Control2 Matrix IR
        Focal Length3.6mm Fixed Lens
        Angle AdjustmentN/A
        IR Distance66ft (20m)
        Wide Dynamic RangeDWDR
        S/N RatioN/A
        Video CompressionH.265 / H.264 / MJPEG
        Video Resolution4MP (2592 × 1520 ), 2K (2560 × 1440 ), 3MP (2304 × 1296 ), 3MP (2048 × 1536 ), 1080P (1920 × 1080 ), 720P (1280 × 720 ), D1, CIF, 480 × 240
        Video Frame Rate60Hz: 4MP (1 ~ 20fps) / 2K (1 ~ 20fps) / 3MP (1 ~ 30fps) / 1080P (1 ~ 30fps) / 720P (1 ~ 30fps )
        50Hz: 4MP (1 ~ 20fps) / 2K (1 ~ 20fps) / 3MP (1 ~ 25fps) / 1080P (1 ~ 25fps) / 720P (1 ~ 25fps )
        Bit Rate128 Kbps ~ 8 Mbps
        Day / NightICR
        Video EncodeVBR / CBR
        BLC ModeN/A
        HLCN/A
        White BalanceN/A
        ROIEach ROI to be configured separately
        Gain ControlN/A
        Digital Noise Reduction2D / 3D DNR
        DefogN/A
        QualityFive levels under VBR; Freely adjustable under CBR
        Audio CompressionNo
        Audio InNo
        Audio OutNo
        IPC AlarmMotion alarm
        Alarm InNo
        Alarm OutNo
        EthernetRJ45 x 1
        Network ProtocolTCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
        StorageNetwork remote storage
        Storage CardNo
        Web ViewerIE browsing
        Network Max. UsersSupport simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
        MobileiPhone, Android
        IVSVideo exception, line crossing, intrusion, etc.
        Video OutputCVBS video output ( BNC x 1)
        RS485No
        Power SupplyDC 12V / PoE
        Power Consumption< 2.5W (IR Off), < 5W (IR On)
        Operating Temperature-20°C ~ 50°C (-4℉ ~ 122℉), 10 % ~ 90 % humidity
        Ingress ProtectionIP66
        Dimensions3.4″ x 4.3″ (Φ 87 × 108mm)
        Weight0.92Lbs (415g)
